DNP DP-DS620 Driver Users Manual

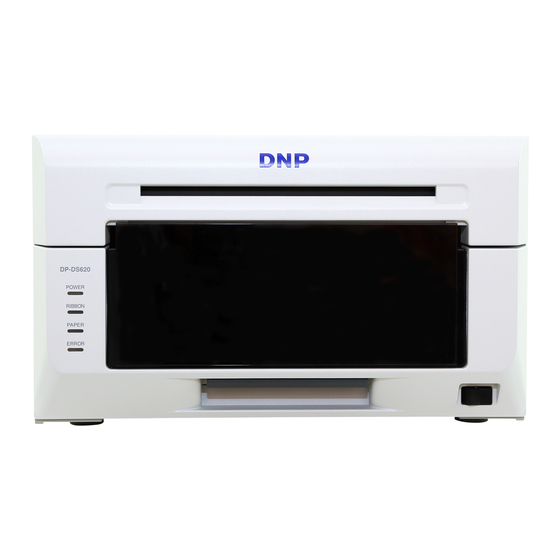

Digital photo printer
Hide thumbs Also See for DP-DS620:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Printer Driver User's Manual
November 20, 2014 Ver. 1.0.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-DS620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DNP DP-DS620

Summary of Contents for DNP DP-DS620

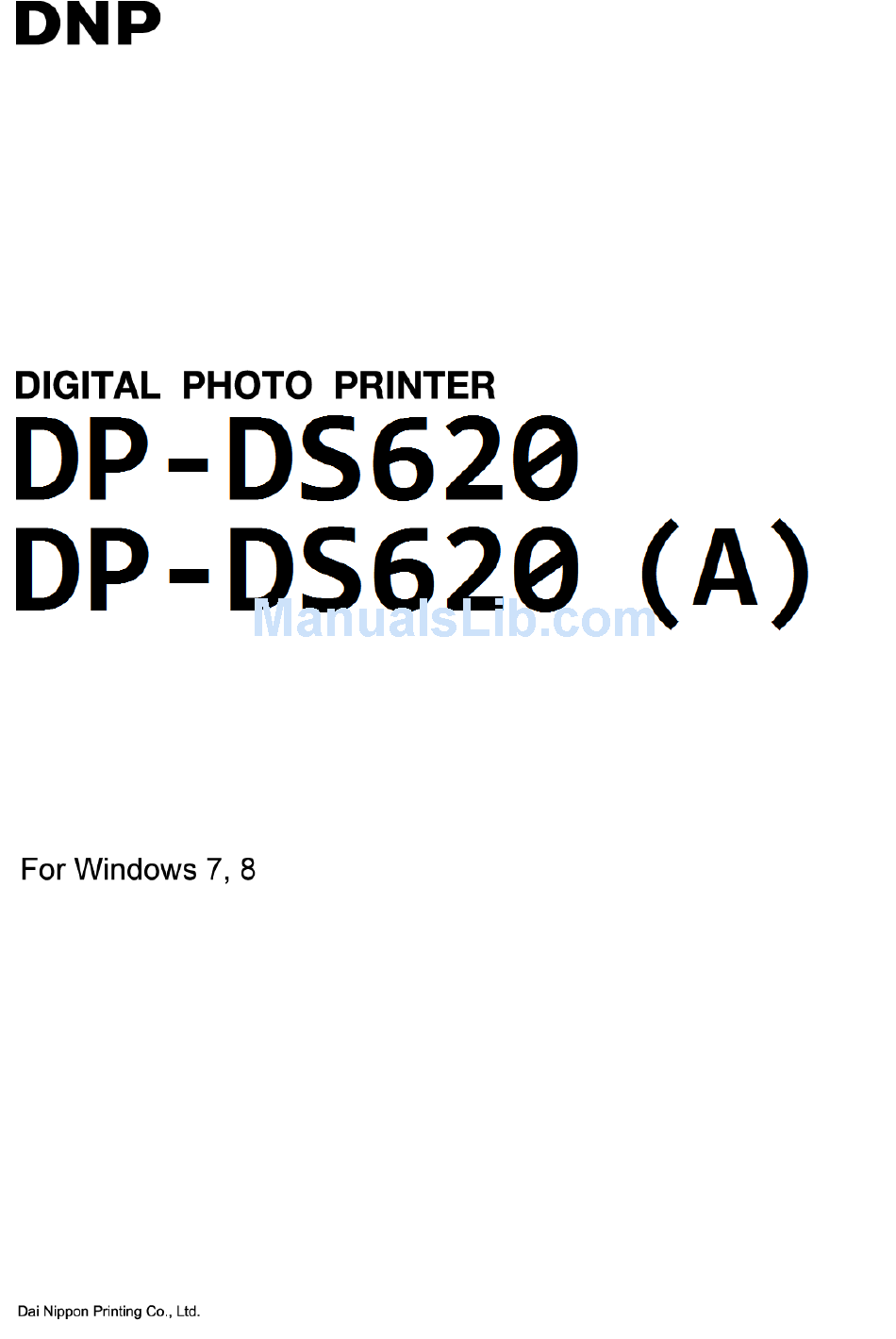

  • Page 1 Printer Driver User's Manual November 20, 2014 Ver. 1.0.0.0...

  • Page 2: Safety Precautions

    User’s manual section related to safety, including usage and safety precautions, was created. ● Modifications For product safety, it is prohibited to modify the DP-DS620/DP-DS620 (A) printer, DP-DS620/DP-DS620 (A) printer driver, and CD contents. ● Copyright The copyrights, trademark rights, and other intellectual property rights related to documents and programs included with this product are the property of Dai Nippon Printing Co., Ltd.

  • Page 3: Table Of Contents

    Table of contents Chapter 1 Installation __________________________________ 1 1.1 Prepare the printer and computer ______________________________________________________________ 2 1.2 Install the driver package _____________________________________________________________________ 2 1.3 Install the printer driver ______________________________________________________________________ 5 1.4 Install drivers for unspecified devices ___________________________________________________________ 9 Chapter 2 Properties _________________________________ 12 2.1 Open the printer properties __________________________________________________________________ 12 2.2 Print settings functions ______________________________________________________________________ 14 2.2.1 Layout _______________________________________________________________________________ 14...

  • Page 4: Chapter 1 Installation

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Installation procedure The installation procedure is made up of three steps. The details of each step are explained below. → Prepare the printer and computer "1.1 Prepare the printer and computer"...

  • Page 5: Prepare The Printer And Computer

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Make sure that the DP-DS620 printer power is off. Prepare a USB cable. However, do not use the USB cable to connect the printer and computer at this time. Log in to Windows as an administrator. The following explanation presumes that the operations are carried out with administrator privileges.
  • Page 6 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) In the selected folder, double click the following file: DriverInstall.CMD. (Depending on your usage environment, the .CMD extension may not be displayed.) The driver package installer appropriate for your operating system (32-bit or 64-bit) is selected automatically.
  • Page 7 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Click "Install (I)" when the Windows Security confirmation display appears. Figure 1.5.i Windows Security confirmation Installation of the driver package starts. Wait until installation finishes. The Completing the Device Driver Installation Wizard screen appears. Click Finish.

  • Page 8: Install The Printer Driver

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Use the USB cable to connect the printer and computer, and then switch on the power of the DP-DS620 printer. After the printer is recognized, installation of the driver starts.
  • Page 9 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) A confirmation dialog box appears. Click Yes. Figure 1.10 Confirmation to skip getting driver software from Windows Update Soon after installation starts, a message appears in the taskbar stating “Your device is ready to use”, and then printer driver installation finishes.
  • Page 10 In Devices and Printers, make sure that “DP-DS620” is present. Note: In Windows 8, when the printer is offline (the printer is not on and connected), the DP-DS620 icon is not displayed. This completes installation of the DP-DS620 printer driver.
  • Page 11 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) When it was not possible to install the DP-DS620 printer driver correctly, the following message appears in the taskbar: Device driver software was not successfully installed. Figure 1.15 Message indicating that the driver was not installed If you click on this message, the Install driver software screen appears and displays the message "Device driver software...

  • Page 12: Install Drivers For Unspecified Devices

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) If you connect a printer that is on to the computer before installing the driver package, a device is created under “Unspecified” in Devices and Printers. In such a case, use the following method to install the printer driver.
  • Page 13 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) The Install a driver for this device screen appears. Click "Apply this fix". The computer searches for a driver automatically, and then installs it. Figure 1.18 Applying a fix If the driver is installed, the message "Troubleshooting has completed" appears. Click "Close the troubleshooter" to close the troubleshooting window.
  • Page 14 In Devices and Printers, make sure that “DP-DS620” is present. Note: In Windows 8, when the printer is offline (the printer is not on and connected), the DP-DS620 icon is not displayed. This completes installation of the DP-DS620 printer driver.

  • Page 15: Chapter 2 Properties

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) You can configure various printer settings from the Properties of the DP-DS620 driver. Make sure you understand the contents well before changing settings. To use the properties, log in as an administrator. Depending on the application you are using, you must perform this operation from the print settings of the application.
  • Page 16 3. Right click the DP-DS620 icon. From the menu, click "Printer Properties" to open the Properties dialog box. Note: In Windows 8, when the printer is offline (the printer is not on and connected), the DP-DS620 icon is not displayed.

  • Page 17: Print Settings Functions

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) If you select the basic settings from the Properties screen, you can change various print settings. 2.2.1 Layout Figure 2.2.1 Layout tab Orientation Set the print orientation to "Portrait" or "Landscape".

  • Page 18: Advanced Options

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 2.2.2 Advanced options If you select "Advanced..." on the Layout tab, you can configure various advanced options. Figure 2.2.2.2 Advanced options tab Figure 2.2.2.1 Advanced settings Paper Size Specify the paper size. Match the paper size with the size of the media set in the printer.
  • Page 19 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Advanced Printing Features Always set Enable. Do not use other settings. Pages per Sheet Layout Set the layout direction of an image when the Pages per Sheet setting is set for multiple divisions.
  • Page 20 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) ＜Multiple layout＞ When 5 x 7 or 6 x 8 media is used, you can use a two-picture layout. You can enable multiple layout settings by setting the paper size of the printer driver. The following section shows the image sizes.
  • Page 21 5 x 7 size media, printing is similarly optimized to reduce consumption of the ribbon. The above operation applies only to the DP-DS620. When (6x4)xN is selected with the DP-DS620 (A), printing is performed the same as for (6x4)x2 without rewinding the ribbon. The same applies for (5x3.5)x2 even if (5x3.5)xN is selected.
  • Page 22 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Step 4. Set the Orientation to Portrait, < Application usage example > and click "Advanced...". This usage example uses Windows Explorer. Step 1. In Windows Explorer, select two or more pictures.

  • Page 23: Paper/Quality

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 2.2.3 Paper/Quality Figure 2.2.3 Paper/Quality tab Color Set Color. Do not use black and white. 2.2.4 Option Fig 2.2.4.1 Option tab Fig 2.2.4.2 Sharpness setting Border Specify a border for printing. (Select the check box for a border.) Synchronized with Border Enable/Disable in the Advanced settings.
  • Page 24 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Sharpness Process sharpness using one of the 11 stages (Figure 2.2.4.2). If the setting is “0 (Default)”, sharpness is not processed. Moving to the minus (-) side blurs the image and moving to the plus (+) side sharpens the image.

  • Page 25: Color Adjustment

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 2.2.5 Color Adjustment If the Handled by Driver check box is selected in the 2.2.4 Option, the adjustment values of the Color Adjustment tab are applied to the image. Fig 2.2.5 Color Adjustment tab The following section shows the setting ranges on the Color Adjustment tab.

  • Page 26: Printer Information

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 2.2.6 Printer information View the printer information. Fig 2.2.6.1 Printer Information tab Figure 2.2.6.2 Display when incorrect media is loaded The following section shows the information displayed in the Printer Info tab.
  • Page 27 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Display item Display details Display icon Display characters Status/Response (Color) Offline The printer cannot be recognized. Connect the printer and computer, and then turn on the power. (Gray) Cooling head The head is being cooled.

  • Page 28: Default Values For Settings

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) The following section shows the default values of the settings (at installation). If the settings have been changed, and the printer driver no longer operates normally, return to the default values shown below.

  • Page 29: Color Management

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Use Color management to specify the color profile. The installer associates " DS620.icc" by default. Step 1. From the Printer Properties, select the Color Management tab, and then click "Color Management...".

  • Page 30: Print Area

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) The following section shows the image sizes and numbers of dots generated by the paper size setting of the driver. Image size Number of image dots (width x height) (width x height)

  • Page 31: Orientation

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) The following chart shows the relationship of images generated by an application and printed items (output direction) according to the orientation setting. Generated images are not the original image rotated by the application but are zoomed to fit within the sizes is shown in "2.5 Print Area".

  • Page 32: Chapter 3 Update The Driver

    Note: In Windows 8, when the printer is offline (the printer is not on and connected), the DP-DS620 icon is not displayed. If you cannot connect a printer that is on, use the procedure on the following page to delete the device.
  • Page 33 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) In Windows 8, when the printer is offline (the printer is not on and connected), the DP-DS620 icon is not displayed. In such cases, use the following procedure to delete the device.
  • Page 34 3) The printer deletion confirmation dialog box appears. Click Yes. Figure 3.3 Printer deletion confirmation dialog box 4) After deleting the DP-DS620 printer, select another printer (for example, Fax), and then click "Print Server Properties" in the menu bar. Figure 3.4 Displaying the Print Server Properties menu in the Devices and Printers screen...
  • Page 35 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 5) The Print Server Properties dialog box appears. Click the Drivers tab. From the installed printer driver list, select DP-DS620, and then click "Remove...". Figure 3.5 Printer Server Properties dialog box 6) The Remove Driver and Package dialog box appears.
  • Page 36 7) The Print Server Properties confirmation dialog box appears. Click Yes. Figure 3.7 Driver deletion confirmation dialog box 8) In the Print Server Properties dialog box, confirm that DP-DS620 was deleted, and then click Close. After deleting the printer driver, uninstall the driver package.
  • Page 37 Figure 3.9 Control Panel 2) The Uninstall or change a program screen appears. In the list, double click “Windows driver package – Dai Nippon Printing DP-DS620 (mm/dd/yyyy x.x.x.x)”. (mm/dd/yyyy is the date, x.x.x.x is the version.) Figure 3.10 Uninstall a program...
  • Page 38 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) 3) The Uninstall Driver Package screen appears. Click Yes. The program has been uninstalled. After uninstalling the printer package, restart the computer. Figure 3.11 Uninstallation confirmation 3. Install an upgrade for the printer driver After deleting the printer and the printer driver, install the new printer driver.

  • Page 39: Chapter 4 Delete The Driver

    [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) For the procedure to delete the printer driver, see Chapter 3, “1. Delete the driver” and “2. Uninstall the driver package”. Dai Nippon Printing Co., Ltd.
  • Page 40 [DP-DS620/DP-DS620 (A) Printer Driver] User’s Manual (For Windows 7, 8) Dai Nippon Printing Co., Ltd.
