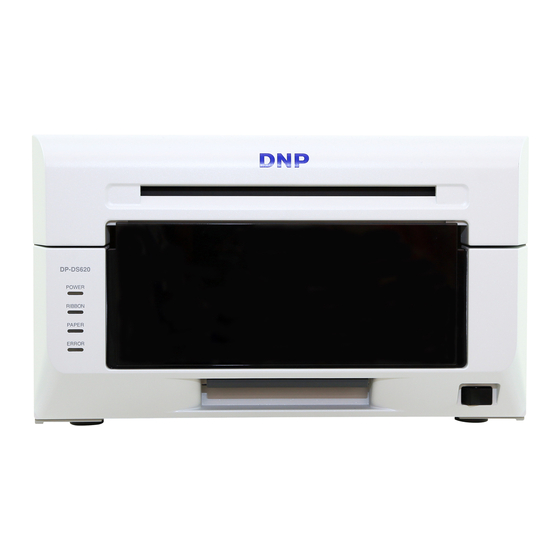

DNP DP-DS620 User Manual

Digital photo printer
Hide thumbs Also See for DP-DS620:
Table of Contents

Advertisement

Quick Links

See also: User Manual
DIGITAL PHOTO PRINTER
DP-DS620
DP-DS620 ( A )
User's Manual
©2014 Dai Nippon Printing Co., Ltd.
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-DS620 and is the answer not in the manual?

Questions and answers

Related Manuals for DNP DP-DS620

Summary of Contents for DNP DP-DS620

  • Page 1 DIGITAL PHOTO PRINTER DP-DS620 DP-DS620 ( A ) User’s Manual Version 1.00 ©2014 Dai Nippon Printing Co., Ltd.
  • Page 2 This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Dai Nippon Printing Co.,Ltd. hereby declares that this DP-DS620 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 3 Alulírott, Dai Nippon Printing Co.,Ltd. nyilatkozom, hogy a(z) DP-DS620 megfelel a vonatkozó alapvetQ követelményeknek és az 1999/5/EC irányelv egyéb elQírásainak. italiano Con la presente Dai Nippon Printing Co.,Ltd. dichiara che questo DP-DS620 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. norsk Dai Nippon Printing Co.,Ltd.

  • Page 4: Table Of Contents

    Co�, Ltd�, or the respective other holders of rights� Except in cases permitted by applicable laws, these may not be duplicated or used without consent from Dai Nippon Printing Co�, Ltd� About the product destination You cannot resale/use the DP-DS620 without destination number (A) in the U�S� - 4 -...

  • Page 5: Introduction

    Introduction Thank you for purchasing this product� This document explains how to handle and operate this product� Please read this document carefully before use� Be sure to read “For Safe Operation” (P�5-7), and operate the product correctly� For Safe Operation Be sure to read this document before using the product�...
  • Page 6 For Safe Operation Warning • This unit has no power switch� When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit� If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug�...
  • Page 7 For Safe Operation Caution • Do not install the product in dusty or humid places. This may cause fire or an electric shock, or damage the product� • Do not install the product on an unstable surface� It may fall and cause injury to the user or other people�...

  • Page 8: Caution For Installation

    Caution for installation • Before using the product, read “For Safe Operation” carefully and observe the instructions therein� • Use care when moving the product� Never try to carry the product alone� Dropping it may cause injury or property damage� •...

  • Page 9: Regulatory Compliance Statements

    Regulatory compliance statements For the Customer in USA FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 10: Printer Installation

    Remove the wrapping before using them� Paper tray Power cord L size spacer (for L and PC sizes) DIGITAL PHOTO PRINTER DP-DS620 DP-DS620 ( A ) For Safe Operation English Start-up Guide Sicherheitshinweise Deutsch Leitfaden zur Inbetriebnahme Pour un fonctionnement sans risque français...

  • Page 11: Name Of Components

    Printer Installation Name of components Front of the unit Paper output Standby LEDs Scrap box ON/Standby switch Opening lever Back of the unit Vent USB port Power inlet Side of the unit Vent Caution • Be careful not to hurt yourself or damage anything on the edges of the printer� - 11 -...

  • Page 12: Connecting The Power Cord And A Computer

    Printer Installation Connecting the power cord and a computer Make sure that the ON/Standby switch of the printer unit is set to Standby� Standby ON/Standby Make sure that the power switch of the switch computer is set to OFF� Plug the connector of the power cord (supplied) into the printer power inlet�...

  • Page 13: Paper And Ribbon

    Printer Installation Paper and ribbon Prepare the media (paper, ribbon) with the following widths� Ribbon Paper Ribbon cassette Size Paper Ribbon (Ribbon cassette) L , 2L 127 mm in width 134 mm in width PC , A5 152 mm in width 159 mm in width Caution •...

  • Page 14: Setting The Media (Paper, Ribbon)

    Printer Installation Setting the media (paper, ribbon) Use the opening lever to open the lock, and then pull out the mechanism unit� Opening lever Lift the paper lever and raise the front cover� Paper Lever Front cover Hold the center of the scrap box and lift it up straight�...
  • Page 15 Printer Installation Remove the paper holder from the printer� Remove the old paper roll from the paper holder, and then set the new paper roll ensuring there are no gaps� If the paper protrudes, remove the roll from the paper holder and set the edge face of paper flat.
  • Page 16 Printer Installation While pressing the paper holder, rotate the paper in the direction of the arrow and advance the leading edge until the buzzer beeps� The flashing LED (orange) turns off. Set the scrap box and close the front cover� Remove the ribbon cassette from the printer unit�...
  • Page 17 Printer Installation Install the ribbon cassette to the printer unit� Install the cassette here� Set the cassette so that the supply side is at the front� Close the mechanism unit� When the mechanism unit is closed, the printer starts paper initialization� (Five blank sheets are output�) Paper initialization cuts off the outer layer of the paper that may be dirty�...

  • Page 18: Paper Tray Installation

    Printer Installation Paper tray installation You may install the paper tray when using L or PC size paper rolls� Up to 50 sheets can be stored, however it is recommended to remove the sheets regularly� Attach the paper tray to the scrap box� Insert the tray horizontally.

  • Page 19: Disposing Of Paper Scrap

    Printer Installation Disposing of paper scrap Paper scraps generated when the paper is cut are collected in the scrap box� Be sure to empty the scrap box when replacing the paper� Release the opening lever, and pull out the mechanism unit� Lift the paper lever and raise the front cover�...

  • Page 20: Troubleshooting

    Troubleshooting Error display The LEDs condition (lit, flashing, off) indicates the product status. lit, flashing, off� LED display Status Condition Refer to POWER RIBBON Paper end Set a new roll of paper� P�14 PAPER ERROR POWER RIBBON Ribbon end Set a new ribbon� P�14 PAPER ERROR...

  • Page 21: Solving Errors

    Troubleshooting Solving errors Release the opening lever, and pull out the mechanism unit� Remove the ribbon cassette front the printer unit� Perform the action corresponding to the error� “The printer is jammed with paper” (see this page), “The ribbon is caught in the printer” (see P�22), “The printer stopped with the paper partially cut”...

  • Page 22: The Ribbon Is Caught In The Printer

    Troubleshooting The ribbon is caught in the printer Pull out the ribbon� Cut the ribbon� Remove the ribbon that remains in the printer unit carefully� Any pieces of ribbon left inside the printer may affect the print quality� In such cases, clean the platen roller�...

  • Page 23: The Printer Stopped With The Paper Partially Cut

    Troubleshooting The printer stopped with the paper partially cut Set the ON/Standby switch to Standby and then ON again� The paper jam is released and the cutter blade returns to its standby position� • If you cannot release the paper, contact a service representative� Remove the partially printed part of paper from the printer�...

  • Page 24: Cleaning

    Cleaning Platen roller If indents appear at the same places on the printout at a regular interval (approximately every 50 mm), or if the back of the printout (white side) is dirty, clean the platen roller� There may be dust, dirt, adhesive, etc� from the ribbon or paper on the platen roller� Prepare a piece of gauze or other soft cloth Platen roller moistened with ethyl alcohol�...

  • Page 25: Specifications

    Specifications Print method Thermal dye sublimation transfer Standard 11�8 × 11�8 dot/mm (300 × 300 dpi) Resolution 11�8 × 23�6 dot/mm (300 × 600 dpi) High quality 23�6 × 23�6 dot/mm (600 × 600 dpi) L ( 3�5×5 ) 89 mm × 127 mm PC ( 6×4 ) 101 mm ×...
