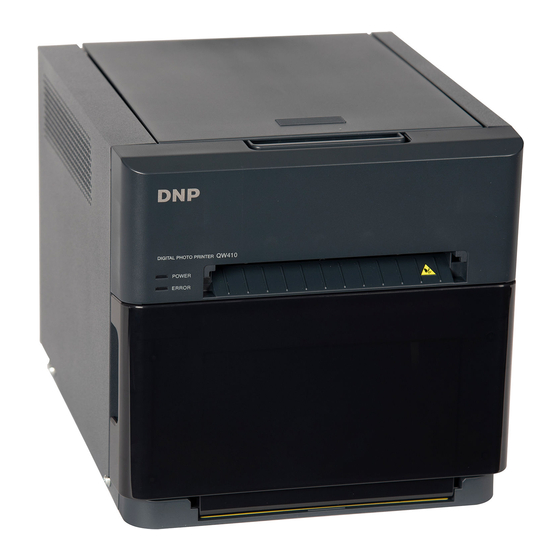

DIGITAL PHOTO PRINTER
DP-QW410
Version 1.0.1.2
Printer Driver Instruction Manual
Supported OS: Windows 11
2023071801
©2023 Dai Nippon Printing Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-QW410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DNP DP-QW410

Summary of Contents for DNP DP-QW410

  • Page 1 DIGITAL PHOTO PRINTER DP-QW410 Version 1.0.1.2 Printer Driver Instruction Manual Supported OS: Windows 11 2023071801 ©2023 Dai Nippon Printing Co., Ltd.
  • Page 2 Be aware that the content complies with the standards at the time the User Guide section related to safety, including usage and safety precautions, was created. ● Modifications To ensure product safety, modification of the DP-QW410 printer and DP-QW410 printer driver is prohibited. ● Copyright The copyrights, trademark rights, and other intellectual property rights related to documents and programs included with this product are the property of Dai Nippon Printing Co., Ltd.

  • Page 3: Table Of Contents

    Table of contents Chapter 1 Installation ______________________________ 1 1.1 Prepare the printer and computer _________________________________________________________ 2 1.2 Install the driver package________________________________________________________________ 2 1.3 Install the printer driver _________________________________________________________________ 6 1.4 Install drivers for unspecified devices ______________________________________________________ 7 Chapter 2 Properties _______________________________ 9 2.1 Open the printer properties ______________________________________________________________ 9 2.2 Print settings functions ________________________________________________________________ 11 2.2.1 Layout _________________________________________________________________________ 11...

  • Page 4: Chapter 1 Installation

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Chapter 1 Installation Installation procedure The installation procedure is made up of three steps. The details of each step are explained below. Step 1 Prepare the printer and computer → “1.1 Prepare the printer and computer”...

  • Page 5: Prepare The Printer And Computer

    Driver package folder\DP-QW410_Driver Figure 1.2.1 Driver Package folder NOTE: You must UNINSTALL the previous DNP printer driver PRIOR to installing the DNP v1.0.1.2 or later version Windows11 driver, especially when the PC has been upgraded from Windows 10 to Windows 11.
  • Page 6 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) In the selected folder, double click the following file: DriverInstall.CMD. (Depending on your usage environment, the .CMD extension may not be displayed.) Figure 1.2.2 Installation file When you start the installer, a window appears for selecting the language that will be used during the installation.
  • Page 7 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Click “Install” when the installation is ready. Figure 1.2.5 Installation start confirmation screen When the installation starts, a screen appears that shows the installation status. Figure 1.2.6 Installation status screen...
  • Page 8 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) When a User Account Control dialog box appears, click “Yes”. Figure 1.2.7 User Account Control Click “Install” when the Windows Security confirmation display appears. Figure 1.2.8 Windows Security confirmation Installation of the driver package starts. Wait until installation finishes.

  • Page 9: Install The Printer Driver

    Click “Start”, select “Settings” -> “Bluetooth & devices”, and then open “Printers & scanners”. Figure 1.3.1 Bluetooth & devices On the Printers & scanners screen, check that DP-QW410 appears. This completes installation of the printer driver. Figure 1.3.2 Printers & scanners...

  • Page 10: Install Drivers For Unspecified Devices

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 1.4 Install drivers for unspecified devices If the printer does not appear on the Printers & scanners screen, select “Devices” on the “Bluetooth & devices” screen. Select “More devices and printer settings” on the “Devices” screen to open the “Devices and Printers”...
  • Page 11 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 1. Right-click “Dai Nippon Printing DP-QW410” of the “Unspecified” device in “Devices and Printers”, and click “Remove device” from the pull-down menu. Figure 1.4.2 Delete “Photo Printer” 2. Disconnect the USB cable connected to the printer.

  • Page 12: Chapter 2 Properties

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Chapter 2 Properties You can configure various printer settings from the Properties of the driver. Make sure you understand the contents well before changing settings. To use the properties, log in as an administrator.
  • Page 13 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 3. Click “DP-QW410”, and then select “Printer properties” to open the Properties screen. 4. The DP-QW410 Properties screen appears.

  • Page 14: Print Settings Functions

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.2 Print settings functions If you select the basic settings from the Properties screen, you can change various print settings. 2.2.1 Layout Figure 2.2.1 Layout tab Orientation Set the print orientation to “Portrait” or “Landscape”.

  • Page 15: Advanced Options

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.2.2 Advanced options If you select “Advanced...” on the Layout tab, you can configure various advanced options. Figure 2.2.2.2 Advanced options tab Figure 2.2.2.1 Advanced settings Paper/Output Paper Size Specify the paper size. The paper size that can be specified depends on the media size that is loaded in the printer.
  • Page 16 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Copy Count You can specify the number of copies to be published for images. Graphic ICM Method ICM Method Function ICM Disabled Synchronized with “Color Adjustment Disabled” in the 2.2.4 Option. ICM Handled by Host System Synchronized with “Color Adjustment ICM”...
  • Page 17 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Print Re-try Specify whether to print data in the printer buffer after a printer error has been cleared. Print Re-try Function Disable Clear the print data in the printer buffer when a printer error occurs.
  • Page 18 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2inch cut Specify whether to cut paper into multiple sheets with a 2-inch length when you use a specified paper size. 2inch cut Function Disable Cut at the normal size. Enable Cut at 2-inch lengths so that the 4x4 size becomes two sheets , the 4x6, 4.5x6 size becomes three sheets and the 4.5x8 size becomes...
  • Page 19 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) ＜Multiple layout＞ You can enable multiple layout settings by setting the paper size of the printer driver. If it sends multiple images from the application, the printer driver allocate them automatically as the multiple layout.
  • Page 20 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) < Application usage example > This usage example uses Windows Explorer. Step 5. Set the Orientation to “Portrait”, and click “Advanced...”. Step 1. In Windows Explorer, select two or more pictures. Next, click “Show more options”.

  • Page 21: Paper/Quality

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.2.3 Paper/Quality Figure 2.2.3 Paper/Quality tab Color Set Color. Do not use black and white. 2.2.4 Option Figure 2.2.4.1 Option tab Figure 2.2.4.2 Sharpness setting Border Specify a border for printing. (Select the check box for a border.) Synchronized with Border Enable/Disable in the Advanced settings.
  • Page 22 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Color Adjustment None Synchronized with the ICM Method in the Advanced settings. If this check box is selected, ICM is disabled, the Color adjustment tab is also disabled, and the printer driver does not carry out color adjustment.

  • Page 23: Color Adjustment

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.2.5 Color Adjustment If the Handled by Driver check box is selected in the 2.2.4 Option, the adjustment values of the Color Adjustment tab are applied to the image. Figure 2.2.5 Color Adjustment tab The following section shows the setting ranges on the Color Adjustment tab.

  • Page 24: Printer Information

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.2.6 Printer information View the printer information. Figure 2.2.6.1 Printer Information tab Figure 2.2.6.2 Display when incorrect media is loaded The following section shows the information displayed in the Printer Info tab.
  • Page 25 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Display item Display details Printer Status Display icon Display Status/Response (Color) characters Offline The printer cannot be recognized. Connect the printer and computer, and then turn on the power. (Gray) Cooling head The head is being cooled.

  • Page 26: Default Values For Settings

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.3 Default values for settings The following section shows the default values of the settings (at installation). If the settings have been changed, and the printer driver no longer operates normally, return to the default values shown below.

  • Page 27: Color Management

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.4 Color management SD_QW410-xxxx.icc Use Color management to specify the color profile. The installer associates “ ” PD_QW410-xxxx.icc and “ ” by default. This printer driver automatically changes the printer color profile in accordance with the media that is loaded in the printer.

  • Page 28: Print Area

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.5 Print Area The following section shows the image sizes and numbers of dots generated by the paper size setting of the driver. Image size Number of image dots Print Paper size...

  • Page 29: Orientation

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 2.6 Orientation The following chart shows the relationship of images generated by an application and printed items (output direction) according to the orientation setting. Generated images are not the original image 2.5 Print Area rotated by the application but are zoomed to fit within the sizes is shown in “...

  • Page 30: Chapter 3 Update The Driver

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Chapter 3 Update the driver As when performing the installation, log in as an administrator before carrying out this operation. 1. Check the job 1) Before updating the printer driver, close all applications. Furthermore, click on the printer to be deleted on the “Printers &...
  • Page 31 1) Right click “Start”, and then select “Installed apps”. Figure 3.2 Screen when the Start button is right clicked 2) Click the menu display button of “Dai Nippon Printing DP-QW410” in the list of apps, and then select “Uninstall”. Figure 3.3 Uninstall a program...
  • Page 32 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) When the “This app and its related info will be uninstalled.” message appears, click “Uninstall”. Figure 3.4 Uninstallation confirmation screen If the User Account Control dialog box appears, click “Yes”. Figure 3.5 User Account Control 3) The “Uninstall Driver Package”...

  • Page 33: Chapter 4 Delete The Driver

    [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) Chapter 4 Delete the driver 4.1 Automatic deletion of printer drivers The printer driver is automatically deleted when uninstalling the driver package. For the steps to uninstall the driver package, see “2. Uninstall the driver package” in Chapter 3.

  • Page 34: Manual Deletion Of Printer Drivers

    1) Click “Start”, select “Settings” -> “Bluetooth & devices”, and then open “Printers & scanners”. Figure 4.2.1 Bluetooth & devices 2) From the “Printers & scanners” screen, select DP-QW410, and then click “Remove”. Figure 4.2.2 Screen when DP-QW410 is selected and Remove is clicked...
  • Page 35 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) If the printer is on but not connected, the DP-QW410 icon is not displayed. In such cases, use the following procedure to delete the device. (i) Right click “Start”, and then select “Device Manager”.
  • Page 36 3) The printer deletion confirmation dialog box appears. Click “Yes”. Figure 4.2.3 Printer deletion confirmation dialog box 4) After removing the DP-QW410 printer, click “Print server properties” in “Printers & scanners”. Figure 4.2.4 Screen when Print server properties is clicked on the Printers & scanners screen...
  • Page 37 [DP-QW410 Printer Driver] Instruction Manual (For Windows 11) 5) The “Print Server Properties” dialog box appears. Click the “Drivers” tab. From the installed printer driver list, select “DP-QW410”, and then click “Remove...”. Figure 4.2.5 Printer Server Properties dialog box 6) The Remove Driver And Package dialog box appears. Select “Remove driver only”, and then click “OK”.
  • Page 38 Disconnect the USB cable and then restart your computer and try deleting the printer driver again. Fig 4.2.7.i Driver in use 8) In the Print Server Properties dialog box, confirm that DP-QW410 was deleted, and then click “Close”. Figure 4.2.8 Print Server Properties...
  • Page 39 MEMO...
