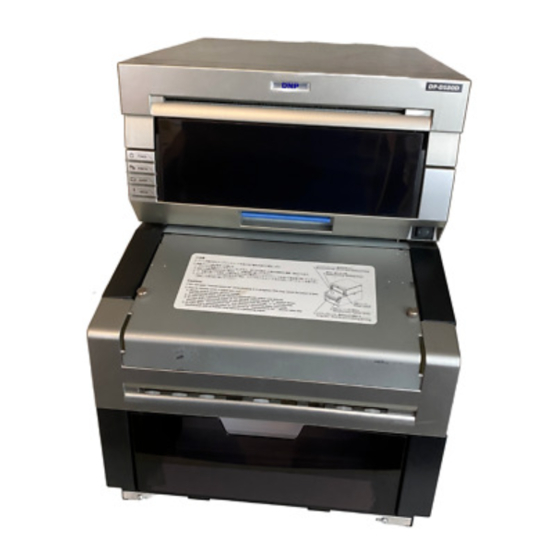

Dnp dp-ds80d digital photo printer
Hide thumbs Also See for DP-DS80D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, User Manual
DNP
DIGITAL PHOTO PRINTER
DP-DS80D
Printer Driver Instruction Manual
For Windows XP
January 5, 2015 Ver.1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-DS80D and is the answer not in the manual?

Questions and answers

Related Manuals for DNP DP-DS80D

Summary of Contents for DNP DP-DS80D

  • Page 1 DIGITAL PHOTO PRINTER DP-DS80D Printer Driver Instruction Manual For Windows XP January 5, 2015 Ver.1.01...
  • Page 2 User ’s Manual has been created. ●Remodeling For product safety, do not remodel the DP-DS80D printers or the contents of the DP-DS80D printer drivers and the CD. ●Copyright Copyrights, trademarks or any other intellectual property rights whatsoever that pertain to documents, programs or other items provided with this product, are ascribed to Dai Nippon Printing Co., Ltd., or the respective other...

  • Page 3: Table Of Contents

    Chapter 1 Install ______________________________________ 1 1.1 Printer and Host computer Connection __________________________________________ 1 1.2 Found New Hardware Wizard __________________________________________________ 1 1.3 Install from Add Printer Wizard ________________________________________________ 5 Chapter 2 Properties __________________________________ 11 2.1 Opening Printer Properties _________________________________________________ 11 2.2 Explanation of Print Setting Functions ________________________________________ 12 2.2.1 Layout _____________________________________________________________________________________ 12 2.2.2 Advanced Options ___________________________________________________________________________ 14 2.2.4 Options _____________________________________________________________________________________ 17...

  • Page 4: Chapter 1 Install

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP Power ON the DP-DS80D and connect the DP-DS80D printer and the host by USB cable. * Please refer to the manual for the DP-DS80D printer for connection if needed. After that, if [Found New Hardware Wizard] is initiated, please install using the procedure in [1.2 Found New Hardware Wizard].If [Found New Hardware Wizard] is not initiated, please install in accordance with [1.3 Install from Add Printer Wizard].
  • Page 5 [DP-DS80D Printer Driver] Instruction Manual for Windows XP Select [Search for the best driver in these locations], and confirm that [Include this location in the search] is selected. Specify the location of the installation disk using the [Browse] button, and click [Next].
  • Page 6 [DP-DS80D Printer Driver] Instruction Manual for Windows XP If the following window appears during upgrade installation, check the “Version” section, select the newest version, and click the “Next” button. Fig 1.4 Select Software During software installation, the following message will be displayed. Please click [Continue Anyway] to continue.
  • Page 7 Click [Finish] to finish the wizard. Fig 1.8 Quit from Found New Hardware Wizard Click [start] – [Printer and Faxes] and confirm that [DP-DS80D] is shown. Fig 1.9 Printers and Faxes After installation of the printer-driver is complete, be sure to reboot the computer.

  • Page 8: Install From Add Printer Wizard

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP Click [start] – [Printers and Faxes]. (Depending on the host computer, [Printers and Faxes] may not be indicated. In that case, click [start] – [Control Panel] – [Printer and Other Hardware] – [Printers and Faxes]) Click [Add printer].
  • Page 9 [DP-DS80D Printer Driver] Instruction Manual for Windows XP After [Add Printer Wizard] window is shown, click [Next]. Fig 1.11 Start of Add Printer Wizard In the [Local or Network Printer] window, select [Local printer attached to this computer], and deselect [Automatically detect and install my Plug and Play printer], then click [Next].
  • Page 10 [DP-DS80D Printer Driver] Instruction Manual for Windows XP In the [Select a Printer Port] window, select [Use the following port] and assign USB port ([USB001] so on) from the dropdown list, then click [Next]. Fig 1.13 Printer port assign After [Install Printer Software] is shown, click [Have Disk].
  • Page 11 [DP-DS80D Printer Driver] Instruction Manual for Windows XP In the [Install From Disk] window, select the location of the installation disk using [Browse]. D:\Driver\DP-DS80D\English\XP Fig 1.15 Install from disk After confirming that [DP-DS80D] is shown, click [Next]. Fig 1.16 Printer software installation...
  • Page 12 [DP-DS80D Printer Driver] Instruction Manual for Windows XP In the [Name Your Printer] window, assign a name to the printer and click [Next]. Fig 1.17 Assigning a name to the printer In the [Print Test Page] window, select [No] and click [Next].
  • Page 13 [DP-DS80D Printer Driver] Instruction Manual for Windows XP In the [Completing the Add Printer Wizard] window, click [Finish]. Fig 1.19 Completing the Add Printer Wizard When installing the software, the following message may be displayed. Click [Continue Anyway] to continue.

  • Page 14: Chapter 2 Properties

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP Various printer settings can be made using the DP-DS80D Driver properties. Before operation, be sure to have a good understanding of the contents. Depending on application of the use, operation from print setting of the application is necessary.

  • Page 15: Explanation Of Print Setting Functions

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP 2.1 From the Properties window, by selecting Print Settings you can make various print settings. 2.2.1 Layout Output image depending on print direction Ex.) For (8x5), (8x6) Print paper exit slot Print paper exit slot...
  • Page 16 [DP-DS80D Printer Driver] Instruction Manual for Windows XP Page Order When printing multiple images in the application, you can set the order. Ex.) Print order No.3 No.2 No.1 Front to Back Back to Front Pages Per Sheet In most situations, set “1”.

  • Page 17: Advanced Options

    You can designate the paper size. Please match the paper size to the media size with which the printer is equipped With the DP-DS80D, the paper sizes that can be designated with the roll paper / cut paper (tray) selection in “2.2.3 Paper /Quality” Method” differ as shown in the table below.
  • Page 18 This is the same as setting “ICM Handled by Host System”. ICM Handled by Printer ICM Intent This designates the rendering method when using ICM. Always have the ICC profile for the DP-DS80D set to “Picture”. Please do not use it at other settings. Advanced Printing Features Always have it set to “Enabled”.
  • Page 19 [DP-DS80D Printer Driver] Instruction Manual for Windows XP According to the contents of a printer error, the power supply of a printer needs to be re-switched on for error recovery. In this case, it is not dependent on a setup of Print Re-try, and printing data in a printer buffer is cleared.

  • Page 20: Options

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP 2.2.3 Paper/Quality Fig 2.2.3 Paper/Quality tab Paper Source Either Roll paper or Cut paper (tray) can be selected. Duplex printing can only be done when Cut paper (tray) is selected. If a paper size valid for only either Roll paper or Cut paper (tray) is selected in the paper size setting in “2.2.2 Advanced Options”, then the Paper Supply Method setting will be disabled.

  • Page 21: Color Adjustment

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP 2.2.5 Color Adjustment in 2.2.4 Options, the respective color adjustment values in the Color Adjustment tab are If you check Handled by Driver reflected in the image. Fig 2.2.5 Color Adjustment tab...

  • Page 22: Printer Information

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP 2.2.6 Printer Information When the Printer Information tab is opened, the printer status can be checked. Fig 2.2.6 Printer Information tab Display Contents Media Type This displays the type of ribbon that is set in the printer.

  • Page 23: Default Values For Various Settings

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP Default values for each option (at the time of installation) are shown below. If the printer driver does not work correctly after changing the options, please return the options to the default settings.

  • Page 24: Image Size

    2448 x 3636 2448 x 7272 ※1 Roll Paper Only With the DP-DS80D printer, the paper size (output size) can be designated as less than 8 inches, but the media used will be the inch width media. ※2 Cut paper only The image dot counts for (8x10.5) and (8x10.75) are the same.The image that is output differsasshown...

  • Page 25: P R I N T O R I E N T A T I O N

    [DP-DS80D Printer Driver] Instruction Manual for Windows XP The relationship between application-created image and printed image(output orientation) by the driver settings(Layout orientation) is as followed table. These are limited by that original image is not rotated by the apprication and enlarged or scale downed within the image size that is selected from 2.5 Image Size table.
  • Page 26 [DP-DS80D Printer Driver] Instruction Manual for Windows 7 ◆The relationship between application-created image and printed image when performing duplex printing as affected by the driver settings（ Binding direction） Original Image Driver Settings Paper Size (8x4)､(8x5) ＜including multi-layout＞ Paper Size (8x10)､(8x10.5)､(8x10.75)､(8x12)

  • Page 27: Print Method

    [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP 2.7.1 Multi-layout With the printer driver paper setting, multi-image layout is made possible, and the image sizes are as follows. Layout designation Driver paper setting (layout) Image size（㎜） Remarks Roll paper (8x4) x 2 (207.3x104.6) x 2...
  • Page 28 [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP Layout for 1 sheet with 2 different-size images Cut as sheet is fed out (Roll Paper only)⇒ (8x6)_(8x4) etc. (When cut paper use, the image of 2 different- size on 1 sheet can not be assigned).

  • Page 29: Example Of Multi-Layout Application Use

    [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP 2.7.2 Example of Multi-layout application use ＜Example of Application Use＞ This is an example using Windows Explorer. Step 5. Click on “Advanced”. Step 1.Using File⇒Get Photo, select 2 or more images, and go to File ⇒Clic on “Print”.

  • Page 30: Duplex Printing

    [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP 2.7.3 Duplex Printing Duplex printing is possible on the DP-DS80D when cut paper is selected. Duplex printing can be performed under the following conditions. 1. Select “Cut paper (tray)” in the Paper Supply Method on the “2.2.3 Paper/Quality” tab.
  • Page 31 [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP Cautions for using Multi-layout in Duplex Printing When using multi-layout in duplex printing, the images will be laid out as follows. If there is a remainder in transmitted images, the driver will insert empty data images into the layout. The printer will output the empty data as white images.
  • Page 32 [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP In cases as above wherethere is a remainder from 1 or 2 prints, if you don’t want to output blank imagesfromthe printer, then you can use the application to change the multi-layout media size as shown below, and send the image data as a separate job.

  • Page 33: Chapter 3 Updating The Driver

    Double click (2) From the [Printers and Faxes] window, select the DP-DS80D printer. Select [Delete this printer]. Are you sure you want to delete the printer “DP-DS80D”?  select ”Yes” to remove the printer. Dai Nippon Printing Co.,Ltd.
  • Page 34 [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP (3) After the DP-DS80D printer has been removed, in the same way select File  Server Properties The Print Server Properties dialog box should appear. Select the Drivers tab. After selecting driver “DP-DS80D”, click “Remove(R)”.

  • Page 35: Chapter 4 Driver Removal

    [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP For steps to remove the printer-driver, refer to Chapter3 “1.Driver Removal”. Dai Nippon Printing Co.,Ltd.
  • Page 36 [DP-DS80D Printer Driver] Instruction Manual for Windows 2000,XP Dai Nippon Printing Co.,Ltd.
