Triple 5.6 inch lcd rack mounted monitor set

Advertisement

Quick Links

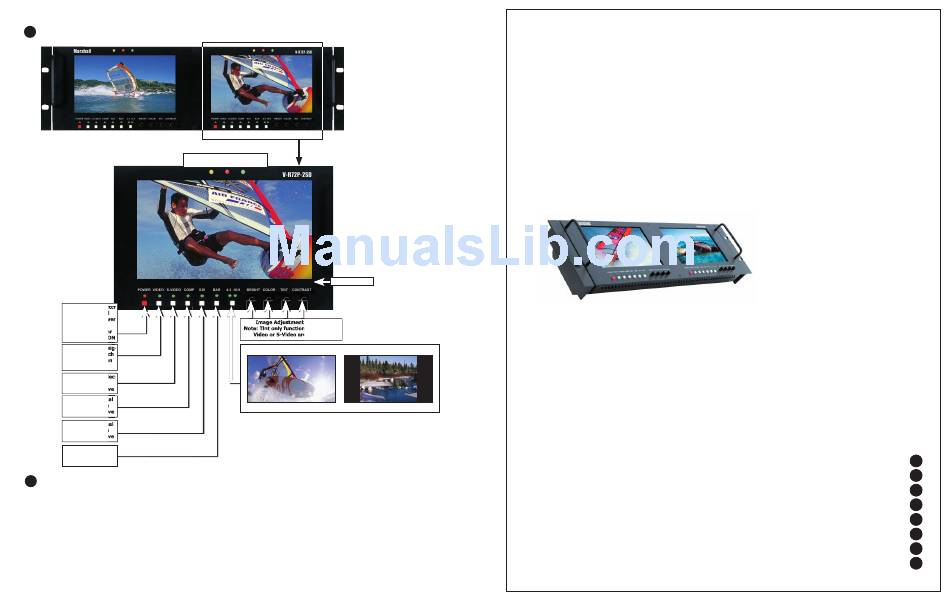

Switch Settings, Adjustments and Indicators
7
Illuminate when active
Power On/Off switch
Illuminates red
when system power
is present
Illuminates Green
when monitor is ON
Composite Video sig-
nal selector switch
Illuminates when
active
S-Video Signal selec-
tor switch
Lights when active
Component Signal
selector switch
Lights when active
HDSDI/SDI Signal
selector switch
Lights when active
Color Bar
On/Off switch
Lights when active
Warranty
8
Marshall Electronics warranties to the first consumer, that this V-R72P-2SD Triple 5.6 inch LCD rack mounted monitor set will, under normal use,
be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof of
purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in
design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than
those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the
display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to effective use
of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
Tally Indicators
Dry Erase Label
Image Adjustment Controls
Note: Tint only functions when NTSC
Video or S-Video are selected
Screen aspect ratio switch 4:3 or 16:9 selector and indicators
16:9 Aspect
4:3 Aspect
Note: Tapping any active input signal toggles BLUE
GUN On/Off. Signal selection is active when Blue
Gun is on. Tap active selection to turn off
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R72P-2SD Users Guide
V-R72P-2SD
Users Guide
1
Product Overview
Features
2
Electrical Specifications
3
Mechanical Specifications
4
Operational Setup
5
Connectors
6
Switch Settings, Adjustments and Indicators
7
Warranty
8
