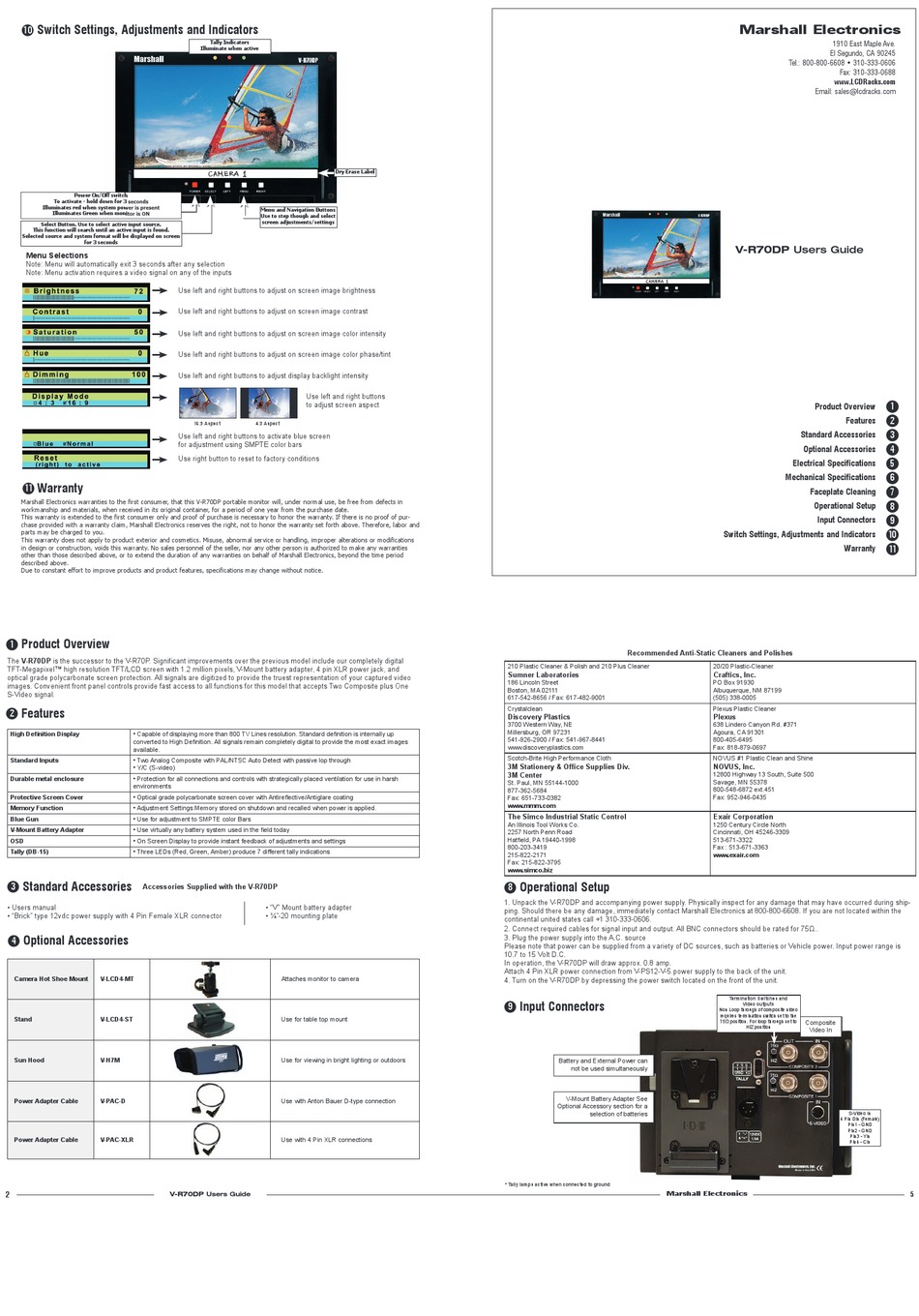

Marshall Electronics V-R70DP User Manual

Switch Settings, Adjustments and Indicators
10
Power On/Off switch
To activate - hold down for 3 seconds 
Illuminates red when system power is present
Illuminates Green when monitor is ON
Select Button. Use to select active input source.
This function will search until an active input is found.
Selected source and system format will be displayed on screen 
for 3 seconds 
Menu Selections 
Note: Menu will automatically exit 3 seconds after any selection
Note: Menu activation requires a video signal on any of the inputs
Use left and right buttons to adjust on screen image brightness
Use left and right buttons to adjust on screen image contrast
Use left and right buttons to adjust on screen image color intensity
Use left and right buttons to adjust on screen image color phase/tint
Use left and right buttons to adjust display backlight intensity
Use left and right buttons to activate blue screen 
for adjustment using SMPTE color bars
Use right button to reset to factory conditions
Warranty
11
Marshall Electronics warranties to the first consumer, that this V-R70DP portable monitor will, under normal use, be free from defects in 
workmanship and materials, when received in its original container, for a period of one year from the purchase date.  
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of pur-
chase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and 
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications 
in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties 
other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period 
described above.
Due to constant effort to improve products and product features, specifications may change without notice.
Product Overview
1

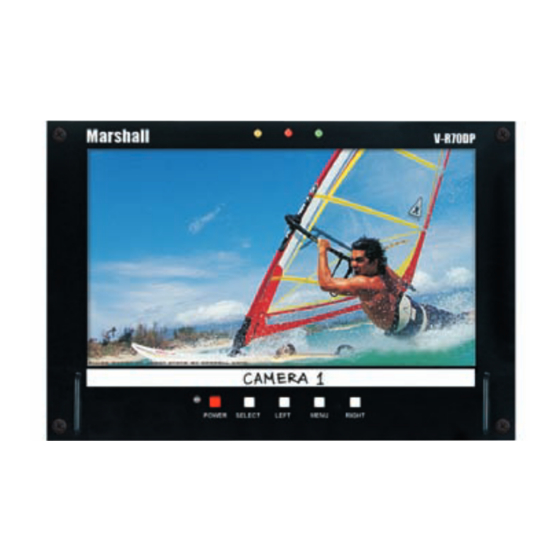

The V-R70DP is the successor to the V-R70P. Signifi cant improvements over the previous model include our completely digital 
TFT-Megapixel™ high resolution TFT/LCD screen with 1.2 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and 
optical grade polycarbonate screen protection.  A ll signals are digitized to provide the truest representation of your captured video 
images. Convenient front panel controls provide fast access to all functions for this model that accepts Two Composite plus One 
S-Video signal.
Features
2
High Defi nition Display •  Capable of displaying more than 800 TV Lines resolution. Standard defi nition is internally up 
converted to High Defi nition.  A ll signals remain completely digital to provide the most exact images 
available.
Standard Inputs •  Two  A nalog Composite with PAL/NTSC  A uto Detect with passive lop through 
•  Y/C (S-video) 
Durable metal enclosure •  Protection for all connections and controls with strategically placed ventilation for use in harsh 
environments
Protective Screen Cover •  Optical grade polycarbonate screen cover with  A ntirefl ective/Antiglare coating
Memory Function •  A djustment Settings Memory stored on shutdown and recalled when power is applied.  
Blue Gun  •  Use for adjustment to SMPTE color Bars
V-Mount Battery Adapter •  Use virtually any battery system used in the fi eld today
OSD •  On Screen Display to provide instant feedback of adjustments and settings
Tally (DB-15) •  Three LEDs (Red, Green,  A mber) produce 7 different tally indications
Standard Accessories
3
Accessories Supplied with the V-R70DP
•  Users manual
•  "Brick" type 12vdc power supply with 4 Pin Female XLR connector
Optional Accessories
4
Camera Hot Shoe Mount V-LCD4-MT
Stand V-LCD4-ST
Sun Hood V-H7M
Power Adapter Cable V-PAC-D
Power Adapter Cable V-PAC-XLR     
2 V-R70DP Users Guide
Tally Indicators 
Illuminate when active
Dry Erase Label
Menu and Navigation Buttons
Use to step though and select 
screen adjustments/settings
Use left and right buttons 
to adjust screen aspect
16:9 Aspect 4:3 Aspect
•  "V" Mount battery adapter
•  ¼"-20 mounting plate 
Attaches monitor to camera
Use for table top mount
Use for viewing in bright lighting or outdoors
Use with Anton Bauer D-type connection
Use with 4 Pin XLR connections
Recommended Anti-Static Cleaners and Polishes 
210 Plastic Cleaner & Polish and 210 Plus Cleaner
Sumner Laboratories
186 Lincoln Street
Boston, MA 02111
617-542-8656 / Fax: 617-482-9001 
Crystalclean
Discovery Plastics
3700 Western Way, NE
Millersburg, OR 97231
541-926-2900 / Fax: 541-967-8441
www.discoveryplastics.com 
Scotch-Brite High Performance Cloth
3M Stationery & Offi ce Supplies Div.
3M Center
St. Paul, MN 55144-1000
877-362-5684
Fax: 651-733-0382
www.mmm.com 
The Simco Industrial Static Control
An Illinois Tool Works Co.
2257 North Penn Road
Hatfi eld, PA 19440-1998
800-203-3419
215-822-2171
Fax: 215-822-3795
www.simco.biz 
Operational Setup
8
1. Unpack the V-R70DP and accompanying power supply. Physically inspect for any damage that may have occurred during ship-
ping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within the 
continental united states call +1 310-333-0606.
2. Connect required cables for signal input and output.  A ll BNC connectors should be rated for 75..
3. Plug the power supply into the  A .C. source 
Please note that power can be supplied from a variety of DC sources, such as batteries or Vehicle power. Input power range is 
10.7 to 15 Volt D.C. 
In operation, the V-R70DP will draw approx. 0.8 amp.
Attach 4 Pin XLR power connection from V-PS12-V-5 power supply to the back of the unit.
4. Turn on the V-R70DP by depressing the power switch located on the front of the unit. 
Input Connectors
9
Battery and External Power can 
not be used simultaneously
V-Mount Battery  A dapter See 
Optional  A ccessory section for a 
selection of batteries
* Tally lamps active when connected to ground
Marshall Electronics
Marshall Electronics 
1910 East Maple Ave.  
El Segundo, CA 90245   
Tel.: 800-800-6608 •  310-333-0606 
Fax: 310-333-0688 
www.LCDRacks.com 
Email: sales@lcdracks.com 
V-R70DP Users Guide
1
Product Overview
Features 2
3
Standard Accessories
Optional Accessories 4
5
Electrical Specifications
6
Mechanical Specifications
Faceplate Cleaning 7
8
Operational Setup
Input Connectors 9
10
Switch Settings, Adjustments and Indicators
Warranty 11
20/20 Plastic-Cleaner
Craftics, Inc.
PO Box 91930
Albuquerque, NM 87199
(505) 338-0005
Plexus Plastic Cleaner
Plexus
638 Lindero Canyon Rd. #371
Agoura, CA 91301
800-405-6495
Fax: 818-879-0697 
NOVUS #1 Plastic Clean and Shine
NOVUS, Inc.
12800 Highway 13 South, Suite 500
Savage, MN 55378
800-548-6872 ext.451
Fax: 952-946-0435 
Exair Corporation
1250 Century Circle North
Cincinnati, OH 45246-3309
513-671-3322
Fax : 513-671-3363
www.exair.com 
Termination Switches and 
Video outputs
Non Loop through of composite video 
requires termination switch set to the 
75Ω position. For loop through set to  Composite 
HiZ position
Video In
S-Video In
4 Pin Din (Female)
Pin1 - GND
Pin2 - GND
Pin3 - Yin
Pin4 - Cin
5
