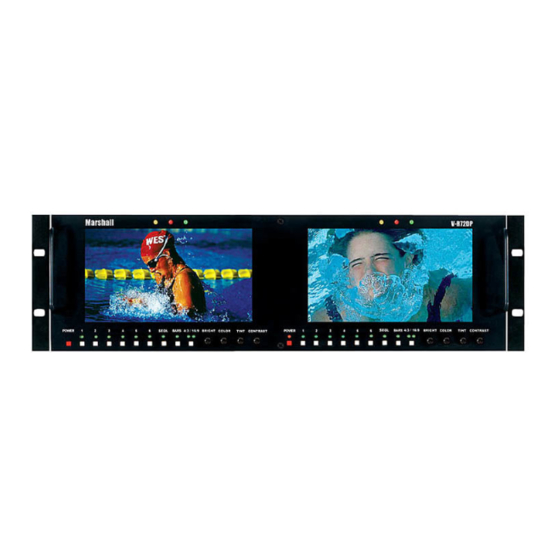

Marshall Electronics V-R72DP User Manual

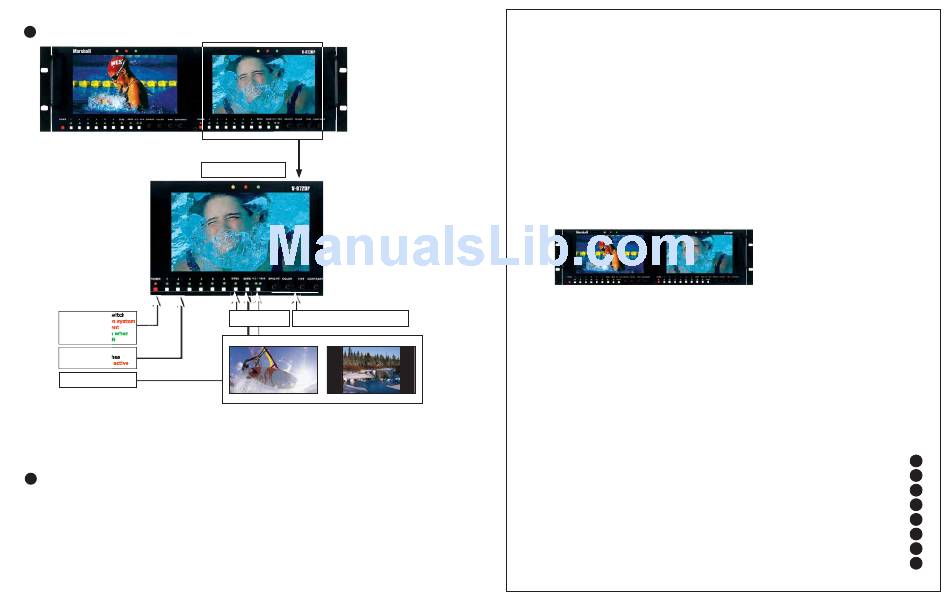

Switch Settings, Adjustments and Indicators
7
Power On/Off switch
Illuminates red when system
power is present
Illuminates Green when
monitor is ON
Signal
selector switches
Illuminates when active
Color Bar On/Off switch
Lights when active
Note: Tapping any active input signal toggles
BLUE GUN On/Off.
Signal selection is active when Blue Gun is on.
Tap active selection to turn off
Warranty
8
Marshall Electronics warranties to the first consumer, that this V-R72DP Dual 7-inch LCD rack mounted monitor set will, under normal use, be free
from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof of
purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in
design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than
those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the
display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to effective use
of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
Tally Indicators
Illuminate when active
Sequncce selector Image Adjustment Controls
Lights when active
Screen aspect ratio switch 4:3 or 16:9 selector and indicators
16:9 Aspect 4:3 Aspect
Sequence control
Seq+6= Fast
Seq+5=Med
Seq+4=Slow
Any input selection will
cancel sequence function
