Andon KD-7908 Operation Manual

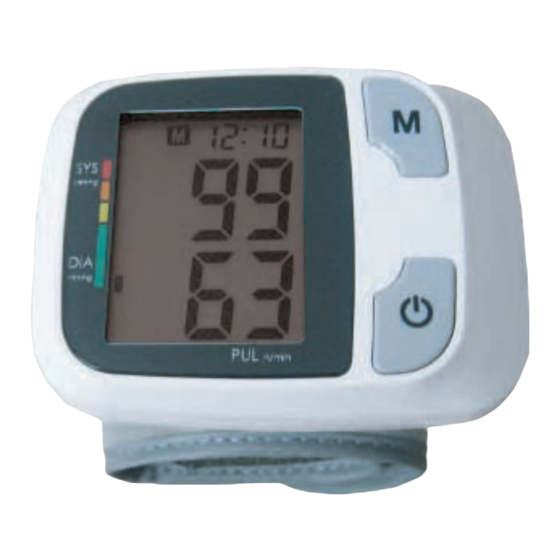

Fully automatic wrist cuff blood pressure monitor (electronic sphygmomanometer)
Hide thumbs
Table of Contents

Advertisement

Quick Links

DN:KD-7908-SMSY01 V2.0
Fully Automatic Wrist Cuff Blood Pressure Monitor
IMPORTANT INFORMATION ..................................................................................................................................... 2
PARTS AND DISPLAY INDICATORS ........................................................................................................................ 2
INTENDED USE ........................................................................................................................................................... 3
CONTRAINDICATION .................................................................................................................................................. 3
PRODUCT DESCRIPTION ......................................................................................................................................... 3
SPECIFICATIONS ........................................................................................................................................................ 3
NOTICE .......................................................................................................................................................................... 4
SETUP AND OPERATING PROCEDURES ............................................................................................................. 5
1. BATTERY LOADING ........................................................................................................................................ 5
2. CLOCK AND DATE ADJUSTMENT ................................................................................................................ 6
3. CONNECTING THE CUFF TO THE MONITOR ............................................................................................. 6
4. APPLYING THE CUFF ...................................................................................................................................... 6
5. BODY POSTURE DURING MEASUREMENT ................................................................................................ 7
6. TAKING YOUR BLOOD PRESSURE READING ............................................................................................ 7
7. DISPLAYING STORED RESULTS ................................................................................................................... 8
8. DELETING MEASUREMENTS FROM THE MEMORY ................................................................................ 9
9. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS ................................................................................. 9
10.
TECHNICAL ALARM DESCRIPTION ..................................................................................................... 9
11.
TROUBLESHOOTING (1) ....................................................................................................................... 10
12.
TROUBLESHOOTING (2) ....................................................................................................................... 10
MAINTENANCE .......................................................................................................................................................... 11
EXPLANATION OF SYMBOLS ON UNIT ............................................................................................................... 11
WARRANTY INFORMATION .................................................................................................................................... 12
SERVICE CENTER .................................................................................................................................................... 12
ELECTROMAGNETIC COMPATIBILITY INFORMATION .................................................................................... 12
MODEL KD-7908
(ELECTRONIC SPHYGMOMANOMETER)
INDEX
1/15
Operation Guide
Template version:1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-7908 and is the answer not in the manual?

Questions and answers

Related Manuals for Andon KD-7908

Summary of Contents for Andon KD-7908

  • Page 1: Table Of Contents

    DN:KD-7908-SMSY01 V2.0 Operation Guide MODEL KD-7908 Fully Automatic Wrist Cuff Blood Pressure Monitor (ELECTRONIC SPHYGMOMANOMETER) OPERATION GUIDE INDEX IMPORTANT INFORMATION ............................. 2 PARTS AND DISPLAY INDICATORS ........................2 INTENDED USE ................................3 CONTRAINDICATION ..............................3 PRODUCT DESCRIPTION ............................3 SPECIFICATIONS ................................ 3 NOTICE ..................................

  • Page 2: Operation Guide

    DN:KD-7908-SMSY01 V2.0 Operation Guide IMPORTANT INFORMATION NORMAL BLOOD PRESSURE FLUCTUATION All physical activity, excitement, stress, eating, drinking, smoking and many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value. Because of this, it is mostly unusual to obtain identical multiple blood pressure readings.

  • Page 3: Intended Use

    ANSI/AAMI SP-10:2002+A1:2003+A2:2006. SPECIFICATIONS 1. Product name: Blood Pressure Monitor 2. Model: KD-7908 3. classification: Internally powered, type BF applied part,IPX0,No AP or APG,Continuous operation 4. Machine size: 66 mm x 88 mm x 30 mm 5.

  • Page 4: Notice

    DN:KD-7908-SMSY01 V2.0 Operation Guide 10. Measurement range: Cuff pressure: 0-300mmHg Systolic: 60-260mmHg Diastolic: 40-199mmHg Pulse rate: 40-180 beats/minute 11. Accuracy: Pressure: ±3mmHg Pulse rate: ±5% 12. Environmental temperature for operation: 5℃～40℃(41℉～104℉) 13. Environmental humidity for operation: ≤90%RH 14. Environmental temperature for storage: -20℃～55℃(-4℉～131℉) 15.

  • Page 5: Setup And Operating Procedures

    DN:KD-7908-SMSY01 V2.0 Operation Guide 11. Information regarding potential electromagnetic or other interference between the blood pressure monitor and other devices together with advice regarding avoidance of such interference please see part ELECTROMAGNETIC COMPATIBILITY INFORMATION. 12. If Irregular Heartbeat (IHB) brought by common arrhythmias is detected in the procedure of blood pressure measurement, a signal of will be displayed.

  • Page 6: Clock And Date Adjustment

    DN:KD-7908-SMSY01 V2.0 Operation Guide Avoid the battery fluid to get in your eyes. If it should get in your eyes, immediately rinse with plenty of clean water and contact a physician. The monitor, the batteries and the cuff, must be disposed of according to local regulations at the end of their usage.

  • Page 7: Body Posture During Measurement

    DN:KD-7908-SMSY01 V2.0 Operation Guide While seated, place the arm with the cuffed wrist in front of your body on a desk or table with the palm up. If the cuff is correctly placed, you can read the LCD display. The cuff must be neither too tight nor too loose.

  • Page 8: Displaying Stored Results

    DN:KD-7908-SMSY01 V2.0 Operation Guide d. The monitor inflates the cuff until sufficient pressure has built up for a measurement. Then the monitor slowly releases air from the cuff and carries out the measurement. Finally the blood pressure and pulse rate will be calculated and displayed on the LCD screen separately. Irregular heartbeat symbol (if any) will blink.

  • Page 9: Deleting Measurements From The Memory

    DN:KD-7908-SMSY01 V2.0 Operation Guide Picture 7-6 Picture 7-7 Picture 7-8 d. When displaying the stored results, the monitor will turn off automatically after 1 minute of no operation. You can also press the button ―START‖ to turn off the monitor manually.

  • Page 10: Troubleshooting (1)

    DN:KD-7908-SMSY01 V2.0 Operation Guide 11. TROUBLESHOOTING (1) PROBLEM POSSIBLE CAUSE SOLUTION The cuff position was not correct Apply the cuff correctly and or it was not properly tightened try again Review ―BODY POSTURE DURING Body posture was not correct MEASUREMENT‖ sections...

  • Page 11: Maintenance

    DN:KD-7908-SMSY01 V2.0 Operation Guide MAINTENANCE Do not drop this monitor or subject it to strong impact. Avoid high temperature and solarization. Do not immerse the monitor in water as this will result in damage to the monitor. If this monitor is stored near freezing, allow it to acclimate to room temperature before use.

  • Page 12: Warranty Information

    For all ME EQUIPMENT and ME SYSTEMS Guidance and manufacture’s declaration - electromagnetic emissions The KD-7908 is intended for use in the electromagnetic environment specified below. The customer or the user of the KD-7908 should assure that it is used in such an environment. Emissions test...
  • Page 13 Guidance and manufacturer’s declaration - electromagnetic immunity The KD-7908 is intended for use in the electromagnetic environment specified below. The customer or the user of the KD-7908 should assure that it is used in such an environment. Electromagnetic IMMUNITY test...
  • Page 14 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the KD-7908 is used exceeds the applicable RF compliance level above, the KD-7908 should be observed to verify normal operation.
  • Page 15 Recommended separation distances between portable and mobile RF communications equipment and the KD-7908 The KD-7908 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the KD-7908 can help prevent...
