Marshall Electronics V-R65P-HD User Manual

10

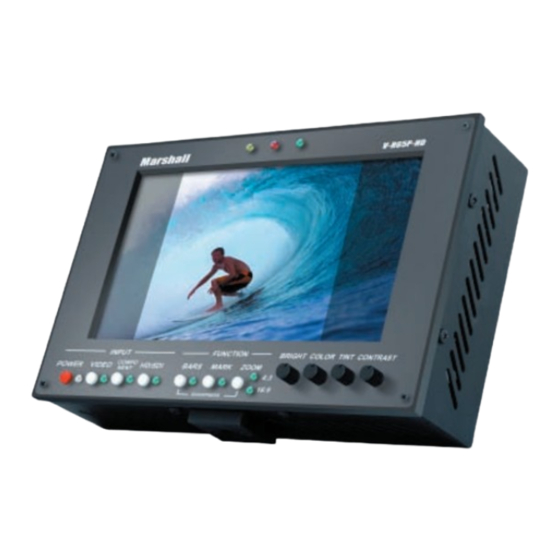

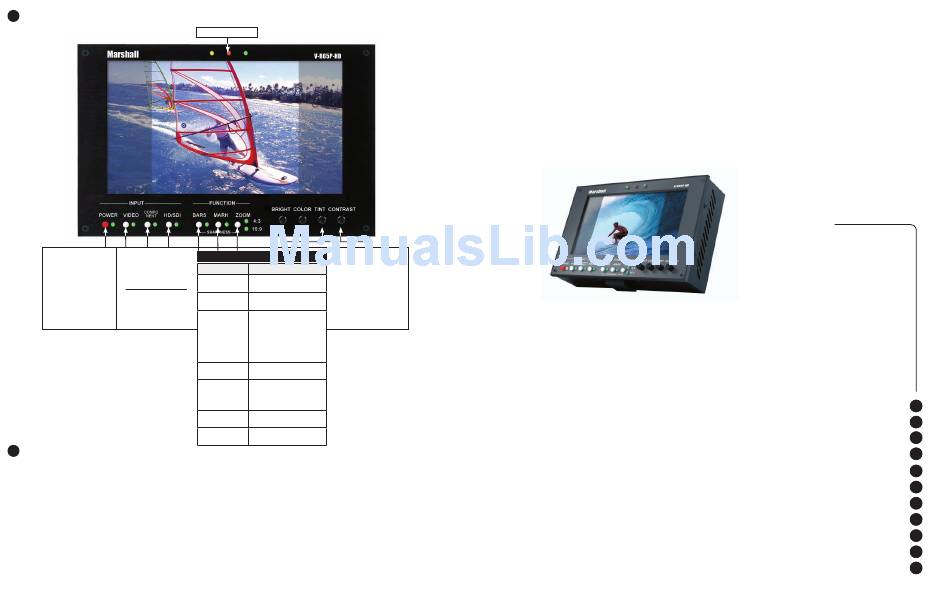

Switch Settings, Functions and Indicators
Power On/Off Input Source selectors.
selection switch Selected source will
Illuminates Red illuminate the indicator.
when power is applied. Flashing indicates
Turns Green when no signal present.
monitor is switched on
Component button
toggles:
Tap 1-YPrPb interlace,
Tap 2-YprPb Progressive,
Tap 3-VGA
11
Warranty
Marshall Electronics warranties to the first consumer, that this V-R65P-HD portable monitor will, under normal use, be free from defects in work-
manship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of purchase pro-
vided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor and parts may be
charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in
design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other than
those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.
Prior to any warranty repair, a Return Material Authorization (RMA) must be issued by the dealer/distributor that sold the V-R65P-HD to the original
user. Returned products must be clearly identified with the RMA number on the outside packaging.
Marshall Electronics reserves the right to repair or replace warranted products after evaluation by the factory repair depot.
Due to constant effort to improve products and product features, specifications may change without notice.
© Marshall Electronics
• 1910 East Maple Avenue • El Segundo, CA •
Tally Indicators
Screen adjustments
Function Control Table
TINT adjust is not
available for PAL, Digital,
BUTTON FUNCTION
or Component signal
BARS Bars On/Off
standards.
(overrides video input)
BARS + ZOOM Sharpness
(Toggles 4 Settings plus off)
MARK Frame Aspect Shaded
Overlay
Tap Once-14:9
Tap Twice –13:9
Tap Thrice – 4:3
Tap 4 times –1.85:1
Tap 5 times – 2.35:1
Hold MARK for Center & Safe area display
2 seconds (Toggle On/Off)
ZOOM Tap once – Mono
Tap Twice-Zoom Mono
Tap Thrice-Zoom Color
Tap four times-Normal
Hold BARS for Blue only display
2 seconds (Toggle On/Off)
Hold ZOOM for 16:9/4:3 aspect toggle
2 seconds
Product and features subject to change
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R65P-HD
Users Guide Users Guide
Product Overview
Features
Standard Accessories
Optional Accessories
Electrical Specifications
Mechanical Specification
Faceplate Cleaning
Operational Setup
Input Connectors
Switch Settings, Functions and Indicators
Warranty
1
2
3
4
5
6
7
8
9
10
11
