Marshall Electronics V-R653P-HDSDI User Manual

Switch Settings, Adjustments and Indicators
7
Power On/Off switch Screen aspect selec- Blue Gun for
Illuminates red when tor for SD signals adjustment to SMPTE
system power is color bars signal
present illuminates
Green when monitor
is ON
Warranty
8

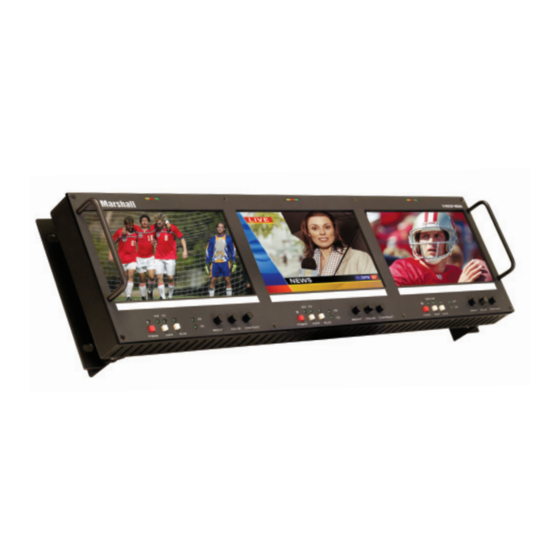

Marshall Electronics warranties to the first consumer, that this V-R653P-HDSDI Triple 6.5 inch LCD rack mounted monitor set will, under normal
use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.
This warranty is extended to the purchasing end user only and proof of purchase is necessary to honor the warranty. If there is no proof of
purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and
parts may be charged to you.
This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifications in
design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any warranties other
than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described
above.
An extra note about LCD displays: It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the
display active viewing area. Marshall Electronics has the option to reserve service for display pixel failure if deemed unobtrusive to effective use
of the monitor by our technicians.
Due to constant effort to improve products and product features, specifications may change without notice.
Tally Indicators
Illuminate when active
Dry Erase Label
Signal type indicator for Image Adjustment Controls
Standard Defi nition or
High Defi nition signals
Marshall Electronics
1910 East Maple Ave.
El Segundo, CA 90245
Tel.: 800-800-6608 • Fax: 310-333-0688
www.LCDRacks.com
Email: sales@lcdracks.com
V-R653P-HDSDI V-R653P-HDSDI Users Guide Users Guide
1
Product Overview
Features 2
Electrical Specifications 3
Mechanical Specifications 4
Operational Setup 5
Connectors 6
Switch Settings, Adjustments and Indicators 7
Warranty 8
