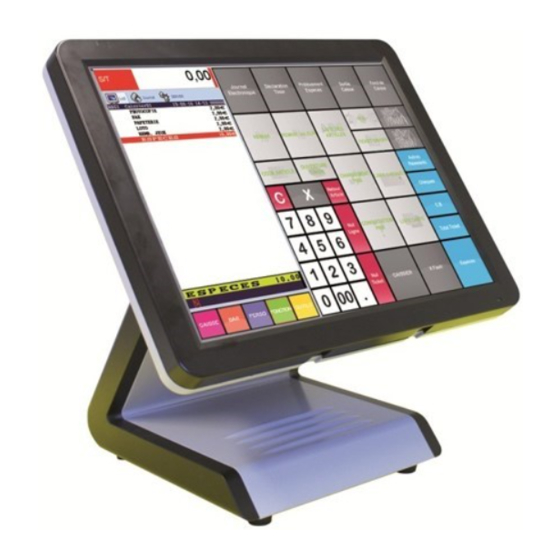

POS Terminal
SP-1000
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Partner SP-1000

Summary of Contents for Partner SP-1000

  • Page 1 POS Terminal SP-1000 User Manual...

  • Page 3: Declaration Of Conformity

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

  • Page 4: About This Manual

    SP-1000 serviced, and technical specifications. Safety information Before installing and using the SP-1000, take note of the following precautions: • Read all instructions carefully. • Do not place the unit on an unstable surface, cart, or stand.

  • Page 5: Table Of Contents

    Identifying components .................3 Connecting peripheral devices ...............6 Connecting a cash drawer ................7 Powering the machine on and off ..............8 Mounting the SP-1000 on the wall ..............9 CHAPTER 2 BIOS SETUP ............11 About the Setup Utility .................11 Entering the Setup Utility ................12 BIOS navigation keys ................12...
  • Page 6 Beep Errors at POST ...................41 Beep Message Errors at POST ..............42 General Problems ..................43 Having the SP-1000 Serviced ..............44 Specifications ....................45...

  • Page 7: Chapter 1 Getting Started

    CHAPTER 1 GETTING STARTED This chapter describes the procedures from unpacking the SP-1000, to powering it on. The following topics are described. • Unpacking the machine on page 1 • Checking the package contents on page 2 • Identifying components on page 3 • Connecting peripheral devices on page 6...

  • Page 8: Checking The Package Contents

    Checking the package contents After you unpack the device check that the following items are included. Driver CD with drivers and SP-1000 the user manual PDF file. Adapter Power Cable If any item is missing or appears damaged, contact your dealer immediately.

  • Page 9: Identifying Components

    Identifying components This section describes the parts and connectors on the machine. Front-right view Figure 1.2 Front-right view Component Description 15-inch TFT LCD LED Power Indicator IO Panel HDD Compartment Power Button...

  • Page 10: Rear View

    Rear view Figure 1.3 Rear view Component Description MSR (optional) Slot HDD Compartment (for wall mounting) VFD Customer Display (optional) Slot Cable Compartment C H A P T E R 1 G E T T I N G S T A R T E D...
  • Page 11 I/O connectors Figure 1.4 SP-1000 I/O connectors Connector Description COM 4 port VGA port COM 2 port USB ports RJ-11 cash drawer port DC 12V input connector DC 12V output connector (for PM-116) Microphone jack Audio output jack COM 3 port...

  • Page 12: Connecting Peripheral Devices

    Connecting peripheral devices Peripheral devices such as a printer or scanner can be connected to the machine. Refer to the user manual of the device you are connecting for instructions on installing drivers where needed. Adapter USB Compliant devices PM-116 Monitor MR HS AA CD SD RD TR...

  • Page 13: Connecting A Cash Drawer

    Connecting a cash drawer Refer to the following to connect a cash drawer. The cash drawer RJ-11 connector is DC+24V. Ensure the cash drawer to be connected matches this power specification. IMPORTANT 1. Flip up the LCD panel, you can find the I/O panel is at the bottom of the LCD panel.

  • Page 14: Powering The Machine On And Off

    Powering the machine on and off Refer to the following to power on and off the machine. 1. Locate the I/O panel that is at the bottom of the machine. 2. Connect the adapter to the power cable, and then insert the power plug into an electrical outlet (AC100 - 240 V).

  • Page 15: Mounting The Sp-1000 On The Wall

    Mounting the SP-1000 on the wall The SP-1000 can be attached to a wall mount (optional). 1. Turn off the power, and disconnect all power and peripheral cables. 2. Flip up the LCD panel. 3. Remove the screw that secure the base to the SP-1000.
  • Page 16 SP-1000 with the hooks on the wall mount bracket. 6. Insert the hooks on the wall mount bracket into the mounting holes in the back of the SP-1000 and slide the SP-1000 down onto the bracket. 7. Reconnect the cables.

  • Page 17: Chapter 2 Bios Setup

    CHAPTER 2 BIOS SETUP The primary function of the BIOS (Basic Input and Output System) is to identify and initiate component hardware. The BIOS parameters are stored in non-volatile BIOS memory (CMOS). CMOS contents don’t get erased when the computer is turned off. The following topics are described in this chapter. • About the Setup Utility on page 11 • Main Screen on page 14 • Advanced Settings on page 15...

  • Page 18: Entering The Setup Utility

    Entering the Setup Utility When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears: Press DEL to run Setup Press the delete key <Delete>...

  • Page 19: Using Bios

    Using BIOS When you start the Setup Utility, the main screen appears. The main screen of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options.

  • Page 20: Main Screen

    Main Screen This screen includes System BIOS Information, Processor, System memory and displays the System Time and System Date. Figure 2.2 Main Screen System Overview This screen displays System BIOS Information, Processor, System memory, System Time and System Date. System Time/ System Date The System Time and System Date items show the current date and time held by the machine.

  • Page 21: Advanced Settings

    Advanced Settings This setup screen includes sub-menus for IDE Configuration, USB Configuration, ACPI Configurations, MPS Configurations, Super IO Configurations and Hardware Health Configuration. Figure 2.3 Advanced Settings Screen Onboard LAN Boot ROM This feature allows users to enable or disable the onboard Lan boot ROM to boot system. Speaker Control This item is used to enable or disable the speaker. Spread Spectrum When the motherboard clock generator pulses, the extreme values (spikes) of the pulses creates EMI (Electromagnetic Interference).

  • Page 22: Ide Configuration

    IDE Configuration Figure 2.4 IDE Configuration sub-menu C H A P T E R 2 B I O S S E T U P...

  • Page 23: Primary/ Secondary Ide Master

    Primary/ Secondary IDE Master Figure 2.5 Primary IDE Master sub-menu Type Select [Auto] to automatically detect hard disk drive. If auto detection is successful, the BIOS Setup automatically fills in the correct values for the remaining fields on this sub-menu. If the auto detection fails, it may due to that the hard disk is too old or too new. If the hard disk was already formatted on an older system, the BIOS Setup may detect incorrect parameters.

  • Page 24: Usb Configuration

    USB Configuration Figure 2.6 USB Configuration sub-menu Legacy USB Support When enabled, the BIOS will enable legacy support for USB keyboards, mice and floppy drives. You will be able to use these USB devices even with operating systems that do not support USB. USB 2.0 Controller Mode This item is used to select the speed mode of USB 2.0 controller. BIOS EHCI Hand-Off This item is used to support for OS without an EHCI hand-off feature.

  • Page 25: Usb Mass Storage Device Configuration

    USB Mass Storage Device Configuration Figure 2.7 USB Mass Storage Device Configuration sub-menu USB Mass Storage Device Configuration This item is used to set the maximum length of time that the BIOS should wait for the USB flash drive to initialize during the boot-up process. Emulation Type This item allows user to simulate USB devices as FDD, HDD or CD-ROM.

  • Page 26: Acpi Configuration

    ACPI Configuration Figure 2.8 ACPI Settings sub-menu Suspend mode Use this item to define how the system suspends. In the default, S1(POS), the suspend mode is equivalent to a software power down. If you select S3(STR), the suspend mode is a suspend to RAM - the system shuts down with the exception of a refresh current to the system memory. ACPI APIC support This item allows user to enable or disable the APIC (Advanced Programmable Interrupt Controller) function.

  • Page 27: Mps Configuration

    MPS Configuration Figure 2.9 MPS Configuration sub-menu MPS Revision This item allows user to select the version of the Multi-Processor Specification (MPS).

  • Page 28: Superio Configuration

    SuperIO Configuration Figure 2.10 SuperIO Configuration sub-menu Parallel Port Address This item allows user to select the I/O address for the parallel port. Parallel Port Mode This item allows user to select the parallel port mode. Parallel Port IRQ This item allows user to select the IRQ for the parallel port. Serial Port1~6 Address These items are used to assign the I/O address for the serial port 1~6.

  • Page 29: Hardware Health Configuration

    Hardware Health Configuration Figure 2.11 Hardware Health Configuration sub- menu H/W Health Function This item allows you to enable or disable Hardware Health Event Monitoring.

  • Page 30: Hardware Health Configuration

    Boot Settings This screen allow you to configure the boot options. Figure 2.12 Boot Settings screen C H A P T E R 2 B I O S S E T U P...

  • Page 31: Boot Settings Configuration

    Boot Settings Configuration Figure 2.13 Boot Settings Configuration sub-menu Quick Boot Enabling this setting will cause the BIOS power-on self test routine to skip some of its tests during booting for faster system boot. Quiet Boot This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo.

  • Page 32: Boot Device Priority

    Boot Device Priority Use this screen to specify the order in which the system checks for the device to boot from. Figure 2.14 Boot Device Priority sub-menu 1st Boot Device 2nd Boot Device Set the boot device options to determine the sequence in which the computer checks which device to boot from.

  • Page 33: Hard Disk Drives

    Hard Disk Drives Use this screen to view the hard disk drives in the system. Figure 2.15 Hard Disk Drives sub-menu 1st Drive Use this item to view the hard disk drives in the system.
  • Page 34 Removable Drives Use this screen to view the removable drives attached to the system. Figure 2.16 Removable Drives sub-menu 1st Drive Use this item to view the removable drives attached to the system. C H A P T E R 2 B I O S S E T U P...

  • Page 35: Chipset Settings

    Chipset Settings This screen allow you to configure the North Bridge and South Bridge chipset options. Figure 2.17 Chipset Settings screen...

  • Page 36: North Bridge Chipset Configuration

    North Bridge Chipset Configuration Figure 2.18 North Bridge Chipset Configuration sub-menu Internal Graphics Mode Select This feature controls the amount of system memory that is allocated to the integrated graphic process when the system boot up. DMVT Mode Select Dynamic Video Memory Technology (DVMT) allows the system to dynamically allocate memory resources according to the demands of the system at any point in time, that improves the efficiency of the memory allocated to either system or graphics processor.

  • Page 37: South Bridge Chipset Configuration

    South Bridge Chipset Configuration Figure 2.19 South Bridge Chipset Configuration sub-menu USB Functions This item allows you to set numbers of USB port. USB 2.0 Controller The USB 2.0 Controller item allows USB 2.0 functionality. HDA Controller This item allows the High Definition Audio interface integrated in the Southbridge functionality. SMBUS Controller This item allows SMBUS controller to monitor the system temperature and voltage.
  • Page 38 PCIPnP Settings This screen allow you to configure the PCI options. Figure 2.20 PCIPnP Settings screen Plug and Play O/S This item allows the system to modify the settings for Plug and Play operating system support. PCI Latency Timer This item allows you to adjust the PCI Latency Timer of all PCI devices on the PCI bus. Allocate IRQ to PCI VGA This function can restrict the system from giving the PCI VGA adapter card an interrupt address.

  • Page 39: Security Settings

    Security Settings This screen allows you to configure the system security settings. Figure 2.21 Security Settings screen User Password Indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays. Clear User Password Select this option and press <Enter> to access the sub menu. You can use the sub menu to clear the user password. Password Check [Setup] Check password while entering BIOS setup. [Always] Check password while booting.

  • Page 40: Exit Menu

    Exit Menu This screen allows you to load the optimal or failsafe default values, and save or discard changes. Figure 2.22 Exit Menu screen Save Changes and Exit Highlight this item and press <Enter> to save the changes that you have made in the Setup Utility and exit the Setup Utility.

  • Page 41: Load Failsafe Defaults

    Load Failsafe Defaults This option opens a dialog box that lets you load fail-safe defaults for all appropriate items in the Setup Utility. The fail-safe defaults place no great demands on the system and are generally stable. If the system is not functioning correctly, try loading the fail-safe defaults as a first step in getting the system working properly again. If you only want to load fail-safe defaults for a specific option, select and display that option, and then press <F8>.
  • Page 42 C H A P T E R 2 B I O S S E T U P...

  • Page 43: Chapter 3 Upgrading Components

    CHAPTER 3 UPGRADING COMPONENTS This chapter describes how to upgrade components for the SP-1000. The following topics are described. • Safety and precautions on page 37 • Before you begin on page 38 • Upgrading the hard drive on page 39 Safety and precautions Computer components and electronic circuit boards can be damaged by discharges of static electricity.

  • Page 44: Before You Begin

    Before you begin Make sure you have a stable, clean working environment. Dust and dirt can get into components and may cause malfunction. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the electrical and mechanical connections can be disconnected by using your fingers. It is recommended that you do not use needle-nosed pliers to disconnect connectors as these can damage the soft metal or plastic parts of the connectors.

  • Page 45: Upgrading The Hard Drive

    Upgrading the hard drive Refer to the following to remove and replace the hard drive. 1. Turn off the device properly through the operating system. 2. Disconnect the power cord from the power outlet. 3. Press and the hard drive compartment cover as it shown on the picture.
  • Page 46 C H A P T E R 3 U P G R A D I N G C O M P O N E N T S...

  • Page 47: Appendix

    If failure is detected in an area other than the mainboard (such as the keyboard or an adapter card), an error message is displayed on the screen and testing is stopped. If your system does not successfully complete the POST, but displays a blank screen, have the SP-1000 serviced.

  • Page 48: Beep Message Errors At Post

    Replace the battery. FAILED The battery may be weak. Replace the battery. CMOS CHECKSUM ERROR The CMOS may be corrupt. Have the SP-1000 serviced. HARD DISK(S) FAIL (80) HDD reset failed. Have the SP-1000 serviced. HDD controller diagnostics HARD DISK(S) FAIL (40) Have the SP-1000 serviced.

  • Page 49: General Problems

    Refer to the following general problems you may encounter. PROBLEM SOLUTION The display screen is dark. Make sure that the SP-1000 is not in suspend mode. An incorrect date and time are displayed. Correct the date and time using the DOS DATE and TIME commands or the options in the Setup Utility. (You can also set the date and time in...

  • Page 50: Having The Sp-1000 Serviced

    Having the SP-1000 Serviced If you are unable to solve the problem, you should have the terminal serviced. Pack the terminal in the original carton. (See “Unpacking the SP-1000” on page 1.) Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel.

  • Page 51: Specifications

    Specifications Item SP-1000 D425 SP-1000 D525 Intel® Atom™ processor D425 (512K L2 Intel® Atom™ processor D525 (1M L2 CPU Type Cache, 1.80 GHz, single core ) Cache, 1.80 GHz, dual core ) 15” Active TFT color LCD, resolution 1024 x 768...
  • Page 52 Operating 0~+40˚C Temp Storage -20˚C~+60˚C Temperature Humidity 15%~80% Certification * specification subject to change without prior notice A P P E N D I X...
