SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
Instruction Manual book
2,050 mm
1,530 mm
:
:
5,9 kg
:
05 channels.
:
06 servos.
:
O.S.GT 22cc Gas.
ITEM CODE:BH 134
80.71 in.
60.24 in.
12.98Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAYLORCRAFT BH 134 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model TAYLORCRAFT BH 134

Summary of Contents for Black Horse Model TAYLORCRAFT BH 134

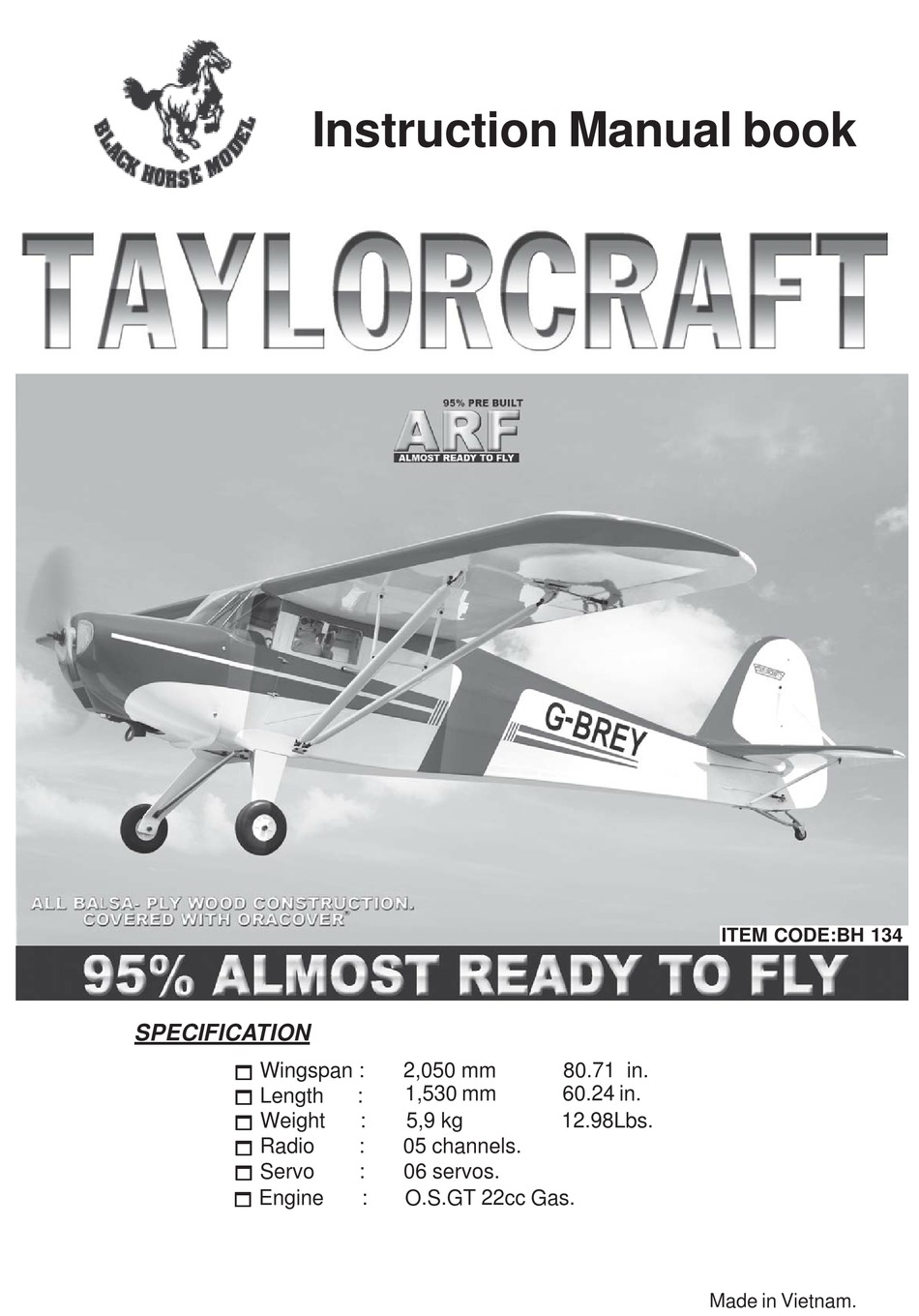

  • Page 1 Instruction Manual book ITEM CODE:BH 134 SPECIFICATION      Wingspan : 2,050 mm 80.71 in.      Length 1,530 mm 60.24 in.      Weight 5,9 kg 12.98Lbs.      Radio 05 channels.

  • Page 2: Parts List

    TAYLORCRAFT Instruction Manual - Item code: BH 134 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your TAYLORCRAFT. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Wing warp: Hold the panel twisted Caution: this model is not a toy! gently in the opposite If you are a beginner to this type of powered direction to the warp, and model, please ask an experienced model flyer apply warm air to remove for help and support.

  • Page 4: Installing The Aileron Servo

    TAYLORCRAFT Instruction Manual - Item code: BH 134 REPLACEMENT SMALL PARTS I. SERVO 1. Aluminium landing gear.(1a,1b) 1.INSTALLING THE AILERON SERVO. 2. Wheels.  1. Install the rubber grommets and brass eyelets onto the aileron servo. 3.Plastic parts for landing gear. 4.
  • Page 5 TAYLORCRAFT Instruction Manual - Item code: BH 134   2. Using a modeling knife, remove the cov- ering servo tray. Electric wire. Servo tray. Thread. Remove covering Servo tray.  5. Instal servo tray with aileron servo into the wing as same as picture below. 2x10mm.

  • Page 6: Installing The Aileron Linkages

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Install aileron control horn as same as picture below. 3x10mm Attach the clevis to the outer hole in the A+B Epoxy control horn. PLUS Secure A+B Epoxy PLUS Control horn of the aileron Bottom side 3.INSTALLING THE AILERON LINKAGES .

  • Page 7: Wing Struts Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134 WING STRUTS INSTALLATION Secure. 3 x 8 m m bend 90 degree. 3x8mm Secure. bend 90 d e g r e e Secure.
  • Page 8 TAYLORCRAFT Instruction Manual - Item code: BH 134 bend 80 degree. bend 80 d e g r e e Secure 3x8mm. 86mm 3 x 8 m m 3 x 8 m m 92mm 3 x 8 m m 3x10mm S e c u r e . Secure 3x10mm.

  • Page 9: Installing The Engine Mount

    TAYLORCRAFT Instruction Manual - Item code: BH 134 INSTALLING THE ENGINE MOUNT. Secure 3x10mm. See pictures below: 4x 30mm 4x 30mm Secure 3x8mm. Bottom side Drill hole 4mm diametter. Repeat the procedure for the other wing half. Bottom side...

  • Page 10: Installing The Engine

    TAYLORCRAFT Instruction Manual - Item code: BH 134 INSTALLING THE ENGINE MOUNT. Drill a hole 4mm diameter. INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z”...

  • Page 11: Installing The Stopper Assembly

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Pushrod choke. FUEL TANK. INSTALLING THE STOPPER ASSEMBLY Pushrod choke.  1. The stopper has been pre-assembled at the factory.  2. Using a modeling knife, cut one length of silicon fuel line (the length of silicon fuel line is calculated by how the weighted clunk should rest about 8mm away from the rear of the tank and move freely inside the tank).
  • Page 12 TAYLORCRAFT Instruction Manual - Item code: BH 134  6. When satisfied with the alignment of the  4. Carefully bend the third nylon tube down at a 45 degree angle (using a cigarette lighter). stopper assembly tighten the 3mm x 20mm This tube will be vent tube to the fueling valve.
  • Page 13 TAYLORCRAFT Instruction Manual - Item code: BH 134 Do not secure the tank into place perma- INSTALLING THE THROTTLE PUSHROD. nently until after balancing the airplane. You may need to remove the tank to mount  1. Install one adjustable metal connector the battery in the fuel tank compartment.
  • Page 14 TAYLORCRAFT Instruction Manual - Item code: BH 134 C/A glue. Secure. COWLING.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Top side. Pushrod c h o k e .
  • Page 15 TAYLORCRAFT Instruction Manual - Item code: BH 134 Trim and cut Drill a hole 2.5mm diameter Right side. Bottom side. 3 x 12mm  3. Slide the cowl back over the engine and secure it in place using three screws. See secure.

  • Page 16: Horizontal Stabilizer Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Front view Throttle servo Elevator servo ELEVATOR INSTALLATION SERVO INSTALLATION  1. Install the rubber grommets and brass Elevator servo collets into the elevator servo. Test fit the servo into the servo tray. ...
  • Page 17 TAYLORCRAFT Instruction Manual - Item code: BH 134 Right side. 9 mm 243 mm Bottom side. 4x12mm...

  • Page 18: Elevator Pushrod Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134 S e c u r e . Bottom side. S e c u r e . Control horn of elevator. S e c u r e . ELEVATOR PUSHROD INSTALLATION. Elevator pushrod install as same as the way of aileron pushrod.

  • Page 19: Rudder Servo Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134 RUDDER SERVO INSTALLATION. E l e v a t o r E l e v a t o r pushrod. pushrod. Rudder servo install as same as method of elevator servo. See picture below: Rudder servo.

  • Page 20: Rudder Control Horn Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134  1. Put the rudder into the fuselage as same as picture below. A+ B Epoxy PLUS glue. RUDDER CONTROL HORN INSTALLATION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 21: Rudder Cable Installation

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Rudder control horn. RUDDER CABLE INSTALLATION.  1. Rudder push - pull system install as same as picture below. 3x 10 mm Rudder pushrod Secure. MOUNTING THE TAIL WHEEL BRACKET.      1) Set the tail wheel assembly in place on the plywood plate.
  • Page 22 TAYLORCRAFT Instruction Manual - Item code: BH 134 Drill a hole Secure. Secure.
  • Page 23 TAYLORCRAFT Instruction Manual - Item code: BH 134 Vertical Stabilizer Struts. 3 x 8 m m . 3x8mm 3x25mm Secure. Bottom side. Bottom side. 3x8mm Top side.
  • Page 24 TAYLORCRAFT Instruction Manual - Item code: BH 134 Top side. 3x25mm Bottom side. S e c u r e 3x25mm. 3x25mm S e c u r e 3x25mm. Bottom side.
  • Page 25 TAYLORCRAFT Instruction Manual - Item code: BH 134 Plastic parts for elevator pushrod and MAIN GEAR INSTALATION. rudder cable. PARTS REQUIRED  1) Assemble and mounting the wheel pants as shown in the following pictures. 5x40mm 3x10mm 4x6mm Bottom side. C/A glue.
  • Page 26 TAYLORCRAFT Instruction Manual - Item code: BH 134 Landing gear Mark line.  2) Using the hardware provided, mount the Remove main landing gear to the fuselage. covering. Secure Epoxy glue. Bottom side. C/A glue. 4x12mm...
  • Page 27 TAYLORCRAFT Instruction Manual - Item code: BH 134 3x10mm Secure 3x10mm 4x12mm Secure 4x6mm. Secure. Bottom side. 3x10mm. 4x6mm. 5x40mm.

  • Page 28: Installing The Switch

    TAYLORCRAFT Instruction Manual - Item code: BH 134 Bottom side. INSTALLING THE SWITCH.       1. Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side. ...
  • Page 29 TAYLORCRAFT Instruction Manual - Item code: BH 134 INSTALLING THE COCKPIT. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch See pictures below: lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .

  • Page 30: Wing Attachment

    TAYLORCRAFT Instruction Manual - Item code: BH 134 WING ATTACHMENT. Locate the aluminium wing dihedral brace. aluminium 19mm 705 mm. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.
  • Page 31 TAYLORCRAFT Instruction Manual - Item code: BH 134 Top side. Left side. 3x15mm. Secure. Secure.
  • Page 32 TAYLORCRAFT Instruction Manual - Item code: BH 134 BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 100MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 33: Control Throws

    TAYLORCRAFT Instruction Manual - Item code: BH 134 CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
