INSTRUCTION MANUAL XX178-10
VC-700W and VC-700WC
COLOR DOME CAMERAS
About this manual
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for later reference.
This installation should be made by a qualified service person and should conform
to the National Electric Code, ANSI/NFPA 70 and all local codes.
Installers should use appropriate hardware mounting materials.
Advertisement
Table of Contents
Related Manuals for Vicon VC-700W
Summary of Contents for Vicon VC-700W

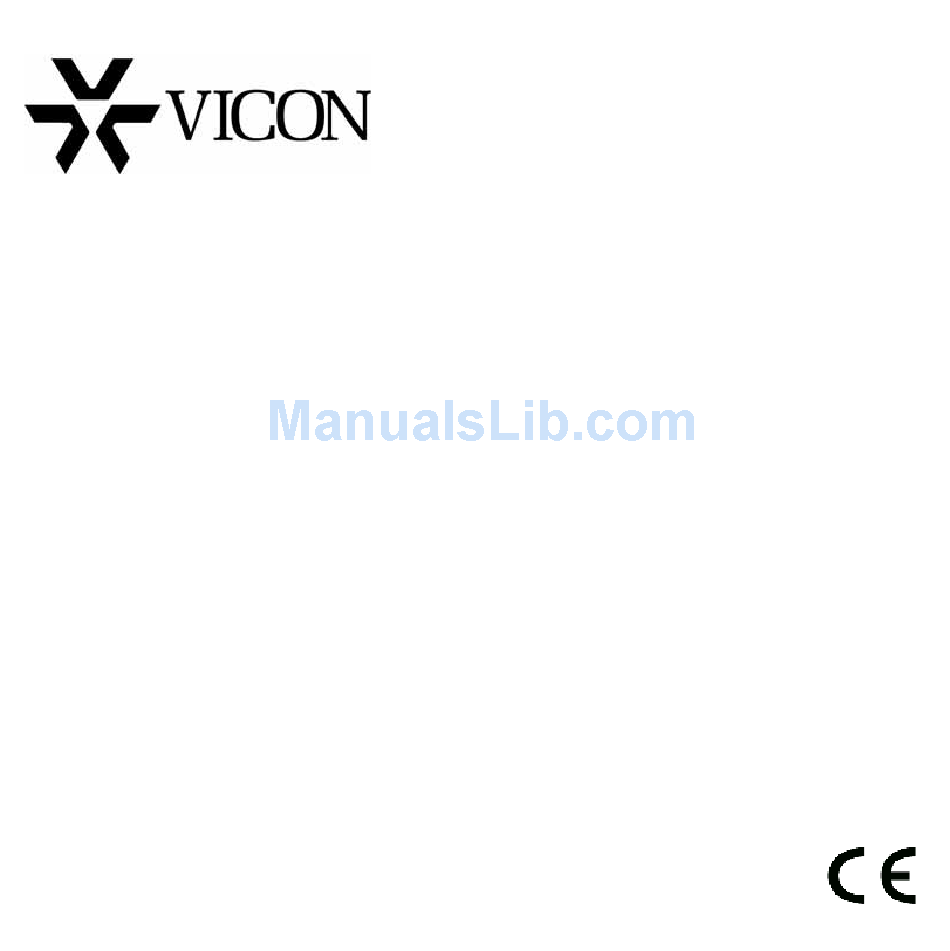

- Page 1 INSTRUCTION MANUAL XX178-10 VC-700W and VC-700WC COLOR DOME CAMERAS About this manual Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference. This installation should be made by a qualified service person and should conform to the National Electric Code, ANSI/NFPA 70 and all local codes.
-
Page 2: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. - Page 3 The user may find the following booklet prepared by the Federal Communications Commission helpful: “Interference Handbook, Bulletin CIB-2” This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1. Warning : Power must be removed from this unit before removing circuit modules or cables.
- Page 4 Dimensions : inch (mm) Surface-Mount configuration In-Ceiling configuration...
- Page 5 PRECAUTIONS ■ Do not open or modify Do not open the case except during maintenance and installation, as it may be dangerous and cause damages. ■ Do not put objects inside the unit Make sure that no metal objects or flammable substances get inside the camera.
-
Page 6: Troubleshooting
TROUBLESHOOTING Before sending the camera out for repair, check the items below. If the problem persists after checking these items, contact your service center. ■ If no image appears ▪ Is the coaxial cable attached securely? ▪ Are the power and voltage normal? ▪... -
Page 7: Lens Adjustment
LENS ADJUSTMENT ROLL SCREW (2X) TILT ZOOM 90˚ FOCUS 1. Adjust the panning (360˚) and tilt (90˚) position. 2. Set the zoom position by using Zoom Lever Screw. 3. Set the focus by using Focus Lever Screw. 4. Loosen set screws (using small M1.0 Hex L-wrench provided) to adjust roll (turns camera position top/bottom). - Page 8 SPECIFICATION - VC-700W/C SERIES General Spec NTSC HQ Interline Transfer CCD 1/3" 410K Pixels Color 1/3" 470k Pixels Color Total Number of Pixels 811(H) X 508 (V) 795(H) X 596(V) Scanning System 525 Lines 625 Lines Horizontal Resolution 550TV Lines Sensitivity to Light [30IRE] 0.04fc, 0.4Lux(Scene) With F1.2 Lens...
- Page 9 SPECIFICATION - VC-700W-IR/C SERIES General Spec NTSC HQ Interline Transf er CCD 1/3" 410K Pixels Color 1/3" 470k Pixels Color Total Number of Pixels 811(H) X 508 (V) 795(H) X 596(V) Scanning System 525 Lines 625 Lines 550TV Lines Horizontal Resolution Sensitivity to Light [30IRE] BW, NO LED : 0.004fc, 0.04Lux(Scene) With F1.2 Lens...
- Page 10 SPECIFICATION - VC-700WDN/C SERIES General Spec NTSC HQ Interline Transfer CCD 1/3" 410K Pixels Color 1/3" 470k Pixels Color Total Number of Pixels 811(H) X 508 (V) 795(H) X 596(V) Scanning System 525 Lines 625 Lines Horizontal Resolution 550TV Lines Sensitivity to Light [30IRE] Color : 0.04fc, 0.4Lux(Scene) With F1.2 Lens BW : 0.004f c, 0.04Lux(Scene) With F1.2 Lens...
- Page 11 CONNECTIONS 12VDC-24VAC RED (+) BLACK (-) 11.8in (300m 12VDC-24VAC RED (+) BLACK (-) CAUTION The use of a UL Listed Class 2 power supply is required to ensure compliance with electrical safety standards. Check for polarity when using a 12 VDC power supply. Cable for connection to portable monitor, provided.
- Page 12 In-Ceiling Base Surface-Mount Base...
-
Page 13: Camera Settings
CAMERA SETTINGS ■ CAMERA SETTINGS FOR VC-700W SERIES (1) BLC (2) ME/AE (3) AWB (4) AGC (5) DC Iris volum e (6) 2nd Video out (7) Line Lock... - Page 14 (1) Compensating for backlight When back light is too bright Normal setting CAUTION : This can also be set correctly by adjusting DC Lens control (5). (2) Confirming the iris setting The default setting when DC autoiris lens is installed The default setting when fixed iris lens is installed CAUTION : The iris setting is preadjusted to the best condition for use at time of factory shipment;...
- Page 15 (5) Adjusting level control If the entire image is too dark or bright, or the backlight compensation is not correct even after (1) is set to "ON," adjust the iris level. CCW (Low) Closes the lens iris, making the entire image darker CW(High) Opens the lens iris, making the entire image brighter (6) Second VIDEO OUT connector...
-
Page 16: Installation
INSTALLATION 2.46(R62.5) 2.30(R58.5) 4-0.17(Θ4.3) 2.46(R62.5) 2.30(R58.5) 360˙... - Page 17 The VC-700W can be either mounted to a surface (like a ceiling or wall) or installed into the ceiling, with or without an electrical box. Use the large (Torx T20) L-Wrench to loosen the 4 screws (B) securing the dome assembly.
- Page 18 New Territories, Phone: +49 (0) 4321 8790 Hong Kong (852) 2145-7118 Fax: +49 (0) 4321 879 47 Fax: (852) 2145-7117 Internet Address: www.vicon-cctv.com Vicon Part Number 8009-8178-10-01 Rev 609 ©Copyright 2009, Vicon Industries Inc. Product specifications subject to change without notice.
