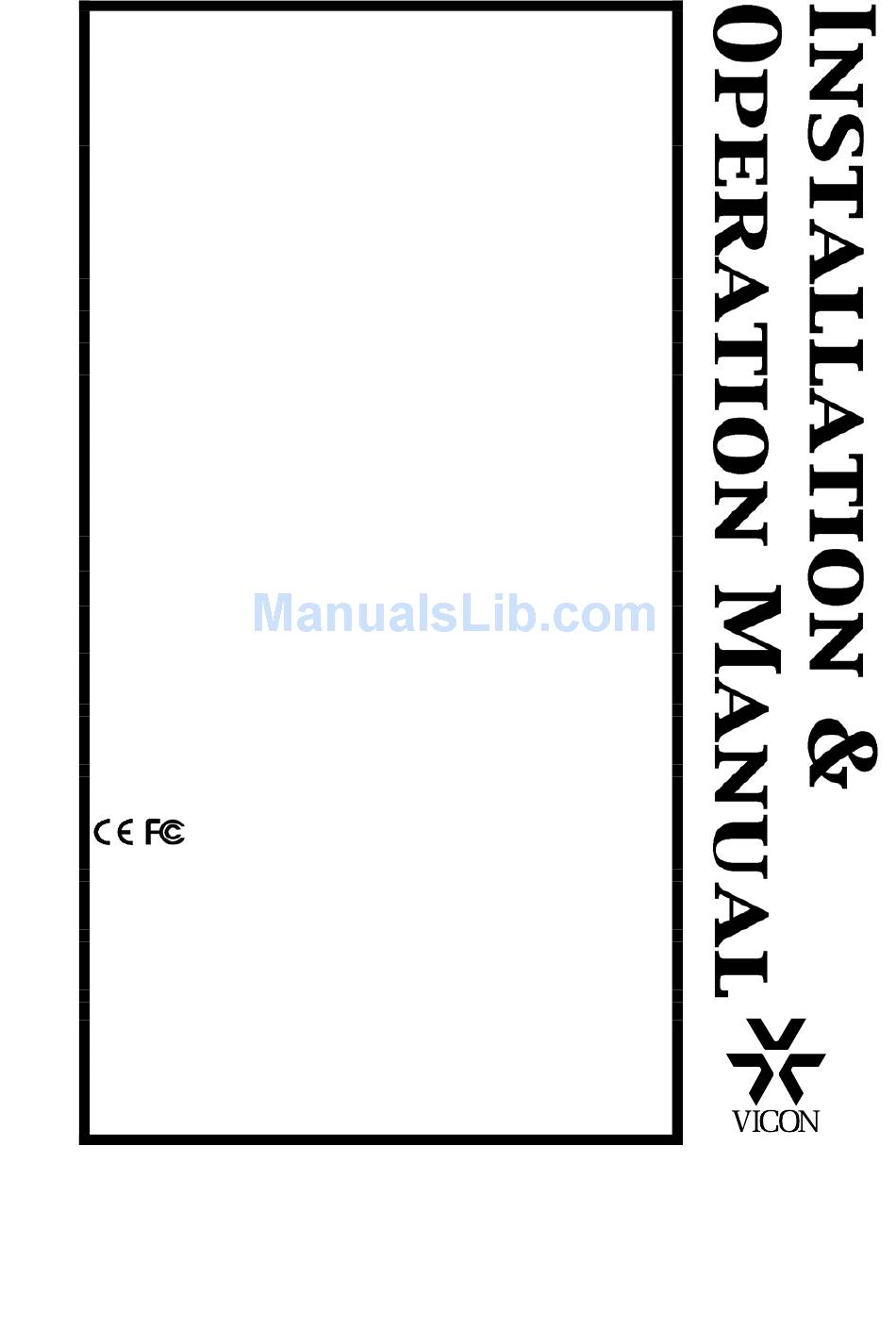

XX131-02-00
VC367DSP AND VC367C-DSP
DIGITAL COLOR CAMERAS
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not
be used for this purpose.
Warning: To prevent fire or shock hazard, do not expose the unit to rain
or moisture.
Copyright © 2008 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288)
TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8131-02-00
Rev 1208
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon VC367DSP
Summary of Contents for Vicon VC367DSP
- Page 1 VC367DSP AND VC367C-DSP DIGITAL COLOR CAMERAS Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 3: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. -
Page 4: Important Safeguards - Indoor Use
Important Safeguards – Indoor Use GRAPHIC SYMBOL EXPLANATION 11. Power Cord Protection - Power supply cords should not The lightening bolt symbol alerts the user to the presence of be routed in trafficked areas or in tight spaces where they will dangerous voltage that may present the risk of electric shock. - Page 5 PRECAUTIONS 1. Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. 2. Do not attempt to disassemble the camera. In order to prevent electric shock, do not remove screws or cover.
-
Page 6: Packing List
PACKING LIST 1. Iris lens connector plug for DC or VIDEO drive – 1pc 2. Dust protective cap - 1pc 3. Manual – 1pc XX131-02-00 Rev 1208 VC367-DSP Camera... -
Page 7: Connectors And Controls
CONNECTORS AND CONTROLS Caution: 1. Only use 12 VDC (or 24 VAC) UL listed class2 power transformer. 2. To prevent fire or shock hazard, UL listed wire VW-1, style 1007, should be used for the cable for DC 12V(or AC 24V) input terminal. ①... - Page 8 ③ Auto-iris lens connector for DC or VIDEO drive lens Use of a DC drive lens: It supplies the control signals to the DC drive autoiris lens. When using a DC drive lens, set DC and VIDEO drive select switch (switch ↓) to DC drive and MODE SELECT SWITCH 4 (ALC/ELC) to ALC MODE.
- Page 9 ⑥ ALC level adjustment potentiometer for DC drive lens This potentiometer is used only if the camera is fitted with a DC drive autoiris lens. It is used to control the amount of light striking the CCD image sensor. LENS-IRIS level LEVEL Monitor Screen LEVEL Control Direction...
- Page 10 3. When operating in ELC mode with a manual iris lens, the depth of field of the image may be less than that obtained by using an ALC lens. Depth of field varies inversely with the iris opening. Thus, using this camera in ELC mode with the manual iris lens fully opened may result in less depth of field and the distant objects in picture may be seen out of focus.
- Page 11 4. FL ON switch (FLICKERLESS ON/OFF) This function is only used in JAPAN. When the DIP switch on the rear panel is set to ON, the shutter speed is fixed at a rate of 1/100 (120) (sec). 5. Motion Detect ON/OFF mode This camera has built-in the performance of motion detect.
-
Page 12: Technical Information
Technical Information VC367DSP V-367C-DSP MODEL Interline 1/3" 410,000 pixels HAD- CCD IMAGE DEVICE NTSC : 768(H) x 494(V) PAL : 752(H) x 582(V) TV SYSTEM NTSC/PAL standard, 2:1 interlace SYNCHRONIZING SYSTEM Internal HORIZONTAL RESOLUTION 540 TV lines VIDEO OUTPUT LEVEL... - Page 13 DIMENSIONS XX131-02-00 VC367-DSP Camera...
-
Page 14: Connection Examples
CONNECTION EXAMPLES 1. Simplest: one monitor system with one camera CAMERA VIDEO COAXIAL CABLE 12 VDC/24 VAC XX131-02-00 Rev 1208 VC367-DSP Camera... - Page 15 EXAMPLES OF CONNECTIONS - continued 2. One monitor system with two or more cameras CAMERA VIDEO COAXIAL CABLE VIDEO COAXIAL CABLE 12 VDC/24 VAC INPUT CAMERA SEQUENTIAL VIDEO COAXIAL CABLE SWITCHER 12 VDC/24 VAC INPUT CAMERA VIDEO COAXIAL CABLE 12 VDC/24 VAC INPUT XX131-02-00 VC367-DSP Camera...
- Page 16 BACKFOCUS ADJUSTMENT THUMBWHEEL This thumbwheel is used to position the CCD image sensor at the precise point of focus of the lens. Back-Focusing Fixed-Focal-Length Lenses 1. Install a lens and connect the camera to a monitor and power supply as described elsewhere in this manual.
-
Page 17: Shipping Instructions
Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. Vicon Industries Inc. 89 Arkay Drive Hauppauge, NY 11788 Phone: 631-952-CCTV (2288);... -
Page 18: Coaxial Cable Recommendations
Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms. Materials Use only a pure copper center conductor. - Page 19 Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase.
- Page 20 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...
