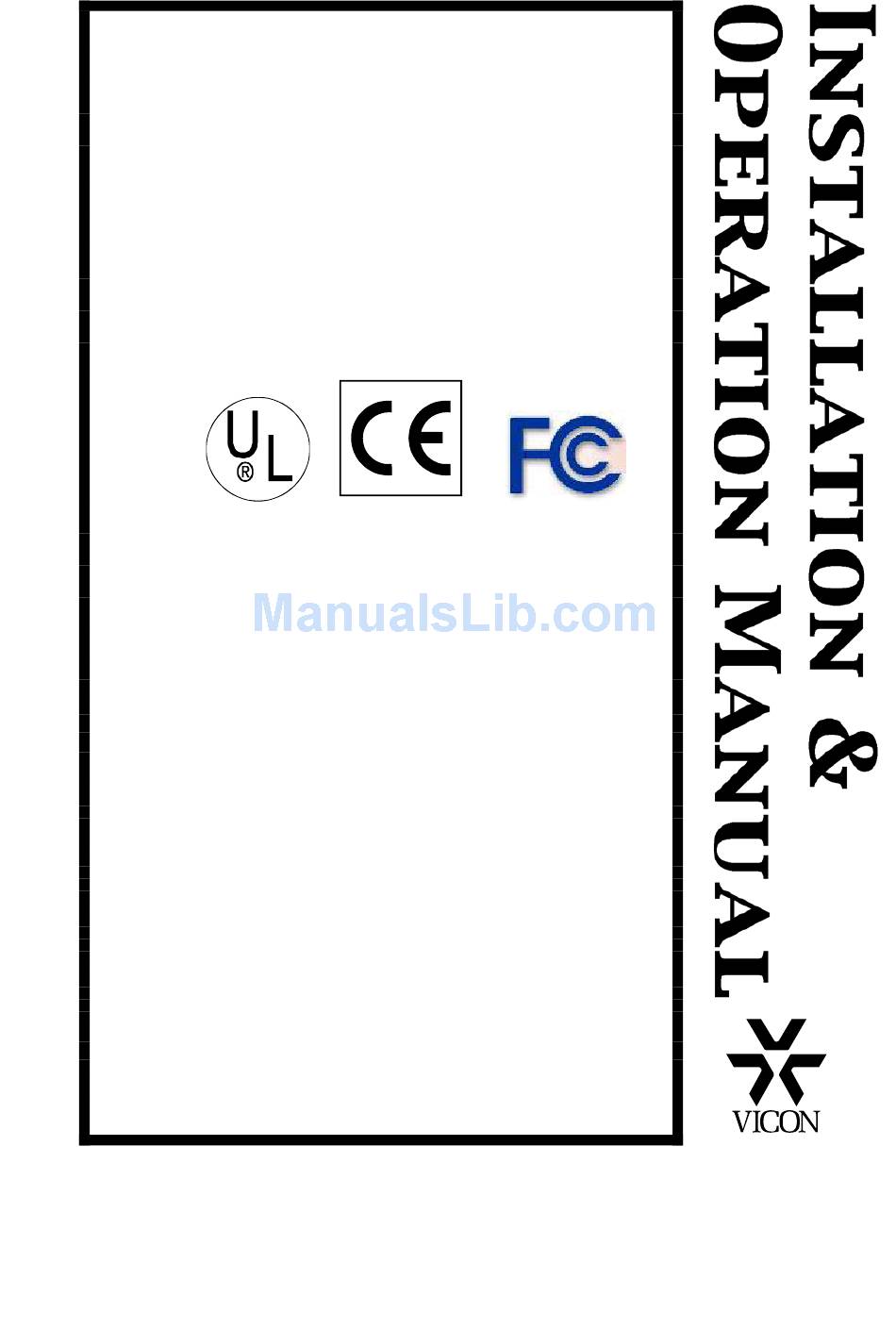

Vicon VC-632 Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XX168-10-00
VC-632 AND VC-632C
DAY/NIGHTCOLOR CAMERAS
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not
be used for this purpose.
Warning: To prevent fire or shock hazard, do not expose the unit to rain
or moisture.
Copyright © 2005 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288)
TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8168-10-00
Rev 1005
Section 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC-632 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon VC-632

Summary of Contents for Vicon VC-632

  • Page 1 VC-632 AND VC-632C DAY/NIGHTCOLOR CAMERAS Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 3: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 5: Important Safeguards

    8. Accessories - Do not place the unit on an unstable surface 22. ESD Precaution - Take all normal electrostatic discharge to avoid falling. Use only Vicon recommended mounting accessories. precautions to avoid component damage during installation and operation.
  • Page 6 UL Listed Class 2 power transformer. 9. Only use a Listed Class 2 power source. Caution: To prevent fire or shock hazard, UL listed wire VW-1, style 1007 should be used for the cable. XX168-10-00 Rev 1005 VC-632 Camera...

  • Page 7: General Description And Features

    1. General Description and Features General Description The VC-632 is a Wide Dynamic Range (WDR) Day/Night Camera that has 1/3 SuperHAD CCD. The VC-632 displays an excellent video image where bright environments as well as dark environments exist at the same time.

  • Page 8: Specifications

    APPROX 1.1 LB (500g) DIMENSIONS (W x H x D) 2.4 in. x 2.0 in. x 5.0 in. (60mmx 50mmx 126.5mm) Note: In order to improve the function of camera, the specification can be modified without prior notice. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 9 7. Be careful not to drop the camera. It may cause critical damage to camera and person. 8. Use only recommended accessories. 9. Before installation, check the camera to see if it’s OK. 10. Use UL listed wire VW-1, Style 1007 cable against fire or danger. XX168-10-00 Rev 1005 VC-632 Camera...

  • Page 10: Components And Functions

    -1: Motion Detection Output connector -2: External Illumination Sensor Input connector -3: RS-485 Input connector -4: Day/Night Output connector ⑦ DC Drive Lens connector ⑧ C-Mount Lens adaptor ⑨ CCD cover ⑩ Back Focus control screw ⑪ Mounting hole XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 11 Average (AV) and Peak (PK). In ALC mode, AV mode is recommended with Video Drive lens. 3) When DC Drive Lens is used: Connect each lens pin to lens connector plug and connect lens to 4-pin lens connector. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 12 Adjust the zoom of lens toward TELE and the focus ring until the object displays clearly. Adjust the zoom of lens toward WIDE maximum and turn back focus screw with screwdriver until the object displays clearly. Repeat steps 1) and 2) until focus is clear at both TELE and WIDE. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 13 (Day: Open contact, Night: Close contact) If day/night output connector is connected with ④, mode changes to B/W and the signal is sent to activate external IR lamp. Day/night output connector: less than 5 VDC, 10mA. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 14 4. Installation 1) Open the CCD dust cover and connect lens. 2) Adjust the camera using the menu system. 3) Connect power, 24 VAC or 12 VDC. 4) Basic connection method: XX168-10-00 Rev 1005 VC-632 Camera...

  • Page 15: Motion Det

    SLOW SHUTTER AUTO LEVEL, DURATION, EXT SENSOR, SLOW MOTION DET (ON/OFF) MOTION DETECTION PRIVACY PRIVACY DISPLAY ON/OFF /PZ4) (PZ1/PZ2/PZ3 MANUAL MANUAL, RED, BLUE (ATW1/ATW2/AWC/MANUAL) SYNC L/L PHASE (INT/LL) SPECIAL D-ZOOM, REVERSE, POSI/NEGA, SHARPNESS EXIT (QUIT/SAVE/PRESET) XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 16 In Lens Menu, select MANUAL using “left/right” key and press “Enter”. In the following screen, adjust the brightness level using “up/down” key. (ELC) CAM ID LENS MANUAL4 DAY/NIGHT COLOR4 MOTION DET PRIVACY PZ14 ATW1 SYNC LEVEL SPECIAL EXIT QUIT XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 17 When Manual mode is selected in Lens Menu, set up of Shutter and Flickerless is not available. CAM ID (COLOR) LENS MANUAL4 DAY/NIGHT COLOR4 MOTION DET PRIVACY PZ14 SHUTTER ATW1 HIGH SYNC FLICKERLESS SPECIAL EXIT QUIT XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 18 In the screen that follows, select Level (BW change), Duration (time) and Ext sensor. CAM ID (IR CHANGE) LENS MANUAL4 DAY/NIGHT AUTO14 MOTION DET PRIVACY PZ14 LEVEL ATW1 EXT SENSOR SYNC DURATION SPECIAL EXIT QUIT XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 19 2) As illumination continues to decrease, Day Mode changes to Night Mode and Frame Integration mode follows. (MIXED CHANGE) CAM ID LENS MANUAL4 DAY/NIGHT AUTO34 MOTION DET LEVEL PRIVACY PZ14 DURATION ATW1 EXT SENSOR SYNC S_SHUTTER SPECIAL EXIT QUIT Additional functions are same as AUTO 1 and AUTO 2. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 20 Under fluorescent light, abnormal functioning can occur. When light changes quickly (light turned on/off, headlight of an automobile), abnormal functioning can occur. This function is useful for surveillance, but not for prevention of fire or detecting a thief. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 21 If right key is pressed, position of zone moves in right direction. If up key is pressed, position of zone moves in upward direction. If down key is pressed, position of zone moves in downward direction. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 22 When the environment is changed, new setting is needed using the same method. CAM ID CAM ID LENS MANUAL4 LENS MANUAL4 DAY/NIGHT AUTO34 DAY/NIGHT AUTO34 MOTION DET MOTION DET PRIVACY PZ14 PRIVACY PZ14 WAIT SYNC SYNC SPECIAL SPECIAL EXIT QUIT EXIT QUIT XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 23 EXIT QUIT In Phase mode, Phase (0 ~ 255) is selectable. **Caution** With 24 VAC, 60 Hz, LL mode is used. With 12 VDC, SYNC menu is N.A and camera is fixed at INT mode. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 24 At high level, outline is clear; however, with a too high level, noise can occur. EXIT Exit Menu is used to close the menu. The menu is setup with 3 choices (Quit, Save, Preset). CAM ID LENS MANUAL4 DAY/NIGHT AUTO34 MOTION DET PRIVACY PZ14 SYNC SPECIAL EXIT QUIT XX168-10-00 Rev 1005 VC-632 Camera...

  • Page 25: Remote Control

    BYTE2 : Address command BYTE3 : Function command Command Description SETUP MENU COMMAND BYTE ENTER DOWN RIGHT LEFT **Caution** If incorrect data format is used or RS-485 connection is not correct, camera function may be abnormal. XX168-10-00 Rev 1005 VC-632 Camera...
  • Page 26 8. DIAGRAM XX168-10-00 Rev 1005 VC-632 Camera...

  • Page 27: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 28: Coaxial Cable Recommendations

    Let the required picture quality and cable distance provide a guide in choosing the best cable type. For cables other than the approved Vicon types below, contact the manufacturers listed below. Note that “BC” refers to bare copper and “TC” refers to tinned copper.

  • Page 29: Vicon Standard Equipment Warranty

    (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes to its software in any of its products at any time and without notice.
  • Page 30 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...
