Product Description:

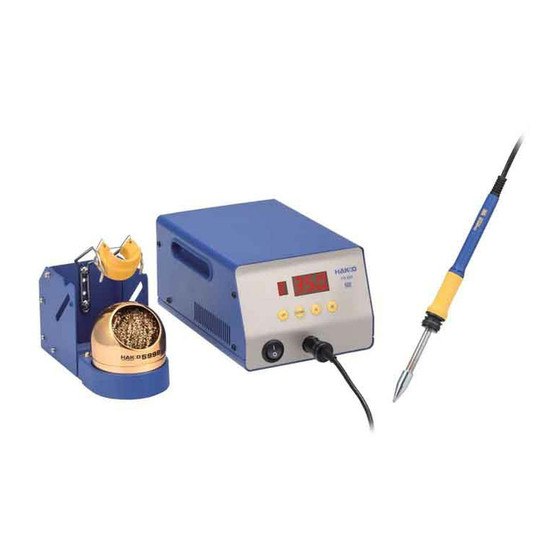

HAKKO FX‐801 Ultra Heavy Duty
Soldering Station and T33 Series
Soldering Tips
Part No:
FX801‐02, T33‐BC2, T33‐BC3, T33‐BC4,
T33‐BC5, T33‐BC6, T33‐D24, T33‐D32,
T33‐D5, T33‐D6
Specification:
Model
Part No.
Input Voltage
Power
Consumption
Temperature
Range
Temperature
Stability
ESD Safe
Safety Approval
Specifications continued on Page 2
American Hakko Products, Inc.
FX‐801
FX801‐02
120 VAC 50/60 Hz
300W
50°C – 500°C (120°F – 940°F)
±5°C (±9°F) at idle
Yes
28920 Avenue Williams ∙ Valencia ∙ California 91355
Tel 661.294.0090 ∙ Fax 661.294.0096 ∙ www.HakkoUSA.com
Contents:
Part No.
‐‐
FX‐801 UHD Soldering Station
FX8002‐81
FX‐8002 Soldering Handpiece
FH200‐83
FH‐200 Holder w/599B Tip
B3253
Sleep Connection Cable
B2300
Heat Resistant Pad
B2419
‐‐
Instruction Manual
Description
Cleaner
Power Cord
AHP14 Rev 2012-11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hakko Electronics FX?801
Summary of Contents for Hakko Electronics FX?801

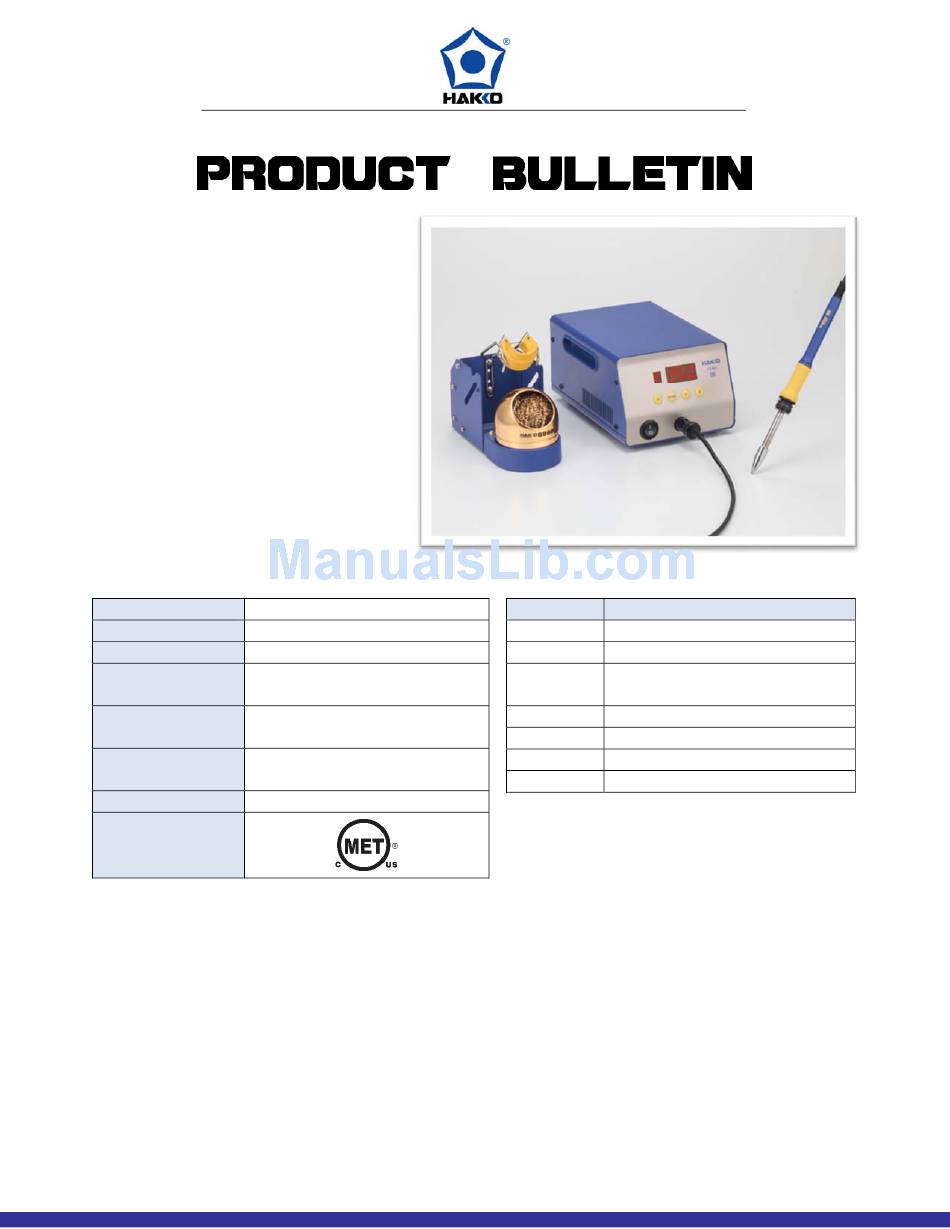

- Page 1 American Hakko Products, Inc. Bulletin No: PB366 Issue Date: 6‐23‐2015 Available: 7‐7‐2015 Product Description: HAKKO FX‐801 Ultra Heavy Duty Soldering Station and T33 Series Soldering Tips Part No: FX801‐02, T33‐BC2, T33‐BC3, T33‐BC4, T33‐BC5, T33‐BC6, T33‐D24, T33‐D32, T33‐D5, T33‐D6 Specification: Contents: Model FX‐801 Part No. Description Part No. FX801‐02 ‐‐ FX‐801 UHD Soldering Station Input Voltage 120 VAC 50/60 Hz FX8002‐81 FX‐8002 Soldering Handpiece Power FH200‐83 FH‐200 Holder w/599B Tip 300W Consumption Cleaner ...
- Page 2 American Hakko Products, Inc. Specifications (continued): Station Output Voltage 29 V Outer Dimension (W x H x D) 145 x 107 x 211 mm (5.7 x 4.2 x 8.3 in.) Weight (w/o Cord) 3.9 kg (8.6 lb.) Handpiece Model FX‐8002 Part No. FX8002‐81 Power Consumption 260W (29V) Tip‐to‐Ground Resistance < 2 ohms Tip‐to‐Ground Potential < 2 mV Heater Composite Ceramic Cartridge Tips T33 Series Cord Length 1.2 m (4 ft.) 2 Total Length (w/o Cord) 228 mm (9.0 in.) 2 Weight (w/o Cord) 50 g (0.11 lb.) 1 ...
- Page 3 American Hakko Products, Inc. Comments: The HAKKO FX‐801 Ultra Heavy Duty (UHD) Soldering Station is specially designed for the difficult soldering of extremely large mass components such has high current inductor coils, heat sinks, large transformers, shields, and other connections where there is a significant amount of thermal inertia that must be overcome. The station uses T33 Series Tips that feature 260W composite ceramic heating elements that have a top controlled temperature of 500°C (940°F) and high mass shapes. This combination allows for soldering some of the most challenging solder joints at only 400°C (750°F)… even without preheating! The station also features up to 6 user programmable preset temperatures and process control lockout with password protection. This helps ensure that only the appropriate soldering iron temperatures are being used and avoids inadvertent changes to the system. Like other HAKKO soldering stations, the quality and construction of HAKKO brand tips lend the renowned reputation for long tip life to this new series of massive soldering iron tips. The soldering iron holder also includes the standard sleep and auto power off features as well as low temperature alarms. The station also features a large and extremely simple to read display. For more information please visit us at www.HakkoUSA.com AHP14 Rev 2012-11 28920 Avenue Williams ∙ Valencia ∙ California 91355 Tel 661.294.0090 ∙ Fax 661.294.0096 ∙ www.HakkoUSA.com ...
