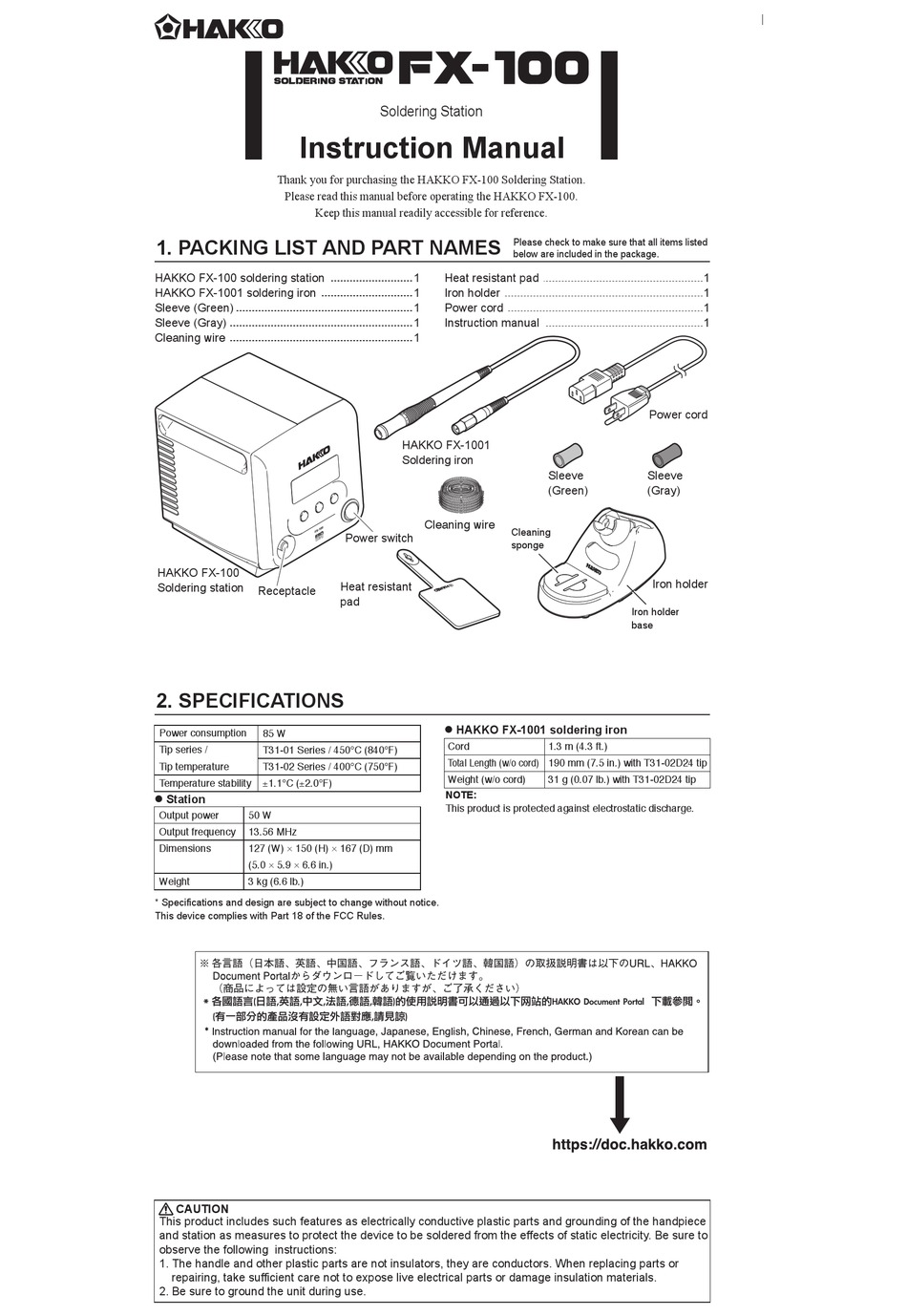

Instruction Manual
Thank you for purchasing the HAKKO FX-100 Soldering Station.
Please read this manual before operating the HAKKO FX-100.
Keep this manual readily accessible for reference.
1. PACKING LIST AND PART NAMES
HAKKO FX-100 soldering station
HAKKO FX-1001 soldering iron
Sleeve (Green)
Sleeve (Gray)
Cleaning wire
HAKKO FX-100
Soldering station
Receptacle
2. SPECIFICATIONS
Power consumption
85 W
Tip series /
T31-01 Series / 450℃ (840℉)
Tip temperature
T31-02 Series / 400℃ (750℉)
Temperature stability
±1.1℃ (±2.0℉)
 Station
Output power
50 W
Output frequency
13.56 MHz
Dimensions
127 (W) × 150 (H) × 167 (D) mm
(5.0 × 5.9 × 6.6 in.)
Weight
3 kg (6.6 lb.)
* Specifications and design are subject to change without notice.
This device complies with Part 18 of the FCC Rules.
CAUTION
This product includes such features as electrically conductive plastic parts and grounding of the handpiece
and station as measures to protect the device to be soldered from the effects of static electricity. Be sure to
observe the following instructions:
1. The handle and other plastic parts are not insulators, they are conductors. When replacing parts or
repairing, take sufficient care not to expose live electrical parts or damage insulation materials.
2. Be sure to ground the unit during use.
Soldering Station
1
Heat resistant pad
1
Iron holder
1
Power cord
1
Instruction manual
1
HAKKO FX-1001
Soldering iron
Cleaning wire
Cleaning
Power switch
sponge
Heat resistant
pad
 HAKKO FX-1001 soldering iron
Cord
Total Length (w/o cord)
Weight (w/o cord)
NOTE:
This product is protected against electrostatic discharge.
Please check to make sure that all items listed
below are included in the package.
Power cord
Sleeve
Sleeve
(Green)
(Gray)
Iron holder
Iron holder
base
1.3 m (4.3 ft.)
190 mm (7.5 in.) with T31-02D24 tip
31 g (0.07 lb.) with T31-02D24 tip
1
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-100-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Hakko Electronics FX-100-05

Summary of Contents for Hakko Electronics FX-100-05

  • Page 1 Soldering Station Instruction Manual Thank you for purchasing the HAKKO FX-100 Soldering Station. Please read this manual before operating the HAKKO FX-100. Keep this manual readily accessible for reference. 1. PACKING LIST AND PART NAMES Please check to make sure that all items listed below are included in the package.

  • Page 2: Warnings, Cautions, And Notes

    3. WARNINGS, CAUTIONS AND NOTES Warnings, cautions and notes are placed at critical points in this manual to direct the operator’s attention to significant items. They are defined as follows: WARNING: Failure to comply with a WARNING may result in serious injury or death. CAUTION : Failure to comply with a CAUTION may result in injury to the operator, or damage to the items involved.

  • Page 3: Initial Setup

    4. INITIAL SETUP A. Iron holder large sponge  This product includes two methods for cleaning the tip: a wire tip cleaner, and a sponge. Please be sure to soak the sponge in water before using. 1. Set the iron holder. small sponge 2.

  • Page 4: Operation

    5. OPERATION ● Operation 1. Turn ON the power switch. 2. The screen will switch in order of product number indication → greeting → home screen. 3. When the home screen is displayed, the MODE status is indicated on the left and output graph at the center.
  • Page 5 5. OPERATION ・When DSP (Display) is pressed The selected information will be displayed on the screen. The cursor moves by pressing the <↑> or <↓> ＳＨＯＷ ＰＲＯＦＩＬＥ button. The following items are displayed in order. ・ＳＨＯＷ ＰＲＯＦＩＬＥ ＳＨＯＷ ＴＩＰ ＬＯＡＤＳ ・ＳＨＯＷ ＴＩＰ ＬＯＡＤＳ ・ＳＨＯＷ ＴＩＰ ＴＩＭＥ ＳＨＯＷ ＴＩＰ ＴＩＭＥ ・ＳＥＬＥＣＴ ＰＲＯＦＩＬＥ ＜↑＞  ＜↓＞  ＜ＯＫ＞ ・ＴＩＰ ＴＹＰＥ ・＜ＣＡＮＣＥＬ＞ SHOW PROFILE The set profile information (Station, User, and Solder) is displayed. ＰＥＯＦＩＬＥ １ ＰＥＯＦＩＬＥ １ ＳＴＡＴＩＯＮ ＩＤ Ｓ：○○○○○ ＵＳＥＲ ＮＡＭＥ Ｕ：×××××× ＳＯＬＤＥＲ ＴＹＰＥ Ｓ：△△△△...

  • Page 6: Parameter Setting

    5. OPERATION TIP TYPE The tip type (450°C or 400°C) is displayed.  When MANUAL SET is selected, the screen changes to the one as shown in the lower right figure. Select  an appropriate number according to the tip to be used. Then, the tip type 01 (450°C) or 02 (400°C) is  displayed so that the tip type is clearly known.  When MANUAL SET is selected ＡＵＴＯ ＤＥＴＥＣＴ ＜０１＞ ＭＡＮＵＡＬ ＳＥＴ ＜０２＞ ＯＦＦ ＜０３＞ ＜↑＞  ＜↓＞  ＜ＯＫ＞ ＜↑＞  ＜↓＞  ＜ＯＫ＞ Display in the MANUAL SET mode (when T31-01 is selected) ＜０１＞ Ｎ When AUTO DETECT is selected, the tip type (type 01 (450°C) or type 02 (400°C)) is automatically detected. The  following conditions are required to detect the tip type.  Display in the AUTO DETECT mode (when T31-01 is selected) - The tip must be cold. - The tip must be placed on the soldering iron stand.   ０１ When the tip is frequently changed between type 01 and  Ｎ type 02, you can select AUTO DETECT. When you do not  need automatic detection because you use either type only,  you can select MANUAL SET. When you do not need any  display, you can select OFF. You can select any mode  depending on the usage.  NOTE: When AUTO DETECT is selected, 01 or 02 is displayed only when the soldering iron is  placed on the stand.  6. PARAMETER SETTING ・When SET is pressed Various settings can be changed. After changing the setting, setting change is reflected by selecting SAVE → OK. To escape without setting change, select CANCEL. パスワードロックの設定を行なっている場合、...
  • Page 7 6. PARAMETER SETTING DISPLAY The fashion in which the output graph is displayed can be changed. NORMAL: Histogram (rolling bar graph), EXPAND: Horizontal expanding graph, OFF: No display DISPLAY screen  When NORMAL is selected  ＮＯＲＭＡＬ ＥＸＰＡＮＤ Ｎ ＯＦＦ ＜↑＞  ＜↓＞  ＜ＯＫ＞ When OFF is selected When EXPAND is selected     Ｎ Ｎ ＬＯＣＫ Displayed when password lock is set  AUTO SLEEP The automatic sleep period can be set up. Sleep function is canceled by removing the solder iron from the  holder or pressing one of the 3 buttons. Setting AUTO SLEEP ＡＵＴＯ ＳＬＥＥＰ ＳＥＴ In the AUTO SLEEP mode, you can set the sleep     ０１ｍｉｎ time between 01 to 29 minutes. When 00 is set,  the sleep function is OFF     ＜↑＞  ＜↓＞  ＜ＯＫ＞ AUTO SHUTOFF The time to automatically turn off the soldering station can be set up. Electricity is stopped automatically when the solder iron is not used for the set period of time. SHUTOFF function is canceled by pressing one of the 3 buttons. Setting AUTO SHUTOFF ＡＵＴＯ−ＳＨＵＴＯＦＦ ＳＥＴ When the SHUT OFF time is set, the power     ＮＯＷ：３０ｍｉｎ supply stops when the soldering iron is not  used for the set period of time even though  the soldering iron is not placed on the stand. ...
  • Page 8 6. PARAMETER SETTING PROFILE The profile information can be set up. STATION ID: Station name, Asset ID, etc., PROFILE1,2: User name and solder information. PROFILE画面 When STATION ID is selected ＳＴＡＴＩＯＮ ＩＤ ＳＴＡＴＩＯＮ ＩＤ ＰＲＯＦＩＬＥ １ 〔              〕 ＰＲＯＦＩＬＥ ２ ＜↑＞  ＜↓＞  ＜ＯＫ＞  ＜↑＞  ＜↓＞  ＜ＯＫ＞ When PROFILE1 (2)  is selected When USER NAME is selected ＵＳＥＲ ＮＡＭＥ ＰＲＯＦ．１ ＵＳＥＲ ＳＯＬＤＥＲ ＴＹＰＥ 〔              〕 ＜ＣＡＮＣＥＬ＞ ＜↑＞  ＜↓＞  ＜ＯＫ＞  ＜↑＞  ＜↓＞  ＜ＯＫ＞ When SOLDER TYPE is selected You can make your name and ID from  A-Z ,  ＰＲＯＦ．１ ＳＯＬＤＥＲ 0-9 ,  . ,  -  and space. You can enter  〔              〕 up to 14 letters. This is blank in the initial setting.   ＜↑＞  ＜↓＞  ＜ＯＫ＞ ALERT TIME "CHG TIP" is displayed on the home screen when the iron tip cumulative running time reaches the set period. To clear this display, you need to change the tip and reset the TIP TIME from the DSP menu. (See  5. How to Use, ...

  • Page 9: Maintenance

    7. MAINTENANCE Performing proper and periodic maintenance extends product life. Efficient soldering depends upon the temperature, quality and quantity of the solder and flux. Apply the following service procedure as dictated by the conditions of usage. Since the soldering iron can reach a very high temperature, please work carefully. Except the case especially indicated, always turn the power switch OFF and disconnect the power plug before performing any maintenance procedure.

  • Page 10: Parts List

    10. PARTS LIST HAKKO FX-100 Starion ● Item No. Part No. Part Name Specifications Item No. Part No. Part Name Specifications Power cord, 3-wire B5002 P.W.B B2419 120V USA cord & American plug Power cord, 3-wire B5003 Transformer 100 - 110V B2421 cord but no plug Power cord, 3-wire...
  • Page 11 HEAD OFFICE 4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN TEL:+81-6-6561-3225 FAX:+81-6-6561-8466 http://www.hakko.com E-mail:sales@hakko.com OVERSEAS AFFILIATES U.S.A.: AMERICAN HAKKO PRODUCTS, INC. TEL: (661) 294-0090 FAX: (661) 294-0096 Toll Free (800)88-HAKKO 4 2 5 5 6 http://www.hakkousa.com HONG KONG: HAKKO DEVELOPMENT CO., LTD. TEL: 2811-5588 FAX: 2590-0217 http://www.hakko.com.hk E-mail:info@hakko.com.hk...
