Hakko Electronics FX-8803 Instruction Manual

Soldering gun
Instruction Manual
Thank you for purchasing the HAKKO FX-8803 Soldering Gun.
This soldering gun has a built-in feeding mechanism that enables soldering with one hand.
Please read this manual before operating the HAKKO FX-8803.
Keep this manual readily accessible for reference.
When you use the HAKKO FX-8803 for the first time, note that calibration is required
before starting operation. Read the instruction manual for the station used in conjunction
with the HAKKO FX-8803 soldering gun. When inserting the solder, push and hold the
trigger upward. Insert the solder until end of solder protrude from the guide nozzle.

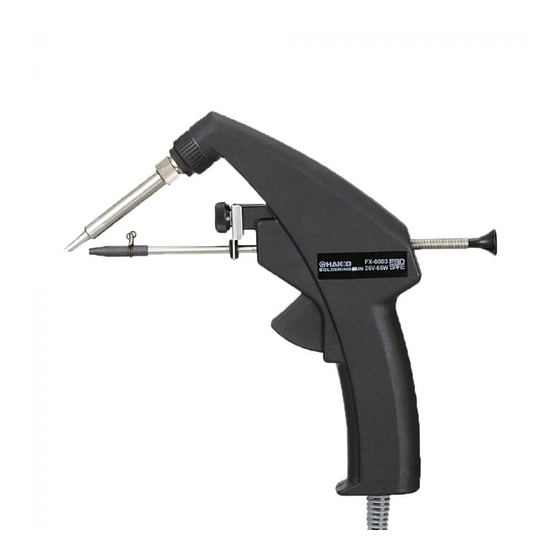

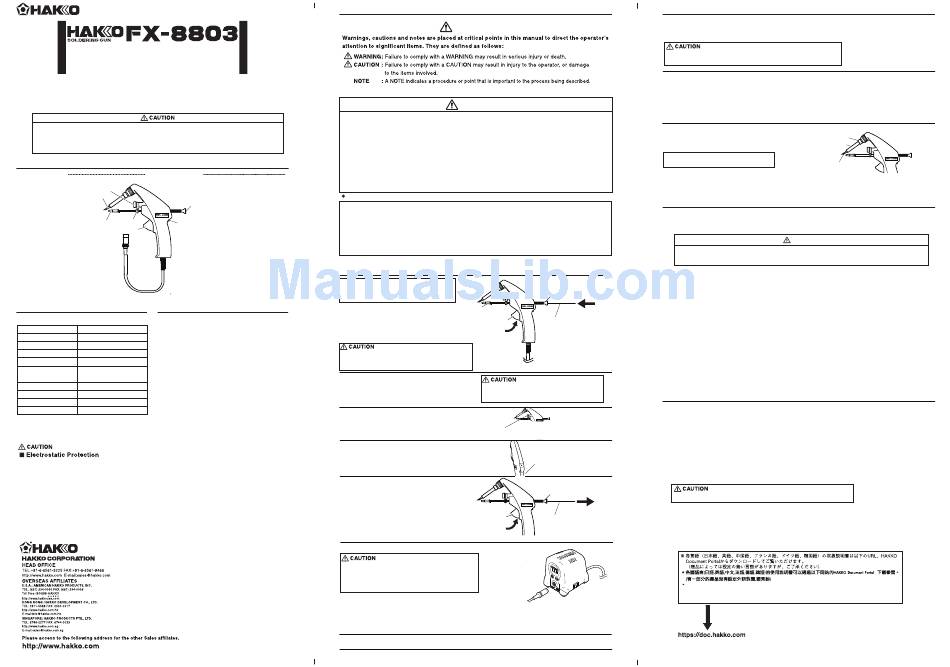

1. PACKING LIST AND PART NAMES
HAKKO FX-8803 Instruction manual 1
1
Adjusting screw
Tip
(With T18-CF3)
Solder inlet
Guide nozzle Solder feed
Support fitting
adjusting screw
Trigger
HAKKO FX-8803
2. SPECIFICATIONS 3. COMPATIBLE STATIONS
●HAKKO FX-8803
Use the HAKKO FX-8803 with the HAKKO
FX-888/888D soldering station.
Power consumption AC26V 65W
Temperature range 200∼480℃
Tip to ground resistance ＜2Ω
Tip to ground potential ＜2mV (TYP. 0.6mV)
Standard tip T18-CF3
Standard guide nozzle φ1.0
(Solder diameter)
Usable solder diameter φ0.6, 0.8, 1.0, 1.2, 1.6
Cord assembly 1.1m
Dimensions (w/o cord) 170(W)x180(H)x23(D) mm
Weight (w/o cord) 207g
NOTE ：
※Specifications and design are subject to change without notice.
※This product is protected against electrostatic discharge.
This product includes such features as electrically conductive plastic parts and grounding of the unit
as measures to protect the device to be soldered from the effects of static electricity. Be sure to observe
the following instructions:
1. The plastic parts are not insulators, they are conductors. When making repairs or replacing
parts, take sufficient care not to expose live electrical parts or damage insulation materials.
2. Be sure to ground the unit during use.
Copyright © 2012 HAKKO Corporation. All Rights Reserved.
4. WARNINGS, CAUTIONS, NOTES AND EXAMPLES
When power is ON, tip temperature will be between 200℃ and 480℃ (400 to 900℉).
To avoid injury or damage to personnel and items in the work area, observe the following :
Do not touch the tip or metal parts near the tip
●
Do not allow the tip to come close to, or touch, flammable materials.
●
Inform others in the area that the unit is hot and should not be touched.
●
Turn the power off when not in use, or left unattended.
●
Please make sure that all items listed
Turn the power off when changing parts or storing the HAKKO FX-8803.
●
below are included in the package.
This appliance is not intended for use by persons (including children) with reduced physical,
●
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
●
Observe the following precautions to prevent accidents or damage to the unit.
Do not use the HAKKO FX-8803 for applications other than soldering.
●
Do not strike the gun against hard objects to remove excess solder. This will damage the gun.
●
● Do not modify the HAKKO FX-8803.
● Use only genuine HAKKO replacement parts.
Do not allow the HAKKO FX-8803 to become wet, or use it when hands are wet.
●
Remove power and iron cords by holding the plug. not the wires.
●
Since smoke is produced when using the wire stripper, be sure the work area is well ventilated.
●
5. OPERATION
NOTE ：
Make sure the power switch of HAKKO
FX-888D station is OFF.
1. Inserting the solder
Push and hold the trigger upward in the
direction of the arrow and insert the solder
into the solder inlet and pass solder through.
Solder will protrude from the guide nozzle.
The solder may become stuck inside the unit
if the trigger is pulled before solder protrudes
from the guide nozzle.
2. Feeding the solder
Put the trigger back into place after inserting
the solder.
Solder can be fed by pulling the trigger.
3. Adjusting the guide nozzle.
Adjust the position where the solder touches the tip.
Loosen the adjusting screw and move the
guide nozzle up or down.
4. Solder feed adjustment
Adjusting the solder feed pitch by turning the
solder feed adjusting screw with a screwdriver.
Quantity of solder feed will decrease by tightening.
5. Changing to a different solder diameter
When changing to the different solder diameter,
push and hold the trigger upward in the
direction of the arrow and pull out the solder
from the solder inlet.
Then, insert the new solder as shown in
"1. Inserting solder".
A. Connection
Be sure to turn off the power before connecting
●
or disconnecting the cord assembly for
the iron to and from the receptacle to avoid
damaging the unit.
1. Connect the cord assembly of HAKKO FX-8803
to the receptacle of HAKKO FX-888D.
2. Place the soldering gun into the iron holder(option).
2012.9
3. Plug the power cord into the power supply.
MA02038XZ120912
WARNING
CAUTION
Solder inlet
Guide nozzle
Insert the solder.
Trigger
Push
Keep the solder loose (without tension)
on the solder inlet side at all times
while soldering.
Adjusting screw
Solder feed adjusting screw
Solder inlet
Pull out
Trigger
Solder
Push
Push on the plug
until it stops,
making sure
it is securely
connected.
receptacle
To disconnect, hold the plug.
5. OPERATION
B. Turn on the power switch
Turn on the power for HAKKO FX-888D soldering station.
The heater lamp flashes as the tip comes up to the set temperature.
The unit is now ready to perform soldering work.
Place the HAKKO FX-8803 in the iron holder when not in use.
●
Turn the power off when not using the station for a long time.
●
C. Calibration
Before using the HAKKO FX-8803, be sure to calibrate the station.
(Refer to the HAKKO FX-888D instruction manual.)
Use the HAKKO FG-100 Thermometer or HAKKO FG-101
Soldering Tester to measure the tip temperature.
D. Replacing the tip
Nut
1. Turn the nut counterclockwise, then remove
Tip enclosure
the tip enclosure and tip.
NOTE :
Do not loosen the nipple.
Tip
2. Insert the new tip and tip enclosure
into the HAKKO FX-8803.
Tighten the nut firmly, and fix the tip.
6. MAINTENANCE
Performing proper and periodic maintenance extends product life and contributes to the
quality of soldering work. Efficient soldering depends upon the temperature, the quality and quantity of
the solder and flux. Apply the following service procedure as dictated by the conditions of the usage.
WARNING
Since the tip can reach a very high temperature, please work carefully.
Except where indicated, always turn the power switch OFF and disconnect the power plug
before performing any maintenance procedure.
Tip temperature
High temperatures shorten tip life and may cause thermal shock to components.
Always use the lowest possible temperature. The excellent thermal recovery characteristics
of the HAKKO FX-888D ensures effective soldering at low temperature.
Cleaning
Always clean the tip before use to remove any residual solder or flux adhering to it.
Use a cleaning sponge or the HAKKO 599B tip cleaner.
Contaminants on the tip may have negative effects, including reduced heat conductivity,
which contribute to poor performance.
When not in use
Never allow the unit to idle at a high temperature for extended periods. This will allow the
tip to become oxidized. Turn the power switch OFF. If it is to be out of service for
several hours, it is advisable to disconnect the power plug as well.
After use
Always clean the tip and coat it with fresh solder after use. This guards against oxidation.
Tip Maintenance
●
1. Set the temperature to 250℃.
2. When the temperature stabilizes, clean the tip and
check the condition of the tip. If the tip is badly worn or deformed, replace it.
3. If the solder plated part of the tip is covered with black oxide, apply fresh solder,
containing flux, and clean the tip again. Repeat until all the oxide is removed,
then coat the tip with fresh solder.
4. Turn the power OFF and remove the tip, using the heat resistant pad. Set the tip aside to
cool.
Do not file the tip in an attempt to remove the black oxide.
Instruction manual in the language of Japanese, English, Chinse, French, German and Korean
can be downloaded from the HAKKO Document Portal.
(Please note that some languages may not be available depending on the product.)
