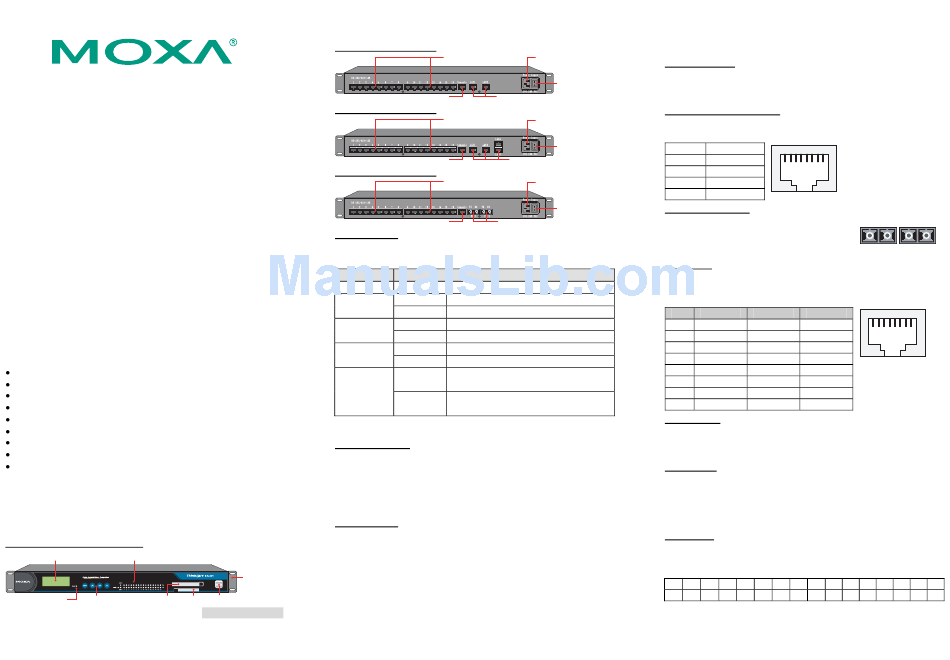

DA-661/662/663-LX
Quick Installation Guide
Second Edition, April 2008
1. Overview
The DA-661/662/663-LX are RISC-based, ready-to-run embedded
computers designed for industrial data acquisition applications. Each of
the three models has 16 RS-232/422/485 serial ports. In addition, the
DA-661 has two Ethernet ports, the DA-662 has 4 Ethernet ports, and
the DA-663 has 2 fiber Ethernet channels, all based on the Intel XScale
IXP-425 communication processor. The casing is a standard 1U,
19-inch wide rack-mounted rugged enclosure. The robust,
rack-mountable mechanism design provides the hardened protection
needed for industrial environment applications, and makes it easy for
users to install the DA-661/662/663 on a standard 19-inch rack. The
DA-661/662/663 are ideal for applications that require a distributed
embedded technology, such as SCADA systems, plant floor automation,
and power electricity monitoring applications.
2. Package Checklist
Before installing the DA-661/662/663-LX, verify that the package
contains the following items:
1 DA-661-LX, DA-662-LX, or DA-663-LX
19-inch Rackmount Kit
DA-661/662/663-LX Quick Installation Guide (this guide)
DA-661/662/663-LX Document & Software CD
Cross-over Ethernet cable
CBL-RJ45M9-150: 150 cm, 8-pin RJ45 to DB9 (M) serial port cable
CBL-RJ45F9-150: 150 cm, 8-pin RJ45 to DB9 (F) console port cable
Power Cord
Product Warranty Statement
Notify your sales representative if any of the above items are missing
or damaged.
3. DA-661/662/663-LX Panel Layout
The DA-661/662/663-LX have 16 RS-232/422/485 serial ports.

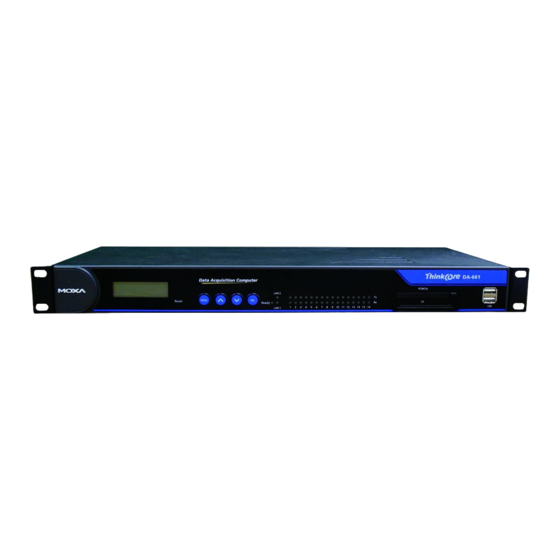

Front View of DA-661/662/663-LX
LCD Screen LED Indicators (Ready, LAN, Tx, Rx)
PCMCIA
Reset Button Push Buttons PCMCIA Socket CF Socket
— 1 —
Rear View of DA-661-LX
Rear View of DA-662-LX
Rear View of DA-663-LX
LED Indicators
The following LED indicators are located on the front panel of the
DA-661/662/663-LX.
LED Name
Ready
LAN1, LAN2,
LAN3, LAN4 Green
P1-P16 (Tx)
P1-P16 (Rx)
FX1, FX2
4. Installing Your DA-661/662/663
Desktop Mounting
Place the DA-661/662/663 on a clean, flat, well-ventilated desktop. For
better ventilation, attach the 4 pads from the desktop kit to the bottom
of the unit, and leave some space between the DA-661/662/663 and
other equipment. Do not place equipment or objects on top of the unit,
as this can cause damage to the product.
Rack Mounting
The DA-661/662/663 can be mounted on a standard 19-inch rack. Use
the enclosed pair of L-shaped metal plates and screws to fasten the
DA-661/662/663 to the rack cabinet. You can lock either the front panel
or the rear panel of the DA-661/662/663 to the front side of the rack.
19-inch
Each L-shaped plate has 6 holes, leaving two outer or inner holes open
Rackmount Ear
CF
USB
for your convenience.
USB Host
P/N: 1802006610011
RS-232/422/485 Serial Ports Power Input (100-240 VAC/VDC)
(RJ45, 50 to 921.6 Kbps)
ON/OFF Switch
RS-232 Console Port 10/100 Mbps Ethernet x 2 (RJ45)
RS-232/422/485 Serial Ports
Power Input (100-240 VAC/VDC)
(RJ45, 50 to 921.6 Kbps)
ON/OFF Switch
RS-232 Console Port 10/100 Mbps Ethernet x 4 (RJ45)
RS-232/422/485 Serial Ports
Power Input (100-240 VAC/VDC)
(RJ45, 50 to 921.6 Kbps)
ON/OFF Switch
RS-232 Console Port 100BaseFX x 2 (SC Connector)
LED Color LED Function
Green Power is on and functioning normally
Orange 10 Mbps Ethernet connection
100 Mbps Ethernet connection
Green Serial port is transmitting data
Off Serial port is not transmitting data
Orange Serial port is receiving data
Off Serial port is not receiving data
Green
Fiber channel is connected
(steady on)
Green
Fiber channel is transmitting data
(flickering)
— 2 —
5. Connecting Your
Power Connector
Connect the 100-240 VAC power line to the DA-661/662/663's power
connector. The Ready LED on the front panel will glow a steady green
when the OS is ready.
Ethernet Ports (DA-661/662)
The 10/100 Mbps Ethernet ports (2 LAN ports for DA-661, 4 LAN
ports for DA-662) use RJ45 connectors.
Pin Signal
1 ETx+
1 8
2 ETx-
3 ERx+
6 ERx-
Fiber Ports (DA-663)
The DA-663 has 2 100BaseFX multi mode fiber
channel ports. Use multi mode optical fiber cable
(SC connector) to connect to these ports.
Serial Ports
There are 16 serial ports on the DA-661/662/663. The serial ports use
RJ45 connectors. The ports can be configured independently for
RS-232, RS-422, or RS-485 by software.
Pin RS-232 RS-422 RS-485
1 DSR --- ---
2 RTS TXD+ ---
3 GND GND GND
4 TXD TXD- ---
5 RXD RXD+ Data+
6 DCD RXD- Data-
7 CTS --- ---
8 DTR --- ---
Console Ports
The console port is an RJ45 RS-232 port. It can be connected to a V90
or GPRS modem via PPP. The pin definitions are the same as for the
serial ports.
Reset Button
Press the "Reset" button on the front panel continuously for at least 5
seconds to load the factory default configuration. After the factory
default configuration has been loaded, the system will reboot
automatically. The Ready LED will blink for the first 5 seconds, and
then maintain a steady glow once the system has rebooted.
LCD Screen
The DA-661/662/663 have an LCD screen on the front panel. The LCD
screen displays 16 columns and 2 rows of text. On boot-up, the LCD
screen displays the model name and firmware version, as shown here:
D A - 6 6 1 - 1 6
V E R . 1 . 0
— 3 —
TX RX TX RX
FX 1 FX 2
1 8
