- Page 1 ThinkCore DA-661/662/663 Hardware User’s Manual Second Edition, September 2006 www.moxa.com/product MOXA Systems Co., Ltd. Tel: +886-2-8919-1711 Fax: +886-2-8919-1722 Web: www.moxa.com MOXA Technical Support Worldwide: support@moxa.com The Americas support@usa.moxa.com...
-
Page 2: Copyright Notice
ThinkCore DA-661/662/663 Hardware User’s Manual Any software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2006 MOXA Systems Co., Ltd. All rights reserved. -
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ....................1-1 Overview ........................1-2 Package Checklist....................... 1-2 Product Features ......................1-3 Hardware Specifications..................... 1-3 Hardware Introduction ......................1-4 Appearance and Dimensions ..................1-4 Hardware Block Diagram................... 1-5 LED Indicators ......................1-7 Reset Button ....................... 1-7 LCD Screen ........................ -
Page 4: Chapter 1 Introduction
Introduction Chapter 1 The ThinkCore DA-661/662/663 are RISC-based, ready-to-run embedded computers designed for industrial data acquisition applications. Each model has 16 RS-232/422/485 serial ports, 1 CF socket, 1 PCMCIA socket, and 2 USB hosts based on the Intel XScale IXP-425 communication processor. -
Page 5: Overview
Typical applications include SCADA systems, plant floor automation, and power electricity monitoring. Package Checklist Before installing the ThinkCore DA-661/662/663, verify that the package contains the following items: • 1 ThinkCore DA-661/662/663 Embedded Computer •... -
Page 6: Product Features
• PCMCIA for wireless LAN expansion (supports 802.11b/g) • CompactFlash for storage expansion • USB 2.0 host Hardware Specifications ThinkCore DA-661 ThinkCore DA-662 ThinkCore DA-663 Intel XScale, IXP-425 (533 MHz) 128 MB Flash 32 MB Auto-sensing 10/100 Mbps × 2 with built-in... -
Page 7: Hardware Introduction

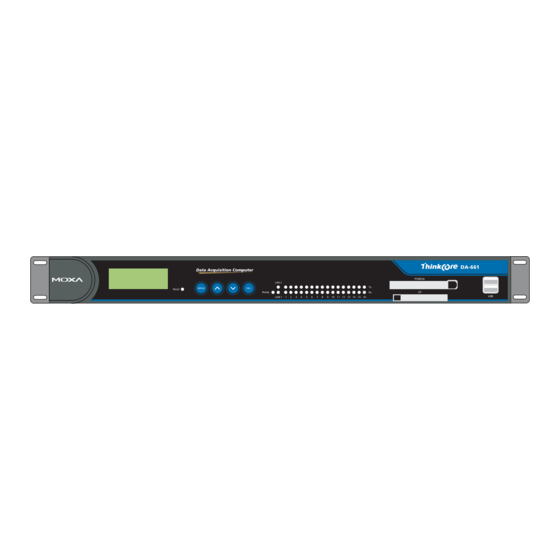

DA-661/662/663 Hardware User’s Manual Introduction Hardware Introduction Appearance and Dimensions Appearance Front View of DA-661 LCD Screen LED Indicators (Ready, LAN, Tx, Rx) 19-inch PCMCIA Rackmount Ear Reset Button Push Buttons PCMCIA Socket CF Socket USB Host Front View of DA-662 LCD Screen LED Indicators (Ready, LAN, Tx, Rx) 19-inch... -
Page 8: Hardware Block Diagram
DA-661/662/663 Hardware User’s Manual Introduction Dimensions DA-661/662/663 PCMCIA Power Input RS-232/422/485 Console LAN1 LAN2 100-240 VAC 440 mm (17.3 in) 480 mm (19 in) Hardware Block Diagram The following block diagrams show the layout of the DA-661/662/663’s internal components. DA-661 Hardware Block Diagram Ethernet PCMCIA &... - Page 9 DA-661/662/663 Hardware User’s Manual Introduction DA-662 Hardware Block Diagram Ethernet PCMCIA & CF Console Power Host PCI to Cardbus Controller Bridge Power Xscale IXP-425 533 MHz circuit 32 MB Flash PCI Bus 128 MB SDRAM LCM Display & Keypad Moxa UART ASIC Moxa UART ASIC 10 11 13 14...
-
Page 10: Led Indicators
DA-661/662/663 Hardware User’s Manual Introduction LED Indicators LED indicators are located on the front panel of the DA-661/662/663. LED Name Color Description Ready Power is ON, and system is ready (after booting up) LAN1, LAN2 Orange 10 Mbps Ethernet connection LAN3, LAN4 Green 100 Mbps Ethernet connection... -
Page 11: Push Buttons
DA-661/662/663 Hardware User’s Manual Introduction Push Buttons There are four push buttons on the DA-661/662/663’s front panel. The buttons are used to enter text onto the LCD screen. The buttons are MENU, ︽ (up cursor), ︾ (down cursor), and SEL: Button Action MENU... -
Page 12: Connecting The Hardware
DA-661/662/663 Hardware User’s Manual Introduction Connecting the Hardware This section describes how to connect the DA-661/662/663 to serial devices. The topics covered in this section are: Wiring Requirements, Connecting the Power, Connecting to the Network, Connecting to a Serial Device, and Connecting to the Console Port. Wiring Requirements ATTENTION Safety First! -
Page 13: Connecting To The Network
DA-661/662/663 Hardware User’s Manual Introduction Connecting to the Network For DA-661 and DA-662, connect one end of the Ethernet cable to one of the DA-661/662’s 10/100M Ethernet ports (8-pin RJ45) and the other end of the cable to the Ethernet network. If the cable is properly connected, the DA-661/662 will indicate a valid connection to the Ethernet in the following ways: The lower right corner LED indicator glows a solid... -
Page 14: Pcmcia
DA-661/662/663 Hardware User’s Manual Introduction PCMCIA The PCMCIA slot supports the CardBus (Card-32) card standard and 16-bit (PCMCIA 2.1/JEIDA4.2) card standard. It supports +3.3V, +5V, and +12V at a working voltage of 120 mA. The wireless LAN card is optional. The wireless LAN card provided by MOXA lets you connect the DA-661/662/663 to a wireless LAN. -
Page 15: Appendix A Service Information
Service Information Appendix A This appendix shows you how to contact MOXA for information about this and other products, and how to report problems. The following topics are covered in this appendix: MOXA Internet Services Problem Report Form Product Return Procedure... -
Page 16: Moxa Internet Services
DA-661/662/663 Hardware User’s Manual Service Information MOXA Internet Services Customer satisfaction is our primary concern. To ensure that customers receive the full benefit of our products, MOXA Internet Services has been set up to provide technical support, driver updates, product information, and user’s manual updates. The following services are provided E-mail for technical support........support@moxa.com... -
Page 17: Problem Report Form
DA-661/662/663 Hardware User’s Manual Service Information Problem Report Form MOXA ThinkCore DA-661/662/663 Series Customer name: Company: Tel: Fax: Email: Date: 1. MOXA Product: ThinkCore DA-661 ThinkCore DA-662 ThinkCore DA-663 2. Serial Number: _________________ Problem Description: Please describe the problem clearly. Include as many details as you can. This will help us... -
Page 18: Product Return Procedure
DA-661/662/663 Hardware User’s Manual Service Information Product Return Procedure For product repair, exchange, or refund, the customer must: Provide evidence of original purchase. Obtain a Product Return Agreement (PRA) from the sales representative or dealer. Fill out the Problem Report Form (PRF). Include as much details as possible for a shorter product repair time.
