Summary of Contents for Lang R30S

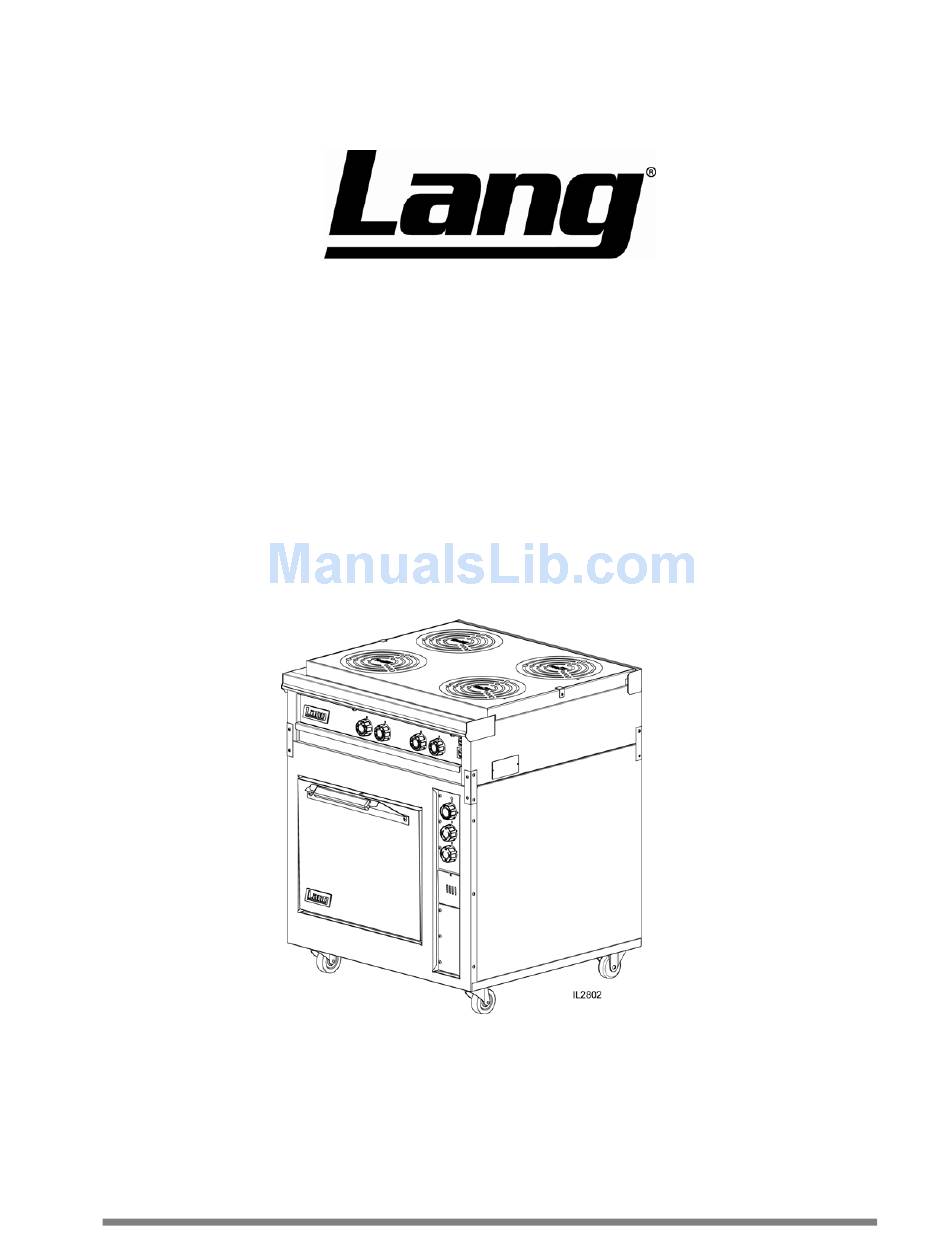

- Page 1 Installation, Operation, and Maintenance Instructions Electric Range Models R30S RI30S, RI30C (Induction Range Top) Lang Manufacturing 10 Sunnen Drive St. Louis, MO.63143-3800 Part Number: 2M-W1098 Ph: 314-678-6315 Fax: 314-781-2714 Rev.A www.langworld.com March 7, 2014...
- Page 2 Safety THE GRIDDLE IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION.
- Page 3 WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 314-678-6315 or visit our website for the service agent nearest you.
- Page 4 WEIGHT MODEL NO. 208V 240V 480V kW 208V 240V L1‐ L2‐ L3‐ L1 L2 L3 L1 L2 L3 L1 L2 L3 L2 L3 L1 R30S, RI30S 5.0 5.0 4.0 14.0 37.5 41.7 37.5 32.5 36.1 32.5 16.3 18.1 16.3 67.3 58.3 370 LBS...
-
Page 5: Initial Start-Up
All hot plates and speed units should be turned to the low or off position when not in use. Allowing these elements to stay in the full on or high position with nothing on top to absorb and dissipate the heat is detrimental to element life. Lang warranty provisions do not cover abuse of this nature. - Page 6 Induction Burners Induction requires cookware that is induction efficient or that is made for use on an induction surface. Generally speaking if a magnet attracts and strongly adheres to the pan bottom it will generally work on an induction surface. This is a requirement for proper use. DO NOT USE WITH EMPTY PANS.
-
Page 7: Initial Use
OPERATING INSTRUCTIONS COMMERCIAL ELECTRIC RANGE General The range is designed to give, well-regulated, uniform heat throughout the oven and over the surface units. The oven and surface units should be thoroughly preheated before being used. It is advantageous from an operating cost standpoint to operate with the switches and/or thermostats set at the lowest position that will satisfactorily perform the cooking being done. -
Page 8: Range Top
The following temperature, time, switch setting and rack positions are suggested as a guide in baking various classes of products: General Class of Average Range Time (Min.) With Metal Switch Settings Rack Position Product Temperature Bottom Pies 35-60 Medium Rack on Deck °F °F -425... - Page 11 SK2613 Rev. - 7/23/12 MODEL: RTI30 Induction Rangetop...
-
Page 12: Parts List
PARTS LIST July 24, 2012 Model: RTI30 30” Induction Range Top Fig No Part No Description P9-CR30-621 TOP GLASS ASSY-30” INDUCTION PS-71300-21 GLASS-INDUCT 30” REPLACMENT P9-CR30-623 TOP GLASS ASSY WELD-30” P9-RF21-783 CLIP - GLASS INDUCTION 2C-20102-08 SCRW PHD ST 8-32X.375 P9-CR30-622 INSUL-MANNIGLAS 30”INDUCT P9-RF21-727... - Page 13 Old Style See Control Panel Detail 5 18 Suggested Parts Stocking Model: R30S-Marine Range Top Assy SK2355 Rev. - 3/6/07...
- Page 14 PARTS LIST October 4, 2012 Rev - Model No: R30S-ATA, R30S-ATB, R30S-ATC, R30S-ATD, R30S-ATE, R30S-ATF, Marine 30” Electric Range Top Assy Fig No Part No. Description Application P9-50302-302 SEARAIL ASSY 2’ RT30 ATA, ATB, ATC P9-50302-304 SEARAIL ASSY 1’ RT30 ATD, ATE P9-50401-15-3 RANGE PLTE ASY 18 SHORT...
- Page 15 11 13 14 22 Suggested Parts Stocking Model: R30S-Marine Range Oven Assy SK2356 Rev. - 3/6/07...
- Page 16 PARTS LIST October 4, 2012 Rev - Model No: R30S-ATA, R30S-ATB, R30S-ATC, R30S-ATD, R30S-ATE, R30S-ATF, Marine 30” Electric Range Oven Assy Fig No Part No Description Application N9-32-143 BODY SIDE LOWER L/H - 2 Y9-50300-14 MARINE HANDLE CHANNEL 2C-20101-10 SCREW THD MS 1/4-20X2 1/4 PL...
- Page 17 Part No. Qty Description 50302-304-1 SEARAIL ASSY 1’ RT30 SK 50302-307 SEARAIL LH SIDE RT30 50302-308 SEARAIL RH SIDE RT30 50302-317 SEARAIL SIDE TO SIDE 12” 20109-04 SCREW THD MS SS 10-32X 3/8 Part No. Qty Description 50302-302-1 SEARAIL ASSY 2’ RT30/32 SK 50302-307 SEARAIL LH SIDE RT30 50302-308...
- Page 18 R30S-ATB R30S-ATA R30S-ATD R30S-ATC Suggested Parts Stocking 11 13 14 Model: R30S Marine Range Top Controls SK2357 Rev. - 3/7/08...
- Page 19 R30S-ATF R30S-ATE Suggested Parts Stocking 11 13 14 Model: R30S Marine Range Top Controls SK2358 Rev. - 3/7/08...
- Page 20 PARTS LIST October 4, 2012 Rev - Model No: R30S-ATA, -ATB, -ATC, -ATD, -ATE, -ATF, Marine 30” Range Control Top Panel Assy Fig No Part No Description Application P9-CR30-750 CONDUIT ASSY - SPEED UNIT ATB, ATE P9-CR30-750 CONDUIT ASSY - SPEED UNIT P9-CR30-752 CONDUIT ASSY - HOT TOP...
