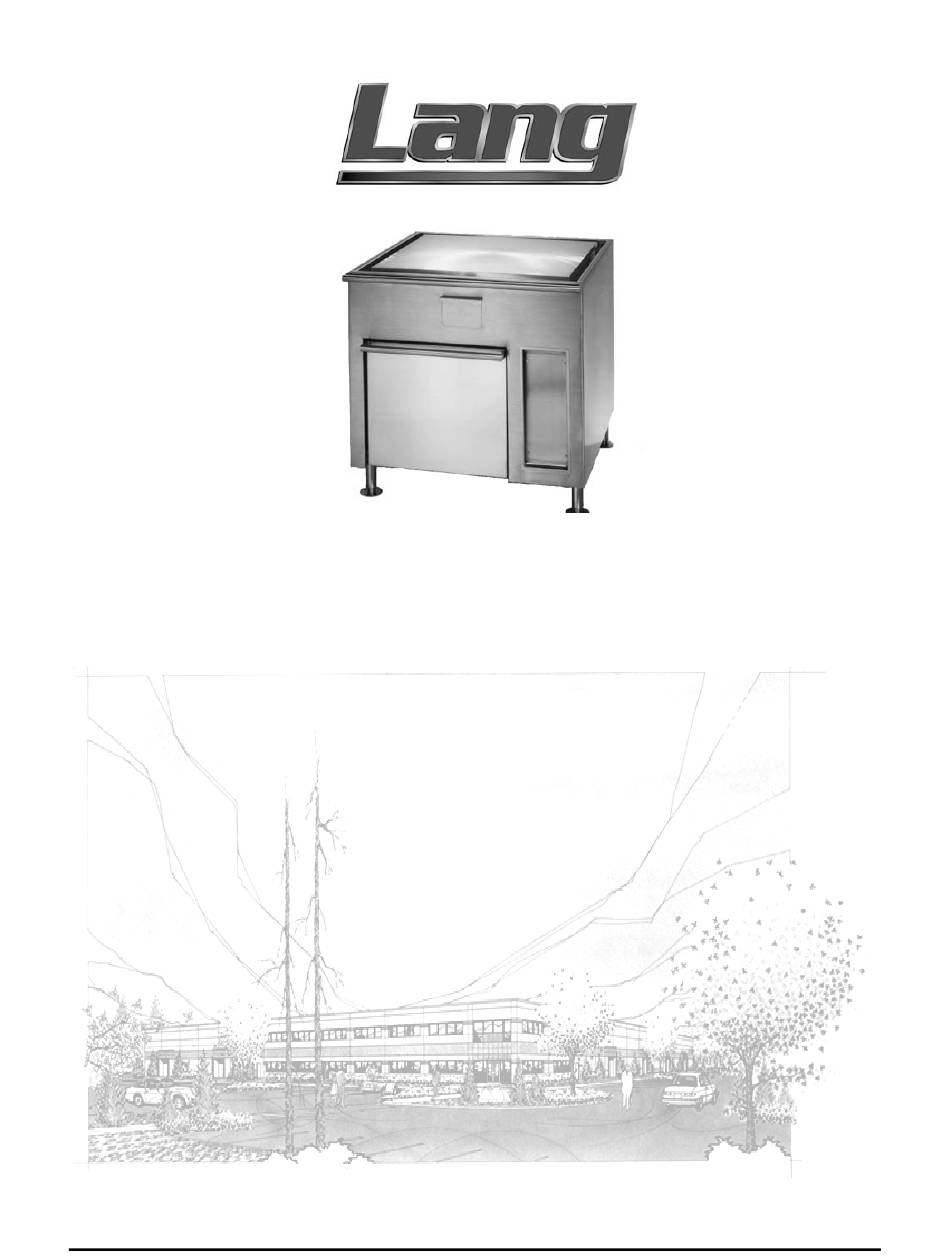

- Page 1 Installation, Operation, Maintenance, & Troubleshooting Model: CLR36R-GB-S Electric Cruise Line Grooved Griddle Range with an Overhead Switchbox Serial: Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203 Phone: 425-349-2400 Fax: 425-349-2733 WWW.LANGWORLD.COM © Copyright 2000...
- Page 2 THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. FOR YOUR SAFETY DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE TABLE OF CONTENTS................3 READ FIRST....................4 UNPACKING ....................6 INSTALLATION....................7 INITIAL START-UP ..................8 OPERATION ....................9 CLEANING ....................10 TROUBLESHOOTING..................11 PARTS LISTS....................13 10. EXPLODED VIEWS ..................15 11. WIRING DIAGRAMS..................21 12. WARRANTY....................22... -
Page 4: Read First
IMPORTANT READ FIRST IMPORTANT CAUTION: THE RANGE WEIGHS 600 LBS. (272.16 KILOGRAMS). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION. - Page 5 WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM for...
-
Page 6: Unpacking
15 days of delivery. All packing material should be kept for inspection. Do not return damaged merchandise to Lang Manufacturing Company. File your claim with the carrier. -
Page 7: Installation
4.2 Overhead Switch Box The overhead switch box can be mounted anywhere above the range. The electrical service connection can by made anywhere on the body of the switch box. 4.3 Range Voltage The Lang Model CLR36R-GB-S can be operated on 440 Volts. -
Page 8: Initial Start-Up
INITIAL START UP 5.1 PRE-POWER ON Initial Start-up Before the initial use of the range, the oven must be thoroughly allowed to dry itself out. This is done be setting the thermostat to 350°. Allow the range oven to heat until all vapor and condensation has been eliminated. For best results allow the oven to thoroughly dry out. -
Page 9: Operation
OPERATION CAUTION: ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM COMBUSTIBLE MATERIALS. CAUTION: KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS. 6.1 Range Controls with a Overhead Switch Box Turn the griddle thermostat dial to the desired temperature setting. -
Page 10: Cleaning
CLEANING WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC. CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. -
Page 11: Troubleshooting
TROUBLESHOOTING 9.1 Symptoms What follows is a chart of Symptoms and Possible Causes to aid in diagnosing faults with the oven. Refer to the Symptoms column to locate the type of failure then to the Possible Cause for the items to be checked. To test for a possible cause, refer to the TEST section and locate the Possible Cause then refer to test to identify test procedures. - Page 12 TROUBLESHOOTING CONT’D 9.2 TESTS NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM for the service station nearest you.
-
Page 13: Parts Lists
PARTS LIST CLR36R-G-S Part Item # Description Number Body CLR-003 Vent Back CLR-529 Grease Bucket Assembly CLR-500 Can Assembly CLR-001 Heat Shield CLR-440 Door Assembly CLR-002 Stainless Steel Jam Nut, 5/8-18 20303-14 CLR Top Element, 440V, 1500W 11045-06 Probe Shield CLR-424 CLR Bottom Element, 440V 11045-07... - Page 14 PARTS LIST CONT’D CLR36R-G-S Component Mount OSB-209 10 Pole Terminal Strip, 30A, 600V 30500-04 2 Pole Contactor, 30A, 24VAC 30701-04 Transformer, 480/24 VAC 31400-15 Black Knob 70701-28 Pilot Light 31601-07 Contact Block 30304-31 2 Position Rotary Switch 30304-30 Selectronic Probe 41100-17 3 Heat Rotary Switch, 240/480VAC, 15A 30304-06...
-
Page 21: Wiring Diagrams
WIRING DIAGRAM... -
Page 22: Warranty
II. Damage during shipment is to be reported to the carrier, is not covered under this warranty, and is the VII. Lang Equipment is for cruise line use only. If sole responsibility of purchaser/user. sold as a component of another (OEM) manufacturer’s equipment, or if used as a consumer...
