Page 1: Maintenance Instructions

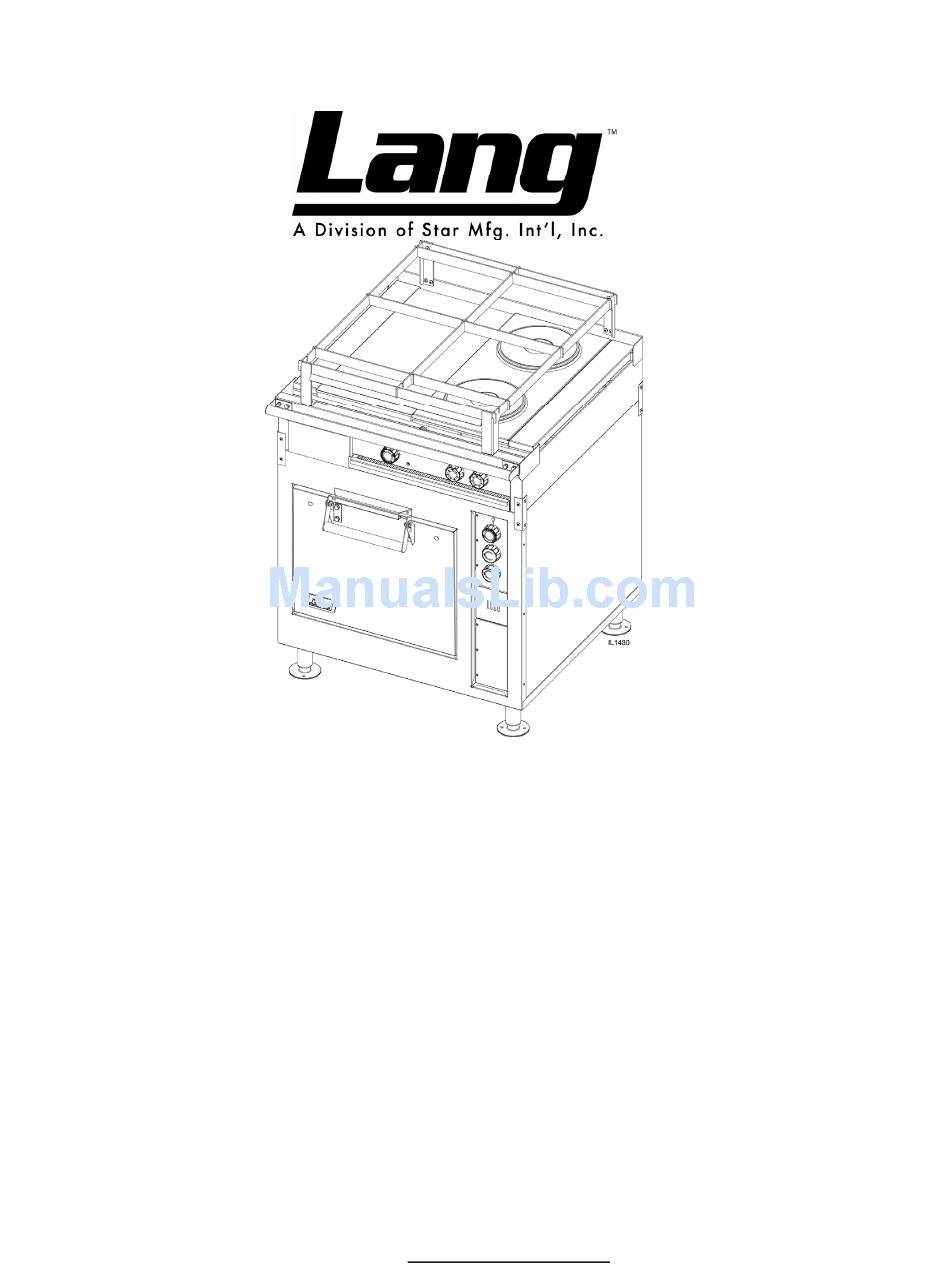

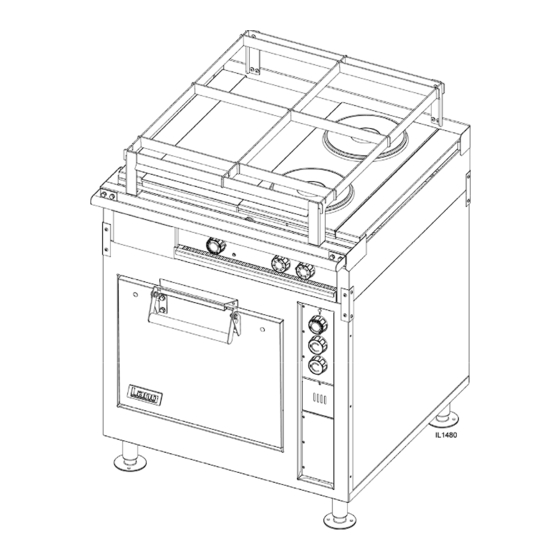

Installation, Operation, & Maintenance Instructions Electric Range Model: R30S-M Star Manufacturing International 10 Sunnen Drive St. Louis, MO.63143-3800 Part Number: 2M-W1090 Ph: 314-781-2777 Fax: 314-781-2714 WWW.STAR-MFG.COM Rev B March 7, 2008... -
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Information
General Information General The range is designed to provide, well-regulated, uniform heat throughout the oven and over the surface units. The oven and surface units should be thoroughly preheated before being used. It is advantageous from an operating cost standpoint to operate with the switches and/or thermostats set at the lowest position that will satisfactorily perform the cooking being done. -
Page 4: Initial Preheat
Operating Instructions Initial Preheat Before initial use, the oven must be allowed to dry itself out. This is completed by setting the top and bottom oven switches to the “low” position, and setting the thermostat to 350 F. Allow the range oven to saturate until all vapors and condensation have been eliminated. For best operating results allow the range oven to thoroughly dry out. - Page 5 Range Top 12 x 24 Hot Plate or Round Speed Units controlled by three-heat switch, 6 - heat switch or high temperature thermostats. Round Speed Units, controlled by three - heat switch or six - heat switch. Recommended: Light duty saucepans and small stock - pots. Not Recommended: Heavy stock - pots, or heavy urns, or kettles.
-
Page 6: Maintenance
Maintenance Daily Cleaning WARNING Burns could occur when dealing with hot grease! Empty grease drawers daily or when the area under the grease shoot is full. Do not wait until the entire grease drawer is full. Clean the exterior of the range with hot water and a mild detergent to maintain a gleaming appearance. - Page 12 Old Style See Control Panel Detail 5 18 Suggested Parts Stocking Model: R30S-Marine Range Top Assy SK2355 Rev. - 3/6/07...
-
Page 13: Parts List
PARTS LIST March 5, 2008 Rev - Model No: R30S-ATA, R30S-ATB, R30S-ATC, R30S-ATD, R30S-ATE, R30S-ATF Marine 30” Electric Range Top Assy Part Number Description Number P9-50302-302 SEARAIL ASSY 2’ RT30 ATA, ATB, ATC P9-50302-304 SEARAIL ASSY 1’ RT30 ATD, ATE P9-50401-15-3 RANGE PLTE ASY 18 SHORT ATD, ATE... - Page 14 11 13 14 22 Suggested Parts Stocking Model: R30S-Marine Range Oven Assy SK2356 Rev. - 3/6/07...
- Page 15 PARTS LIST March 6, 2008 Rev - Model No: R30S-ATA, R30S-ATB, R30S-ATC, R30S-ATD, R30S-ATE, R30S-ATF Marine 30” Electric Range Oven Assy Part Number Description Number N9-32-143 BODY SIDE LOWER L/H - 2 Y9-50300-14 MARINE HANDLE CHANNEL 2C-20101-10 SCREW THD MS 1/4-20X2 1/4 PL MARINE HANDEL MOUNTING 2C-20204-02 WASHER SS 1/4 SPLIT LOCK...
- Page 16 Part No. Qty Description 50302-304-1 SEARAIL ASSY 1’ RT30 SK 50302-307 SEARAIL LH SIDE RT30 50302-308 SEARAIL RH SIDE RT30 50302-317 SEARAIL SIDE TO SIDE 12” 20109-04 SCREW THD MS SS 10-32X 3/8 Part No. Qty Description 50302-302-1 SEARAIL ASSY 2’ RT30/32 SK 50302-307 SEARAIL LH SIDE RT30 50302-308...
- Page 17 R30S-ATB R30S-ATA R30S-ATD R30S-ATC Suggested Parts Stocking 11 13 14 Model: R30S Marine Range Top Controls SK2357 Rev. - 3/7/08...
- Page 18 R30S-ATF R30S-ATE Suggested Parts Stocking 11 13 14 Model: R30S Marine Range Top Controls SK2358 Rev. - 3/7/08...
- Page 19 PARTS LIST March 5,2008, Rev - Model No: R30S-ATA, -ATB, -ATC, -ATD, -ATE, -ATF Marine 30” Range Control Top Panel Assy Part Number Description Number P9-CR30-750 CONDUIT ASSY - SPEED UNIT ATB, ATE P9-CR30-750 CONDUIT ASSY - SPEED UNIT P9-CR30-752 CONDUIT ASSY - HOT TOP ATB, ATE P9-CR30-752...
- Page 20 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
