- Page 1 ELECTRIC RANGE RT36A thru RT36G RTI36 Installation and RT36 Operation Instructions 2M-W1091 Rev. F 10/4/12 IL1362 FCOF-AT...
- Page 2 CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE. REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Lang reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 314-678-6315. TABLE OF CONTENTS Equipment Description ......4 Unpacking . -
Page 4: Equipment Description

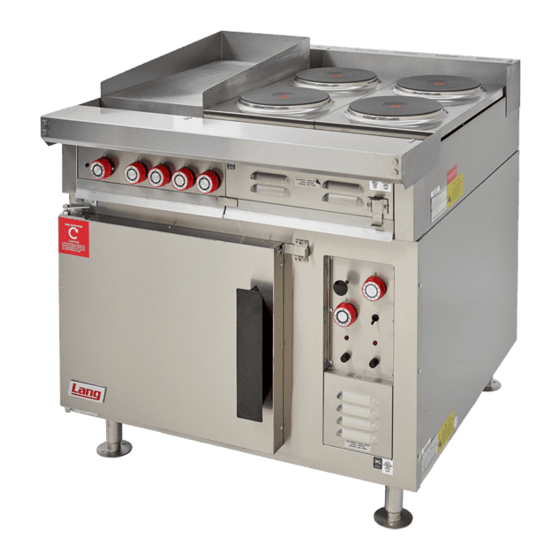

EQUIPMENT DESCRIPTION Exterior The range top dimensions are 8” (0.3 cm) high, 38” (96.5cm) deep, and 36” (91.5cm) wide. The sides, bottom, and rear wall are constructed of stainless steel. The range surface can come in 5 different configurations (shown below). Controls The RT36 Series Range is available with various controls depending upon model number. -
Page 5: Unpacking
15 days of delivery. Keep all packing material for inspection. Do not return damaged merchandise to Lang Manufacturing, file your claim with the carrier. -
Page 6: Electrical Connection
INSTALLATION Electrical Connection Make all electrical connections in accordance with local codes or in the absence of local codes with NFPA No. 70 latest edition (in Canada use: CSA STD. C.1). Place spacers, (i.e. x4 wood block not supplied) at the front and rear of the oven top. -
Page 7: Initial Start-Up Hot Plates
INSTALLATION continued Electrical Connection The following table and illustrations provide the voltage and kilowatts necessary to operate the range and oven Electrical Specifications Three Phase Single Phase 208 Volt 240 Volt 480 Volt 208 V 240 V Total Range style k.W. Range Top Only 41.7 41.7... -
Page 8: Induction Hot Plates
INITIAL START-UP continued Induction Hot Plates Induction requires cookware that is induction efficient or that is made for use on an induction surface. Generally speaking if a magnet attracts and strongly adherse to the pan bottom it will generally work on an induction surface. -
Page 9: Cleaning
MAINTENANCE AND CLEANING Cleaning The range should be thoroughly cleaned at least once a week in addition to the normal daily cleaning to insure against the accumulation of foreign material. Any oven cleaner used should be marked “Safe On Aluminum”. Electric equipment is inherently clean and sanitary, but may become unsanitary if dirt is allowed to CAUTION accumulate on it. -
Page 10: Calibration
If an item on the list is followed by an asterisk (*), the work should be done by a factory authorized service representative Failed element Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service NOTICE Agent Directory. -
Page 11: Induction Troubleshooting
Use larger induction efficient pan. In the event of a possible malfunction your Lang Wave module will display an error code on the display. See below when encountering an error code on your display. To reset error conditions remove the pan from the unit and turn off power to the unit. - Page 12 GRIDDLE HOT TOP FRENCH PLATE 1. Griddle and Top Plate Element 2. Pilot Light 3. 450°F Griddle Theremostat 4. Circuit Breaker 5. French Plate 6. 6-Heat Switch 7. Hot Top 8. 850°F Hot Top Thermostat INDUCTION COOKTOP 30” INDUCTION COOKTOP 36” RANGE TOP RANGE TOP Rotary...
-
Page 13: Induction
3 PH. SUPPLY WITH A NEUTRAL AND GROUND WIRE. RANGETOP CIRCUIT (INDUCTION MODULES) CIRCUIT BREAKER RIGHT ITEM PART NUMBER DESCRIPTION / MATERIAL FROM MODULES CREATED BY STUART R. CARTIER LANG MANUFACTURING 5-2-13 BASE CIRCUIT DR: SRC DATE: TITLE: 36S COOK TOP TERMINAL BLOCK... -
Page 14: Exploded View & Parts List
Note: if grooving is required, contact factory Old Style Sea Rails Marine Application SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE Model: SK2265 Rev. B 8/2/11 36" Range Top... -
Page 15: Parts List
CONTROL PANEL C&G ALL RT36C AND RT36G P9-RF21-306 CONTROL PANEL A&D ALL RT36A AND RT36D ALL RT36A VM, ALL RT36B VM & VCP, ALL RT36C VM, RT36D- Y9-50300-63 MARINE PAN LATCH ASSY 208VM & 240VM & 440VM, ALL RT36E VM... - Page 16 KNOB ASSY-INDUCTION RTI36E RT36F-208V & VM, RT36F-240V & VM, RT36F-208V RT36A-208V & VM, 240V & VM, RT36C-208V & VM, 240V & VM 2J-31601-01 PILOT LT 250V 6LEAD BLK RT36B-208V & VM, 240V & VM, RT36D-208V & VM, 240V & VM RT36A-440VM, 480V &...
- Page 17 2E-30500-09 TRM BLOCK 3 POLE SMALL 95 RT36B-440VM, 480V & VM, RT36D-440VM, 480V & VM RT36A-208V & VM, 240V & VM, RT36B-208V & VM, 240V & VM, 2E-31800-01 CB 250V50A 1 POLE CRLNGSW RT36C-208V & VM, 240V & VM, RT36D-208V & VM, 240V & VM,...
-
Page 18: Sea Rail Parts List
Lang Manufacturing Searail Assembly Part No. Description 50302-297-1 SEARAIL ASSY 1’ {RF&500} SK 50302-305 SEARAIL LH SIDE {ADD,RF & 500} 50302-306 SEARAIL RH SIDE {ADD,RF & 500} 50302-317 SEARAIL SIDE TO SIDE 12” 20109-04 SCREW THD MS SS 10-32X 3/8 Part No. - Page 19 Lang Manufacturing Searail Assembly continued Part No. Description 50302-300-1 SEARAIL ASSY 5’ {500} SK 50302-305 SEARAIL LH SIDE {ADD,RF & 500} 50302-306 SEARAIL RH SIDE {ADD,RF & 500} 50302-317 SEARAIL SIDE TO SIDE 12” 50302-315 SEARAIL FR TO BK {ADD,RF,500} 50302-309 SEARAIL FR &...
- Page 20 SEARAIL-FRT TO BACK-36” 2C-20109-04 SCRW THD MS SS 10-32X3/8 2C-20301-34 NUT HEX ACORN 10-32 S/S STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
