User Manual
AVD-800P

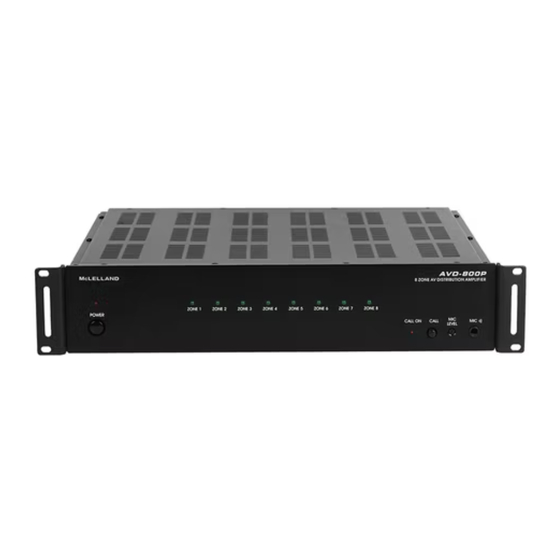

8 ZONES AUDIO/ VIDEO MULTI-ROOM/
SOURCES DISTRIBUTION AMPLIFIER
If you are looking for a security (Indoor & Outdoor) with the
multi zones provided for both Audio/Video Sources, and to
improve your unique lifestyle, we are proud to introduce
you the high quality McLELLAND AVD-800P.
Advertisement
Related Manuals for McLelland AVD-800P
Summary of Contents for McLelland AVD-800P
- Page 1 8 ZONES AUDIO/ VIDEO MULTI-ROOM/ SOURCES DISTRIBUTION AMPLIFIER If you are looking for a security (Indoor & Outdoor) with the multi zones provided for both Audio/Video Sources, and to improve your unique lifestyle, we are proud to introduce you the high quality McLELLAND AVD-800P.
- Page 3 CAT-5 RJ45 terminated patch cable and powering the controller Step 2: The AVD-800P amplifier should be turned on before any other cables are attached to it. This ‘on’, you can control the Source Selection, Volume Up/Down and Speaker Mute capabilities.
- Page 4 2. Zone Speaker Output (1-8): Use the included 4-conductor plug-in connector, (8 included) to connect speaker wires to the AVD-800P (see Figure 2) 3. Inter Data Loop: This RS-485 data controller can loop control up to 16 AVD-800P units of expand to 128 places (see Figure 3) 4.
- Page 5 Each conductor is screwed down to connector block and plugged into the speaker output on the back of the amplifer. The AVD-800P speaker terminals (amplifer output) are 8 ohms safe, please be sure to cor - tions where either more power is required for Zone or passing to other separate higher power amplifer, rect polarity by connecting the “+”...
- Page 6 Figure 5: ADDRESS/AGC DIP Switch Setting There is Eight IR emitters are supplied with your AVD-800P System, which can be IR Commands for the The AVD-800P DIP switch show the 7 Pin through Check selection, the 1-5 are Address Select, Pin 6 is the front panel broadcast function selection and when the Pin 6 is at "1"...
- Page 7 7.Vol: This LED lights to indicate when the volume function has be select 8.Function: The function led show the connection well with the main unit AVD-800p by the cables 9.Call: This LED lights to indicate when the Call function has be turn on.
-
Page 8: Remote Control
Remote Control Using the RCA type patch cables connect the Left and Right Output jacks of the source component (CD, Tuner, etc) to the appropriate source Audio Left and Audio Right Input Jacks on the AVD-800P. Tuner Figure 9: Video Connections:... - Page 9 AVD-800P SPECIFICATION Zones 1-8 Power Amplifier Outputs Continuous Average Output Power 20W/channel(2 channels/zone) Two channels driven 30-20kHz @10%TH D Rated Distortion (1/2 power) 0.4 % Rated Impedance 8 Ohms 20-20kHz +/- 2dB Frequency Response +/- 9 dB @ 100 Hz...
