McLelland PLA2DI Owner's Manual

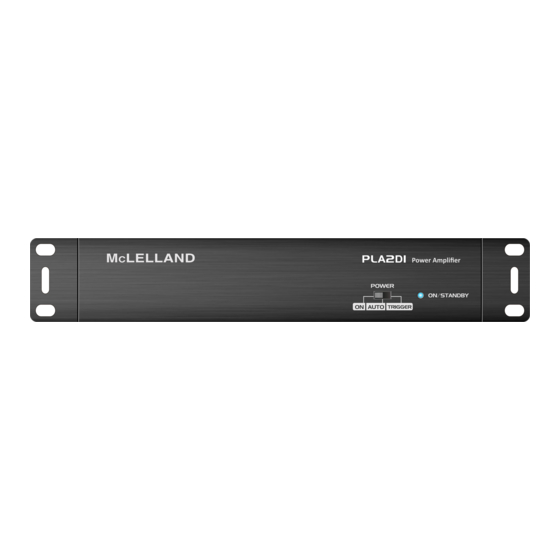

Power amplifier 240w
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

PLA2DI
240W
POWER AMPLIFIER
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLA2DI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for McLelland PLA2DI

Summary of Contents for McLelland PLA2DI

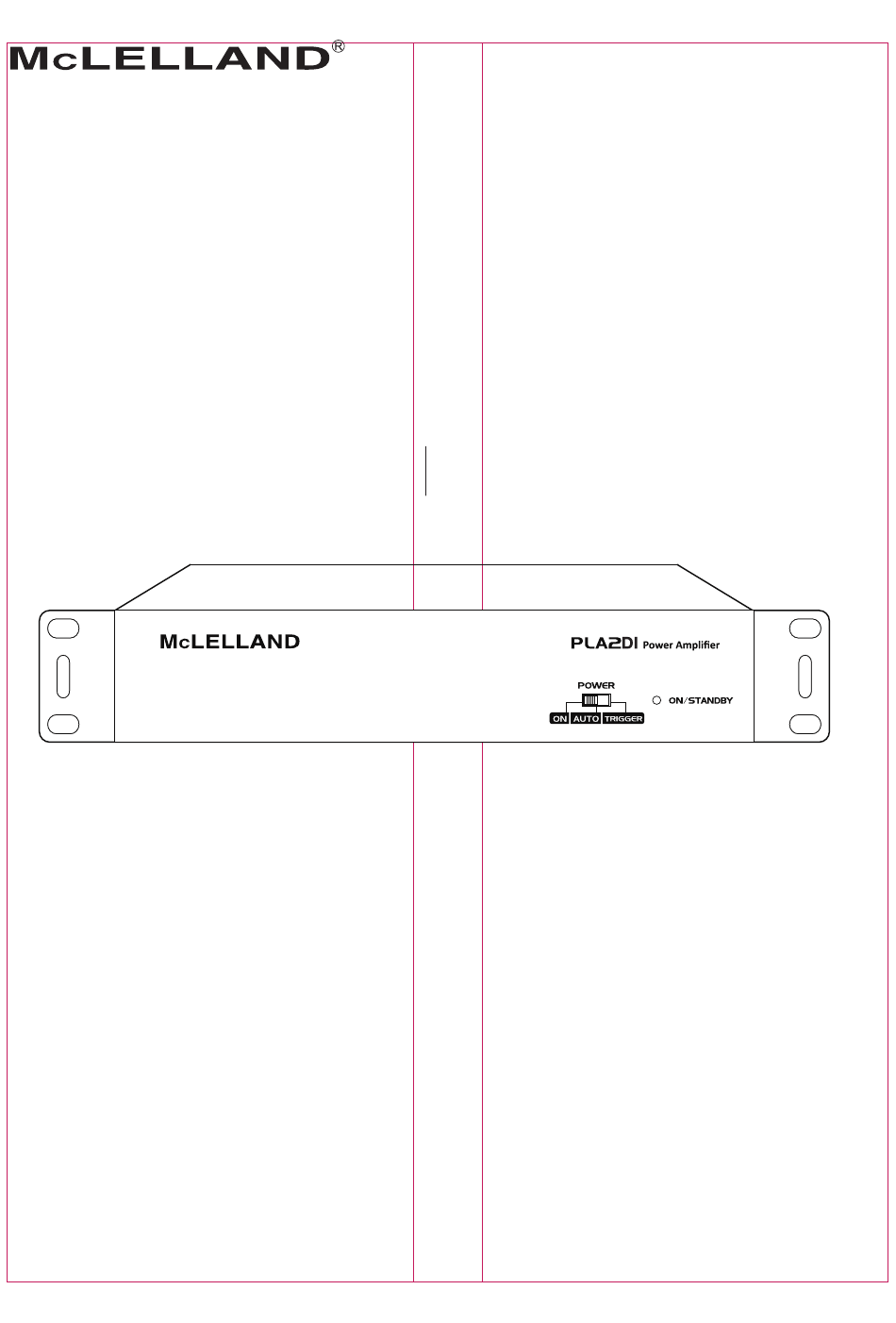

  • Page 1 PLA2DI 240W POWER AMPLIFIER OWNERS MANUAL...

  • Page 3: Front Panel Features

    FEATURE * Two Channels Model – 120W RMS/Per * Terminal Block analog audio inputs. Channel * Selection for Power-Up mode. * Slot card for Dante interface receiver * Switch for High Pass Filter. (DSC02). * Natural cooling without Fan. * Stereo into 4-8 Ohm loads. * TRIGGER could be external remoting * Bridged mode 240W output for 70V or ON/OFF.

  • Page 4: Technical Specifications

    1. INPUT: DSC02 Dante Interface receiver, 2. LEVEL : Adjust the level of output. connecting with Dante network switch. 3. HPF: High Pass Filter (80Hz) 4. TRIGGER IN : Apply 12VDC to this The network LED will illuminate yellow when connector to active the unit.

  • Page 5: Network Interface

    Latency from 2ms Power supply: PoE, 52V 36 mA DANTE CONTROLLER The tables below list the minimum system PLA2Di is built in Dante interface and specifications for the computer to use Dante compatible with the software “Dante Controller : Controller”.

  • Page 6: Connection Diagram

    CONNECTION DIAGRAM CONNECTION DIAGRAM Stereo mode (4 Ω / 8 Ω) Set to 4Ω / 8 Ω Bridged mode (HIZ 70V / 100V) Set to HIZ Determine 70V or 100V...
