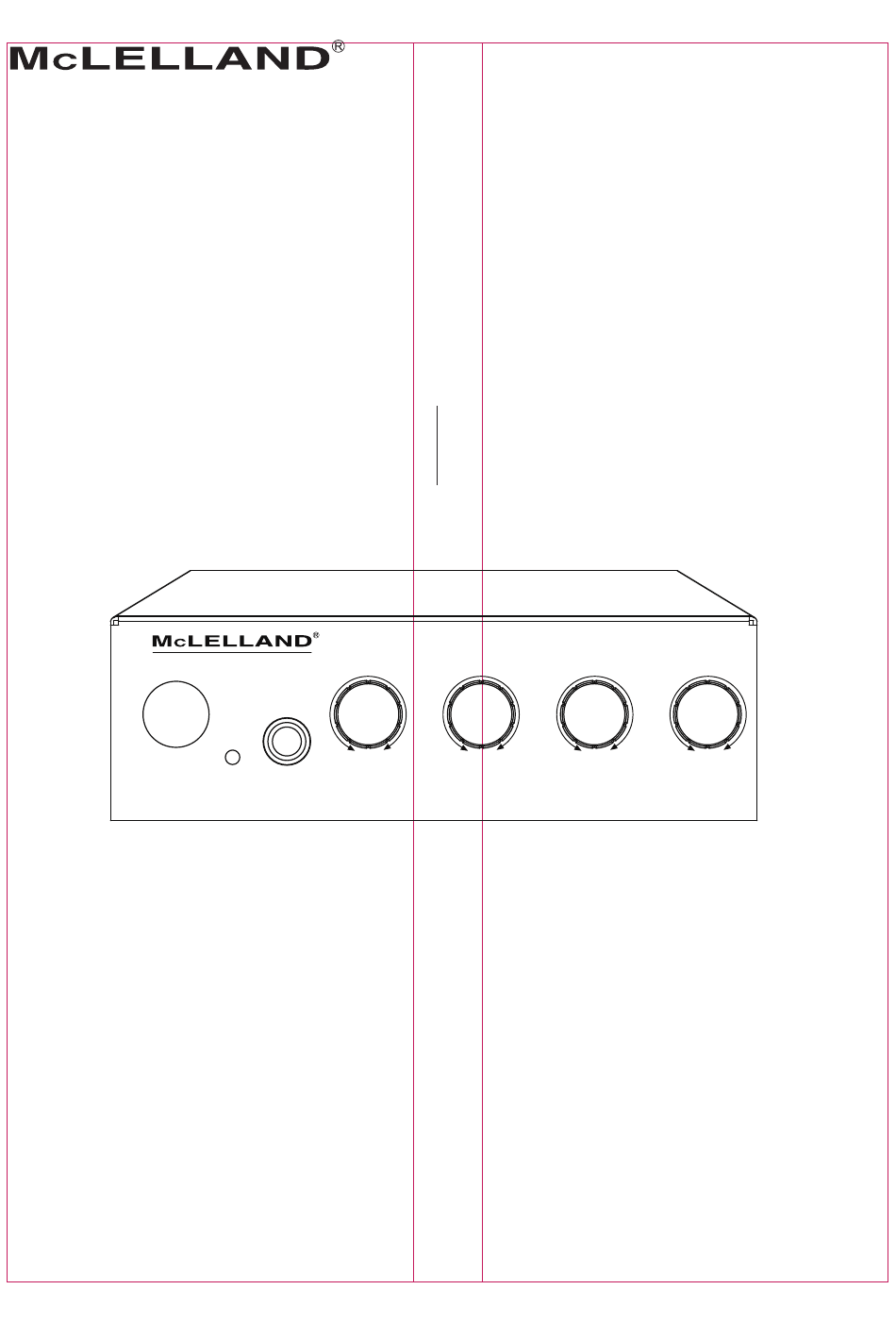

- Page 1 AMP- CLASS D MINI STEREO D25MC AMPLIFIER WITH MIC INPUT AMP-D25MC POWER MIC VOLUME BASS TREBLE VOLUME OWNERS MANUAL...
- Page 3 INTRODUCTION AMP-D25MC is an ideal solution for residential and commercial audio installations that require a simple setup and great sound output. With a small footprint, but high output, these Class D amplifiers can sit on a desktop, or can easily be mounted on a wall or within a rack using the included mounting brackets.

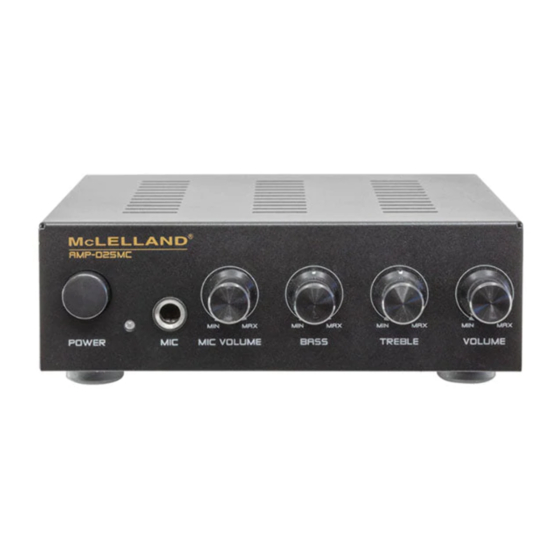

- Page 4 FRONT PANEL AMP-D25MC POWER MIC VOLUME BASS TREBLE VOLUME 1. Power Switch 4. MIC Volume To Turn on the amplifier. Adjusts the output volume of connecting microphone. 2. LED indicator Green: Power On 5. Bass Control : +/-12dB Red: Standby mode Adjusts the Bass of master output.
- Page 5 CONNECTION DIAGRAM MIC input AMP-D25MC POWER MIC VOLUME BASS TREBLE VOLUME OUTPUT 4/8Ω 4/8Ω STEREO AC IN: 110V - 240V, 50/60Hz 60W INPUT BRIDGE...
