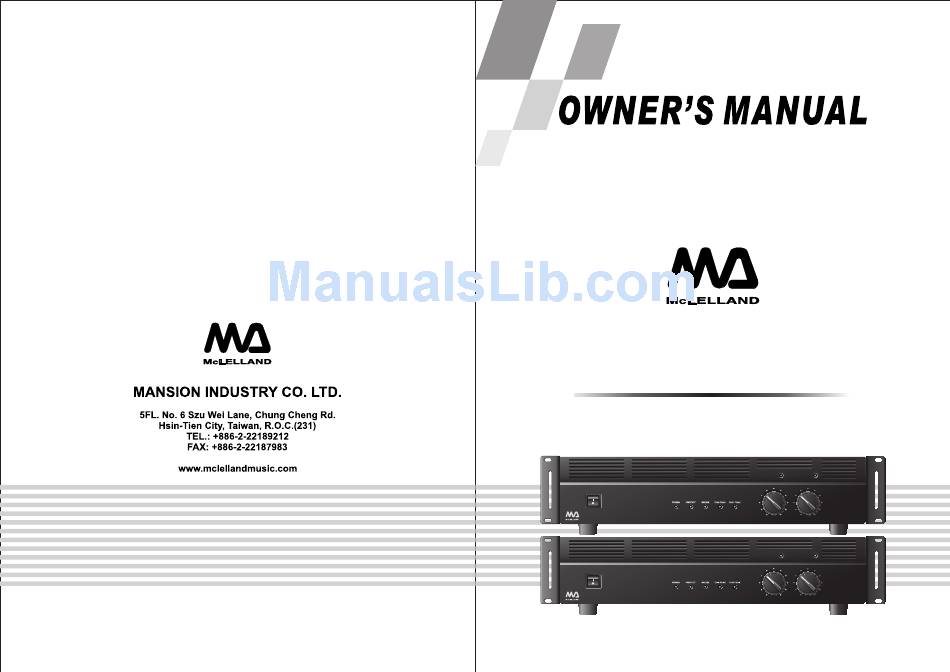

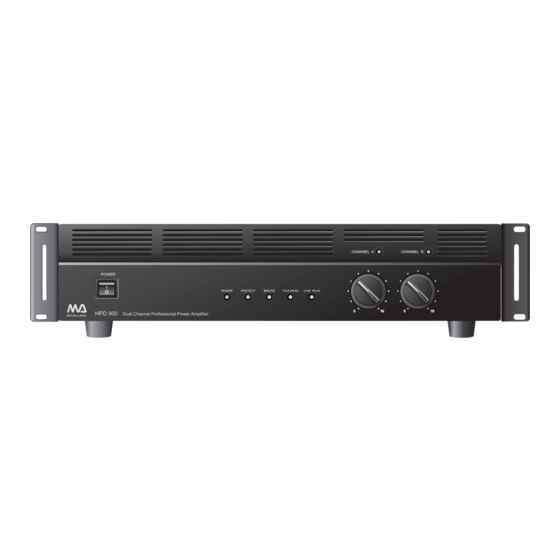

- Page 1 HPD-900/1500 Professional Amplifiers CHANNEL A CHANNEL B POWER HPD 900 Dual Channel Professional Power Amplifier CHANNEL A CHANNEL B POWER HPD 1500 Dual Channel Professional Power Amplifier...
- Page 2 APPLICATION 2 BRIDGED INSTALLATION McLELLAND LM Series Console Mixer From mixing console mono out (Optional connection using 1/4" TRS connector) Output mode set to BRIDGED Input sensitivity set to match input signal level Passive Speaker NOTE: 1. The HPD Series Power Amplifiers will supply high power to speakers in BRIDGED Mode(Refer to the Specification Chart on Page 5).
- Page 3 APPLICATION 1 STEREO INSTALLATION McLELLAND LM Series Console Mixer From mixing console Left and Right main out (Optional connection using 1/4" TRS connectors) Output mode set to STEREO Input sensitivity set to match input signal level Passive Speakers NOTE: 1. The HPD Series Power Amplifiers will supply high power to speakers in STEREO Mode(Refer to the Specification Chart on Page 5).
-
Page 4: Performance Specifications
Introduction Congratulations on choosing McLELLAND HPD Series professional high power amplifier! The HPD series power amplifier come with the Class AB design output circuitry and high-current toroidal transformer to ensure generous energy reserves even at 2 ohm load, deliver a premium quality, combine light weight and extremely high power, and plus even greater value.
