Summary of Contents for McLelland PR-150

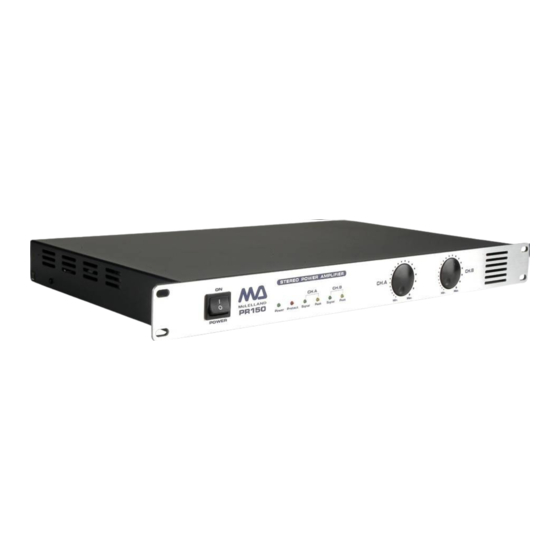

- Page 1 STEREO POWER AMPLIFIER OWNER MANUAL PR-150 DESIGNED IN U.K. PDF created with FinePrint pdfFactory trial version http://www.fineprint.com...
- Page 2 INTRODUCTION Congratulations on your purchase of MA PR-150 Stereo Power Amplifier. The performance of PR-150 is perfect for any audio application, musician, performer, studio engineer, and sound contractor. We have many years of experience in manufacturing audio products, and excellent research and development, have enable us to provide an amplifier with the highest quality and reliability.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Read, follow, heed , and keep all instructions and warnings. • Do not operate near any heat source and do not block any ventilation opening on this apparatus. For proper operation, this unit requires 3” (75cm) of will ventilated space around heatsinks and other air flow provisions in the cabinet. -
Page 4: Front Panel Information
+2dBv. Normal calibration of the PR-150 to a mixer would cause the Peak LED to flash at the same time that the mixer’ s VU meters indicate full output. -
Page 5: Rear Panel Information
FUSE: T2 A, 2 5 0 V 8.FAN INTAKE AREA: Air for cooling the PR-150 is drawn in by the fan at the rear and side, directed through the amplifier, and exhausted through the front panel vent. Do not block or impede the airflow through these vents and keep the area free of foreign materials. - Page 6 14.FUSE HOLDER: The unit use an AC line fuse to help protect it from damages due to excessive current demands. If the amplifier does not function, check this fuse. If it is blown, replace it ONLY with the same size and type as indicated near the holder. If the fuse blows repeatedly, have the amplifier checked by a qualified service person.
-
Page 7: Installations And Operation
INSTALLATIONS AND OPERATION 1. Stereo Operation: The PR-150 can be used in the Stereo Mode as two separate 150 watt units, each capable of driving loads down to 4 ohms. Each channel operates independently and has its own input connectors, sensitivity level controls, signal indicator LEDs, automatic limiter, fault protection circuitry, power amp, and speaker outputs. - Page 8 “slave” or “patch” Channel 2 to Channel 1. One method is to connect a short cable from the unused Channel 1 input jack (either XLR or 1/4”) to one of the Channel 2 input jacks. In this way, up to four 8 ohm speakers may be driven at once. The Stereo/Mono Bridge switch must be set to the MONO mode.
- Page 9 the amplifier for the speakers and the other for the monitors. The Stereo/Mono Bridge switch must be set to the STEREO mode. 120 V 2 30V 12 0 V 6 0 Hz, 4 5 0 W FUS E: T4 A , 2 5 0 V 2 3 0 V 5 0 H z, 4 5 0 W FUS E: T2A , 2 5 0 V PDF created with FinePrint pdfFactory trial version...
- Page 10 4. Patching Two Bridged Mono Mode Systems: Two Bridged Mono amplifiers can be patched together by connecting a signal cable between their input jacks. The Stereo/Mono Bridge switch of each amplifier must be set to the MONO mode. 120 V 2 3 0V 12 0 V 6 0 Hz, 4 5 0W FUSE: T4 A , 2 5 0 V...
- Page 11 5. Mono Bridge Operation: The two internal power amplifiers can be bridged together to form a single, higher-powered amplifier this is especially useful when using the amplifier to power a subwoofer. In the Mono Bridge mode, the amplifier uses the Channel 1 input jacks and Sensitivity control (Channel 2’...
- Page 12 6. Triamping With Two Amplifiers: Two PR-150 can be used to separately power the lows, mids and highs of a three-way system. The Stereo/Mono Bridge switch of the amplifier driving the subwoofer must be set to the MONO mode. The Stereo/Mono Bridge switch of the amplifier driving the midrange and high frequency components must be set to the STEREO mode.
- Page 13 7. Biamping With A Single Amplifier: A PR-150 can be used to separately power the lows and highs of a cabinet with biamp inputs, or a separate low and high frequency cabinet. For Biamp Operation, the Stereo/Mono Bridge switch must be set to the STEREO mode. Use Channel 2 for the high frequencies and Channel 1 for the lows.
-
Page 14: Specifications
SPECIFICATIONS ： 100W Watts @ 8 Ohm/per Channel ： 150W Watts @ 4 Ohm/per Channel ： 300W Watts Bridge 8 Ohms Frequency Response :+/- .35dB, 20Hz - 20KHz ： THD (1KHz) 0.02% ： < 0.06% THD (20Hz-20KHz ) ： >101dB Hum &... - Page 15 The specifications contained herein are subject to change without notice. PDF created with FinePrint pdfFactory trial version http://www.fineprint.com...
