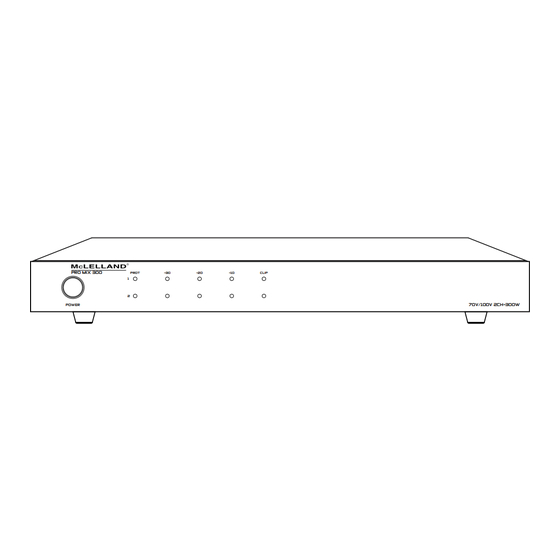

- Page 1 PRO MIX 70V/100V 300/500 PUBLIC ADDRESS AMPLIFIER PRO MIX 300 PROT CLIP 70V/100V 2CH-300W POWER OWNERS MANUAL...
-
Page 3: Specifications
* Universal 100V-240V AC Power Supply SPECIFICATIONS Power Output: PRO MIX 300: 70V 300WX2 (RMS @ 9.8 )/100V 300WX2 (RMS @ 20 ) PRO MIX 500: 70V 500WX2 (RMS @ 9.8 )/100V 500WX2 (RMS @ 20 ) Total Harmonic Distortion (THD): <1%(Rated power: 300Wx2 1KHZ) Signal to Noise: >90 dB A WTD... -
Page 4: Front Panel
FRONT PANEL PRO MIX 300 PROT CLIP 70V/100V 2CH-300W POWER 1. Power switch 3. Output Level LED To turn the amplifier on or off. Indicates the output level of each channel, the range is from -30dB to -10dB. 2. Protection LED Green: Normal operation. - Page 5 IR REMOTE CONTROL IR CONNECTION 1. POWER ON POWER POWER 2. POWER OFF 3. Input Source Selection SOURCE 4. CH1 Volume UP 5. CH1 Volume Down 6. CH1 Mute MUTE VOL+ VOL- 7. CH2 Volume UP 8. CH2 Volume Down VOL- MUTE VOL+...
-
Page 6: Connection Diagram
CONNECTION DIAGRAM Source 3 and Source 4(Balanced Input) Source 2 (Unbalanced Input) Source 1 (Unbalanced Input) From Automation System 12V Trigger Output Single Source with Stereo Outputs Left to CH1 Right to CH2 Right (CH2) LOOPOUT Left (CH1) Two Sources with Two Mono Output...
