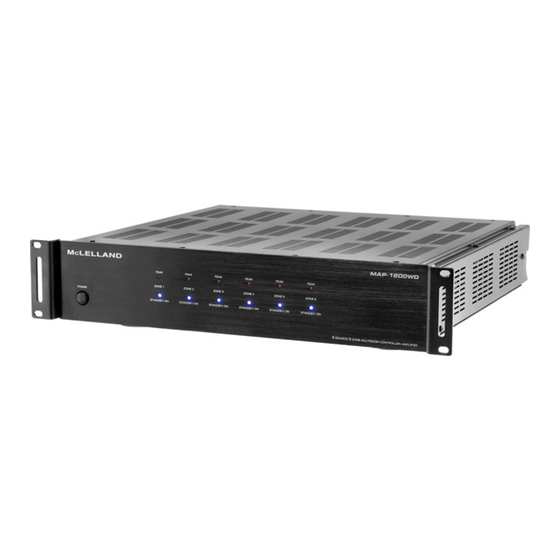

- Page 1 6X6 AUDIO DISTRIBUTION AMPLIFIER MCLELLAND MAP1200WD 6x6 audio matrix with 6 bridgeable zones to accomodate 1 or 2 speakers per zone Integrated wifi adapter + Android and IOS app allows for effortless control via smartphone or tablet...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED. WARNING 1. - Page 3 25W @ 8 Ohm Power by Class D amplifier to up to 18 zones which at can be controlled by packaged keypads (included with MAP1200WD), RS232, IR, or via Wifi with the iOS and Android apps. Overall the distribution system is easy-to-install, so every audiophile can enjoy the powerful audio wherever they are.
-
Page 4: Specifications
System on Voltage ...........DC +12V External Mute Voltage........DC +12V Power Supply .............AC115V/60Hz, 230V/50Hz Output Connection ..........Terminal Block Dimension ............16.9”W x 3.5”H x 16.4”D Weight ..............25 lbs PACKAGE CONTENTS MAP1200WD: • 6x6 Amplifier • Remote Control • Expansion Ribbon Cable •... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. Power ON/OFF Switch 2. PEAK LED indicates if a connected source level is too high. If the PEAK LED is RED, reduce the zone input or output level. 3. Standby/Zone ON LED- When this LED is BLUE this indicates a zone is not on or in Standby mode. - Page 6 KEYPAD 1. Numeric LED Display 2. IR Receiver Target 3. Selection and Status LED’s 4. Power/Status. Press and Hold to Turn Zone ON/OFF. When ON, Press to toggle through settings 5. Increase Volume, Treble or Bass 6. Decrease Volume, Treble or Bass 7.
-
Page 7: Remote Control
REMOTE CONTROL 1. Power: switches power (On/Off) for the certain zone. 2. Mute: allows you to mute a certain zone. 3. BAL: These L & R buttons can adjust the balance of L/R channel in stereo mode. 4. VOL: Volume adjustment 5. -
Page 8: Connect And Operate
CONNECT AND OPERATE Before you begin to install the MAP1200WD it is important to implement good installa- tion practices: 1. Make sure that AC power is disconnected before making ANY connections to the main unit and attached devices. 2. Install in a well-ventilated environment 3. -
Page 9: Connecting The Speakers
CONNECTING THE SPEAKERS The MAP1200WD can work with speakers that are 4-8 Ohm. There are two modes that can be set for different setups: Stereo or Bridge. An 8 Ohm speaker can only be used when in Bridge mode. To choose between... - Page 10 CONNECTING THE KEYPADS The MAP1200WD comes with 6 POE enabled keypads. This allows for source control from each specific zone as well as IR routing to the appropriate source devices once selected. The MAP1200WD also comes with a hub that allows for all 6-keypads to be connected to the amp via Cat5e/6.
- Page 11 STATUS PORTS There are six 12Vdc trigger outputs which correspond to the six output zones. When a zone is powered ON by the MAP1200WD keypad, the corresponding zone sends 12Vdc to the trigger output jack. The triggers can be used to automatically switch peripheral equipment ON or OFF.
- Page 12 Plug: Tip is Positive (+) Trigger Outputs for Zones 1 ~ 6: Zone ON; 12Vdc applied to the TRIGGER OUTPUT, Zone OFF; 12Vdc removed from the TRIGGER OUTPUT. CONTROL: When any zone is on, 12Vdc applied to the CONTROL OUT. When All zones are OFF, 12Vdc removed from the CONTROL OUT Trigger Inputs: PA- IN: Apply 12Vdc for input #1 override on all six zones.
- Page 13 CASCADING SOURCES INTO ADDITONAL ZONES The MAP1200WD can allow 6 sources to be distributed to up to 18 zones on 3 different units using the provided ribbon cable to connect between units. To do this first each unit needs to be addressed according using the MASTER/SLAVE switch.
- Page 14 Control After downloading both apps from the appropriate mobile app marketplaces, open the Install app to begin linking your wireless device to the MAP1200WD NOTE: YOUR WIRELESS DEVICE MUST BE ON THE SAME WIRELESS NETWORK YOU INTEND ON USING AFTER SETUP.
- Page 15 Once the PA66-WIFI app is opened, press on the + icon. Next, ensure that the SSID of the network your wireless device is the same as it is found on the app. Enter the Wi-fi password Once all of the information has been entered correctly, press on the Configuration button.
- Page 16 USING THE CONTROL APP Now that the integrated Wi-Fi adapter has been configured to the network, you can now access and use the PA66 App. 1. Zone numbered 1-6: touch to select a different zone to control 2. Name of zone being controlled. This can be customized by touching the label.
- Page 17 4. Adjusts treble. Status shown on right 5. Adjusts bass. Status is shown on right 6. Adjusts left and right balance in Stereo mode 7. Press to change the source being played on the current zone. The name of the zone is shown on the right but is customizable once the Source button has been selected.
