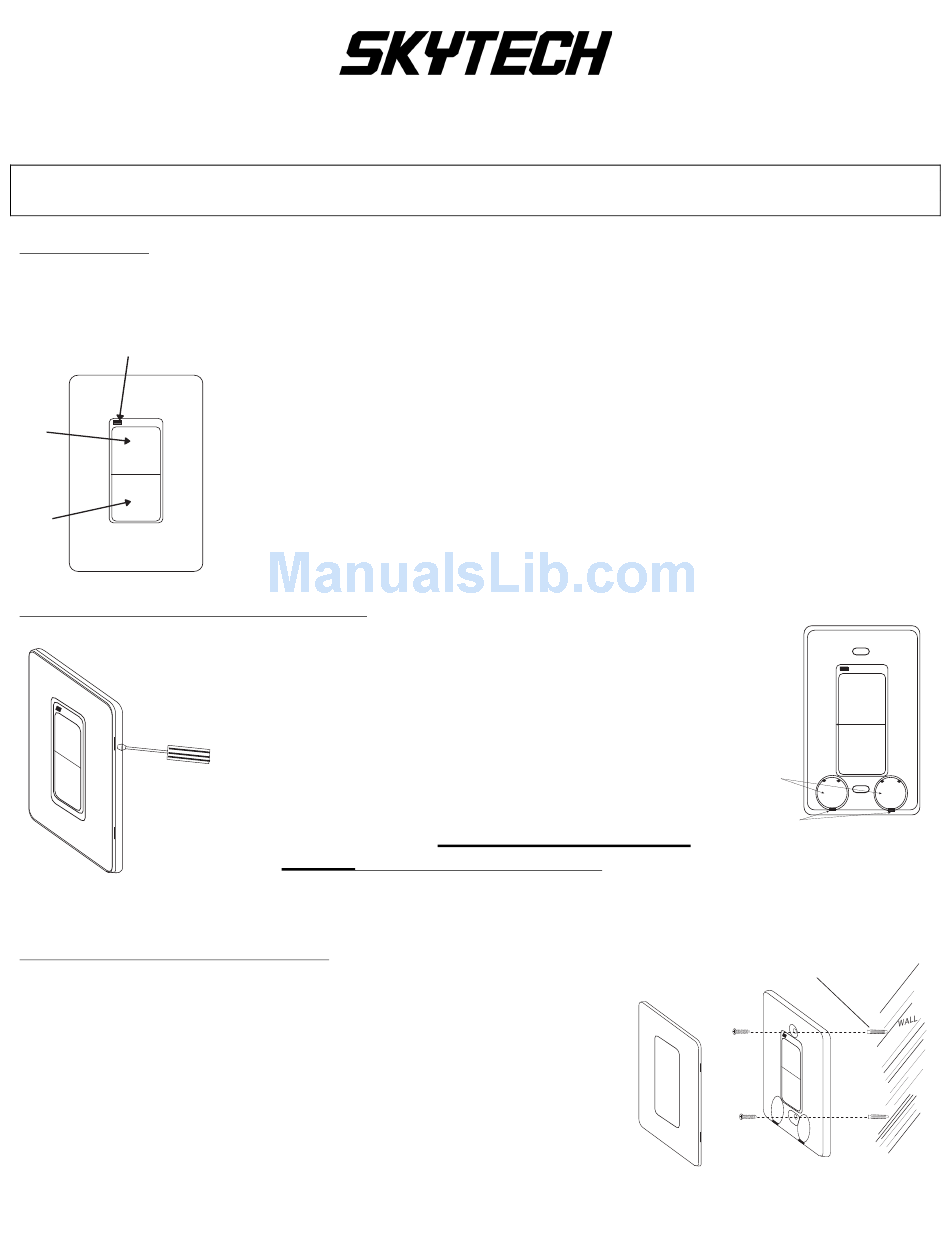

Skytech 1001D-TX Installation And Operation Instructions

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO

INTRODUCTION

This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas heating
appliances. The system can be operated manually from the transmitter.
Indicator Light
ON
OFF

INSTALLING AND REPLACING BATTERIES

Insert small screwdriver
into slot at the top or bottom
and pop cover off

WALL MOUNTING THE TRANSMITTER

Remove faceplate from the base by inserting a small screwdriver into
•
the small slot at the top or bottom of the faceplate then popping it off.
Locate the (2) two mounting holes and mark the holes on the wall.
•
Use the (2) two dry wall anchors and screws (supplied) to mount the
•
base plate to the wall as shown.
Then snap the faceplate back on to the wall-mounted transmitter.
•
The wall transmitter can also be mounted onto an existing (not metal)
•
electrical box.
_________________________________________________________________________________________________
Skytech 1001D-TX
Model: 1001D-TX
INSTALLATION AND OPERATION INSTRUCTIONS
INSTALL OR OPERATE
The wall transmitter operates on a (2) 3-volt button cell batteries (included). Before
using the wall transmitter, install the (2) 3-volt button cell batteries. Follow instructions
below.
The wall transmitter has an ON/OFF rocker switch. When the rocker switch on the wall
transmitter is pressed, a signal light on the wall transmitter illuminates briefly to verify
that a signal has been sent. If the signal light does not illuminate it could be the
batteries. Be sure the batteries are installed with the (+) and (-) ends facing the
correct direction, and are fully charged.
Remove the faceplate from the base by inserting
•
a small screwdriver into the small slot on the side of
the faceplate (shown on left) then popping it off.
To take the batteries out, insert a small
•
screwdriver into the slot at the button cell battery
(shown on right) and pop the batteries out.
Place the button cell batteries into the battery
•
holders, inserting the top edge under the metal clips
and snap into place. Make sure that the batteries are
installed with the (+) plus side facing up.
After the batteries are installed replace the
•
faceplate on the base.
(ONLY)
Insert small screwdriver
into slot and pop out
batteries from holder
REV. 12-26-13 Page 1 of 3
Insert batteries
into holder and
snap into holder
+
+
Plus Plus
Side
Side
Plastic Anchor
