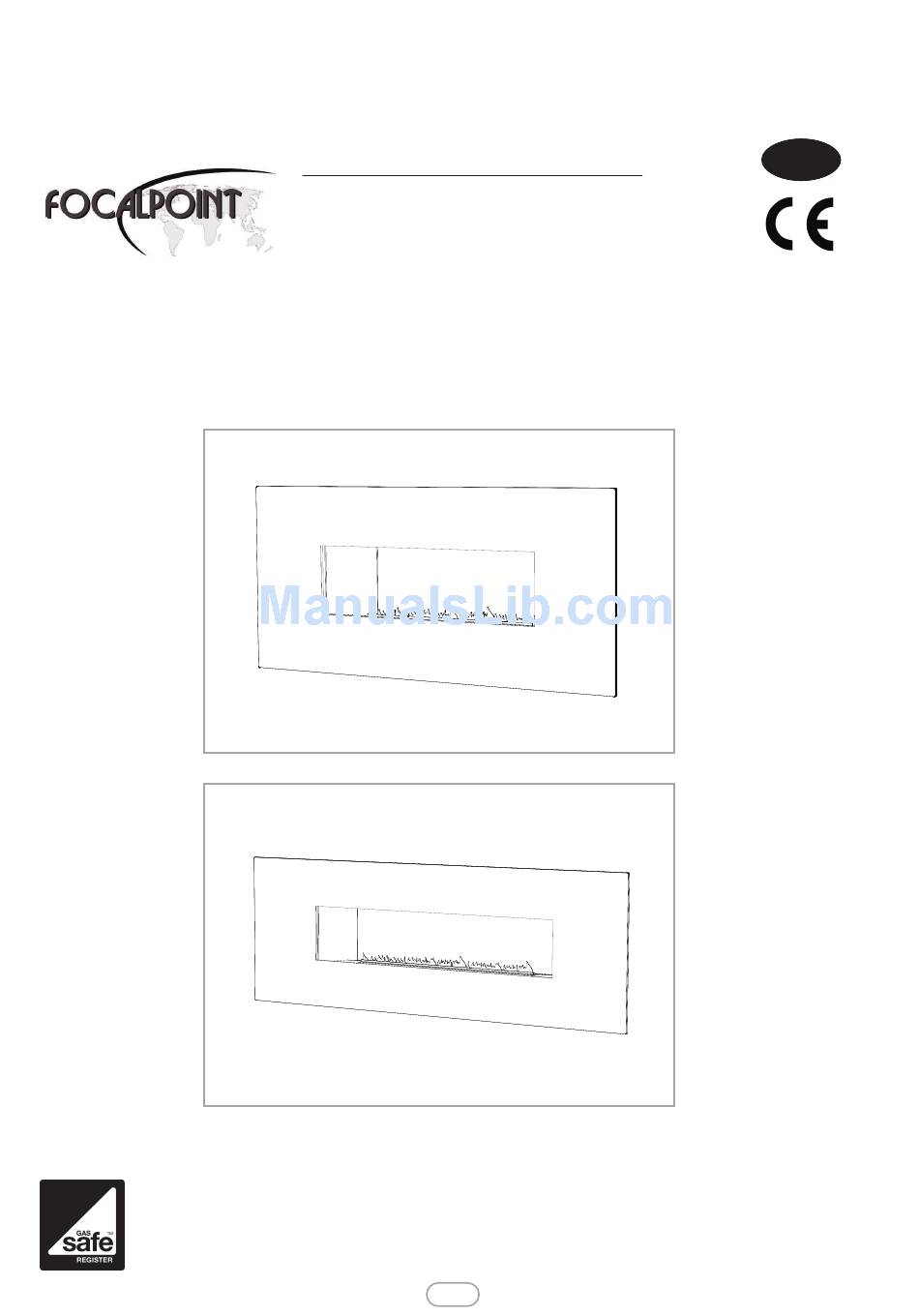

Focal Point L23S MIDNIGHT NG Installation & User's Instructions

Hide thumbs Also See for L23S MIDNIGHT NG:
Table of Contents

Advertisement

Quick Links

INSTALLATION & USER INSTRUCTIONS
WALL MOUNTED HIGH EFFICIENCY GAS FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including copyright
in the text, images and layout of this booklet is owned by Focal Point Fires
plc. You are not permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.
MODELS COVERED BY THESE INSTRUCTIONS
L23S MIDNIGHT NG
L23S PORTOBELLO NG
L30S VESUVIUS NG
L23S MIDNIGHT LPG
L23S PORTOBELLO LPG
1
L23S MIDNIGHT
L23S PORTOBELLO
L30S VESUVIUS
All instructions must be handed to the user for
safekeeping.The products covered by this booklet
are protected under patent GB2275331C.
Revision D - 11/13
GB IE
2013 Focal Point Fires plc.
'
