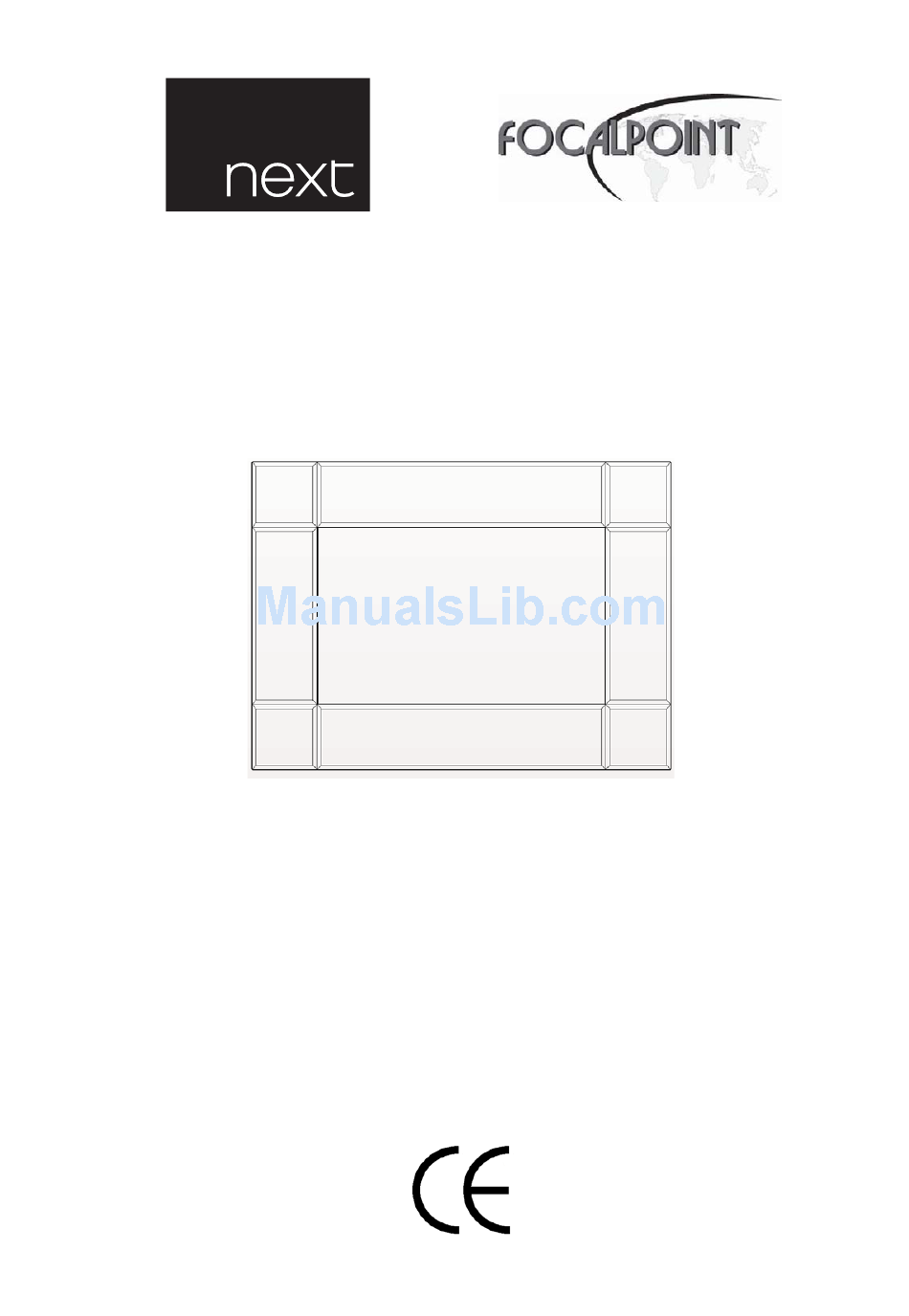

COMO
MODEL : L23
WALL MOUNTED FLUELESS GAS FIRE
INSTALLATION INSTRUCTIONS
It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered fitter) and in
accordance with the Gas Safety (Installation and Use) Regulations 1998.
All instructions must be handed to the user for safekeeping.
Revision A - 05/07
Country(s) of destination - GB/IE
Focal Point Fires plc, Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e-mail: sales@focalpointfires.co.uk
©
2007 Focal Point Fires plc.
Advertisement
Table of Contents
Related Manuals for Focal Point COMO L23
Summary of Contents for Focal Point COMO L23
-
Page 1: Installation Instructions
COMO MODEL : L23 WALL MOUNTED FLUELESS GAS FIRE INSTALLATION INSTRUCTIONS It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998. All instructions must be handed to the user for safekeeping. -
Page 2: Table Of Contents
I N S T A L L A T I O N I N S T R U C T I O N S Section Contents Page No. Section Contents Page No. Testing and Commisioning Important Notes Operating the Appliance Appliance Data Spark Failure Installation Requirements... -
Page 3: Appliance Data
APPLIANCE DATA Gas Group G20 Natural Gas CAT I2H Inlet Pressure 20 mbar (± 1.5 mbar) Max Energy Input Gross 2.0 kW 1.8 kW Max Gas Rate 0.20 m3/h Min Energy Input Gross 1.3 kW 1.15 kW Pilot Energy Input Gross 166 W 150 W... -
Page 4: Ventilation
SITE REQUIREMENTS (continued) Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made mate- rials impervious to flame. If in doubt refer to the material manufacturer for further information before proceeding with installation. -
Page 5: Unpacking The Appliance
UNPACKING THE APPLIANCE Remove the outer packaging, remove any instructions or fixing kits. Read ALL these instructions before continuing to unpack or install this appliance. Lift off the remaining packaging components and remove the contents of the box. Check that the components supplied correlate with the component checklist. Please dispose of all the packaging materials at your local recycling centre. -
Page 6: Fixing The Appliance
FIXING THE APPLIANCE After having selected the final mounting position of the appliance, taking into account the site requirements as F860060 ISSUE C - 16/8/06 POSITION SPIRIT LEVEL ALONG THIS EDGE TO LEVEL TEMPLATE BEFORE WALL MOUNTED L23G, L27G & L23E MARKING OUT WALL FITTING TEMPLATE specified in section 4 of these instructions, the integrity... -
Page 7: Testing And Commisioning
TESTING AND COMMISSIONING Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS6891. OPERATING THE APPLIANCE The pilot is visible behind the left hand side of the burner. ‘OFF’... -
Page 8: Fitting The Decorative Frame
FITTING THE DECORATIVE FRAME ASSEMBLY Remove the mirrored facia panel from any protective packaging. The glass facia panel is supported by four M6 screws which protrude from the front of the outer cas- ing. Ensure each screw is unscrewed approxi- mately one turn from the fully screwed in position in order to create a 2mm gap (shown). -
Page 9: Servicing The Burner Unit
10.1 SERVICING THE BURNER UNIT AND GAS ASSEMBLY Firstly, remove the decorative frame/glass facia assembly as described in section 8.4. Remove the inner glass panel, and disconnect the gas connection inside appliance. The gas connections to the gas valve can now be released. Detach the burner front cover plate by removal of the four retaining screws. -
Page 10: Testing For Firebox Leakage
10.3 CATALYSTS (continued) Now divide the concentration of carbon monoxide (CO) expressed in percent by the concentration of carbon diox- ide (CO2) to obtain the appliance combustion ratio. CO (%) CO2 (%) = ratio The combustion ratio of the gasses emitted by the catalytic convertor should not exceed 0.0015. If replacing, firstly, remove the decorative frame/glass facia as described in section 8.4. -
Page 11: Troubleshooting Guide
11.0 TROUBLESHOOTING GUIDE Fire sparks but pilot does not light No gas to fire, check isolators are open. Pipe work blockage, clean out. Air not fully purged, re purge supply or wait longer. Spark earthing to metal work, reset gap correctly. Blocked pilot, clean out internally. -
Page 12: User Instructions
COMO MODEL : L23 WALL MOUNTED FLUELESS GAS FIRE USER INSTRUCTIONS It is the LAW that all gas appliances and fittings are installed by a competent person (such as a CORGI registered fitter) and in accordance with the Gas Safety (Installation and Use) Regulations 1998. All instructions must be handed to the user for safekeeping. - Page 13 U S E R I N S T R U C T I O N S Section Content Page No Important Notes Clearances to Combustibles Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing List of Replacement Parts IMPORTANT NOTES The installation and Servicing of this fire MUST only be carried out by a competent person (such as a CORGI reg- istered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British...
-
Page 14: Clearances To Combustibles
CLEARANCES TO COMBUSTIBLES Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made mate- rials impervious to flame. If in doubt refer to the material manufacturer for further information before proceeding with installation. -
Page 15: Operating Instructions
VENTILATION AND ROOM SIZE (continued) The room size should be a minimum of 23m (e.g. 10’1” x 10’1” x 8’) to allow adequate circulation of air and ensure the cor- rect operation of the fire.This volume may include adjacent spaces but these spaces must not be separated by a door. To cal- culate a room size in cubic metres (m ) divide the room volume in cubic feet (ft ) by 35.3.
