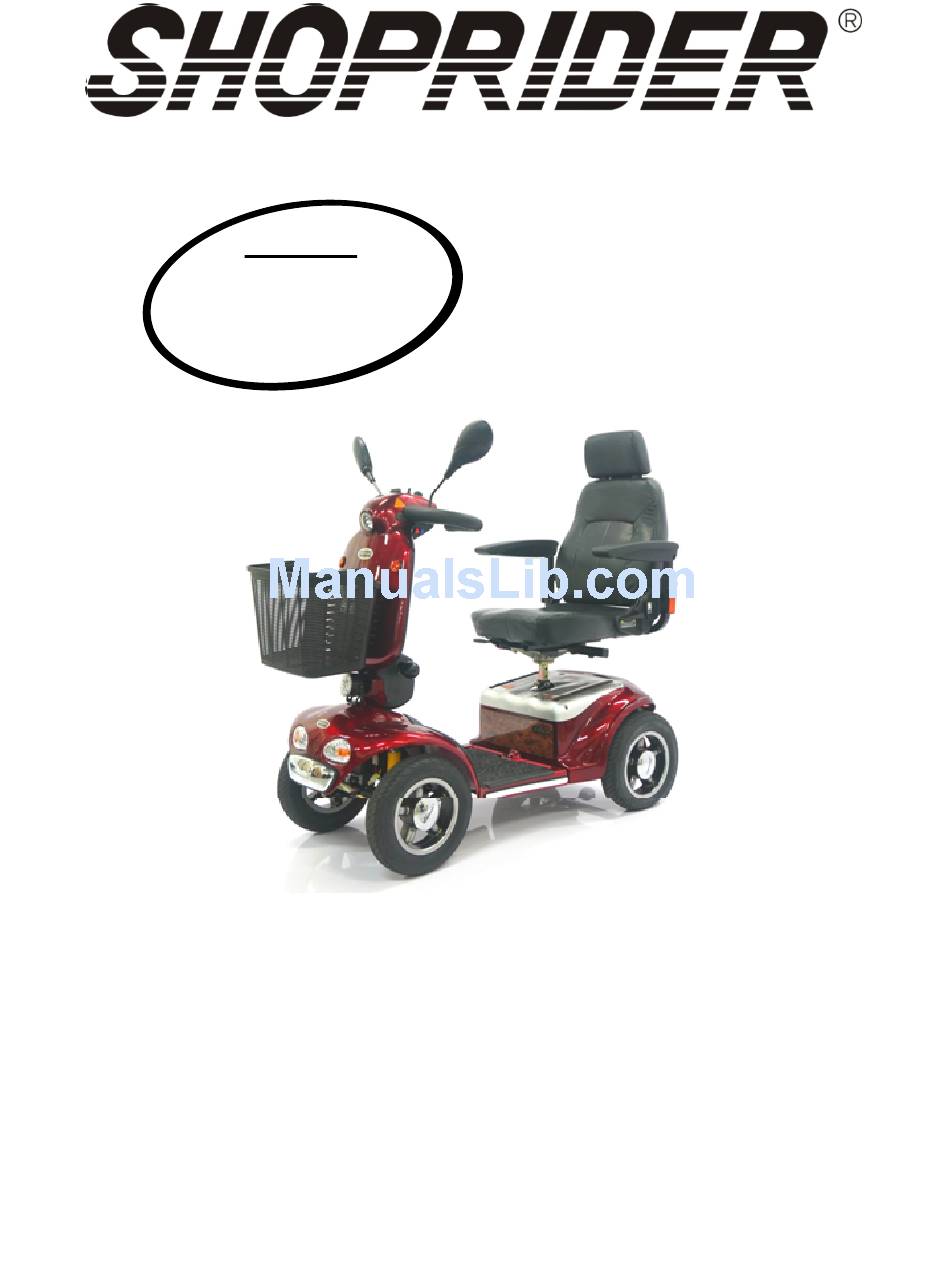

- Page 1 ATT ENT ION Please read your owne r’s manual before driving your scooter. TE-889SLF Owner’s Manual...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ........................3 FEATURE GUIDE ........................3 SAFET Y ADVICE .........................4 EMI Warning ........................6 ADJUSTMENT ........................8 SCOOTER TILLER CONTROLS ..................10 FREE WHEEL OPERATION .....................12 ST ART ING TO DRIVE YOUR SCOOTER.................13 EXTRA GUIDELINES IN THE CONT ROL OF YOUR SCOOTER ......14 BATTERIES AND BAT TERY CHARGER ...............15 MAINTENANCE ........................16 TROUBLE SHOOTING GUIDE ..................17... -
Page 3: Introduction
Congratulations on your purchas e of the Shoprider scooter. This sc ooter incorporates the ® latest innovative des igns patented and only a va ilable on a Shoprider sc ooter. This scooter c an be used in c onfined spaces both indoors and outdoors. -
Page 4: Safety Advice
SAFETY ADVICE • Do not c arry pass engers . • This mobility Produc t is intended to as sis t you. For your own safety, please read the Owner’s Manual before using the Sc ooter. If in any doubt, c ontact your supplier direc tly for advice. - Page 5 • Do not c onnect any foreign device to the scooter battery or c harging port. Th is could caus e failure of the devic e, the scooter and personal in jury. • Make sure the tiller is properly adjus ted and loc ked to the user or damage and injury could result.
-
Page 6: Emi Warning
EMI Warning ® Shoprider s cooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering e lec trom agnetic energy (E M) emitted from sources such as radio stations, TV stations, amateur radio (HAM) trans mitters , two-way radio, and cellu lar phones . The interferenc e (from radio wave sources) can cause the s cooter to release its brakes , move by itself, or move in unintended directions . - Page 7 NOTE! There is no e asy way to e valuate the ove rall immunity of the scoote r. ® 5. Report all incidents of unintended movement or braking to you r Shoprider dealer, and note whether the re are sources of EMI nearby.
-
Page 8: Adjustment
ADJUSTMENTS T iller Angle Adjustment (Fig. 1) The tiller c an be adjusted to five different positions. To decide whic h position bes t fits your needs, c arefully pull the large b lack ball that is loc ated on the left hand side, at the joint bas e of tiller, and gently lower or rais e the tiller to s elec t require angle. - Page 9 Seat Slide & Swivel Adjustment (Fig. 4) Pulling up on the seat s lide lever allows the s eat position to be ad justed forward or bac kward. Release the lever and the seat will lock in that pos ition. Under the right s ide of the s eat the re is a spring loaded red lever.
-
Page 10: Scooter Tiller Controls
SCOOTER TILLER CONTROLS (Fig. 7) Fig. 7 (1 & 2) Speed Controls The s peed c ontrol allows you to set a speed between 1 (minim um) and 10 (maximum ). Turn the d ial knob counter-c lockwis e to “minimum” to dec reas e s peed, and clockwise towards “maximum”... - Page 11 (6) Thumb/Finger Lever Controls The left thumb/finger lever c ontrols the reverse and the right thumb/finger lever c ontrols the forward motion. The amount of p ressure applied to each lever will determine the speed the scooter tra vels at. Release the le ver and the s cooter will s lowly c ome to a stop and the electromagnetic brake will be applied.
-
Page 12: Free Wheel Operation
FREE WHEEL OPERATION (Fig. 8) The free wheel re leas e lever (red handle ) is located inside the right rear wheel. To disengage the motor, lift up the lever (the s cooter can now be pushed). To re-engage the motor pus h down on the lever. -
Page 13: Starting To Drive Your Scooter
STARTING TO DRIVE YOUR SCOOTER Getting Starte d • Select a level area with p lenty o f s pac e. • Mount the sc ooter, either by lifting the arm and sliding on to the seat or rotate the seat outwards and then rotate the seat bac k to fac e the tiller. -
Page 14: Extra Guidelines In The Control Of Your Scooter
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER Ramps The s tability of your s cooter is governed b y s everal factors s uc h as the seating pos ition, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and whenever possible avoid making turns. -
Page 15: Batteries And Battery Charger
A/C cord from the wall then unp lug the 3-pin lead from the tiller. ® WARNING: Only use the original Shoprider approved charger! This charger is for indoor use only. DO NOT expose it to rain or water spray. -
Page 16: Maintenance
MAINTENANCE Lubrication At s ix-month inte rvals you should lubric ate the fo llowing parts with a light oil or similar lubric ant: • Seat p ivot post. • Seat releas e lever pinion . • Wheel bearings . • Axle of s cooter. CAUTION –... -
Page 17: Trouble Shooting Guide
Pleas e cons ult your deale r if your s cooter does not run after checking these points . Ple ase consult your selling Shoprider provide r if your scooter does not run after checking these points. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Model Name TE-889SLF Overall Dimensions: L x W x H mm(in) 1300(51) x 610(24) x 1310(52) Front Pneumatic Tire Di a meter pcs x in 2 x 13 Rear Pneumatic Tire Diameter pcs x in 2 x 13... -
Page 19: Notes
Notes... -
Page 20: Disclaimer
This scooter is not intended to be used by individuals with physical limitations that could ® prevent the us er from operating the s cooter safely. SHOPRIDER disclaims all res pons ibility for any pers onal in jury or property damage, which may oc cur as a result of improper or unsafe us e of its products.
