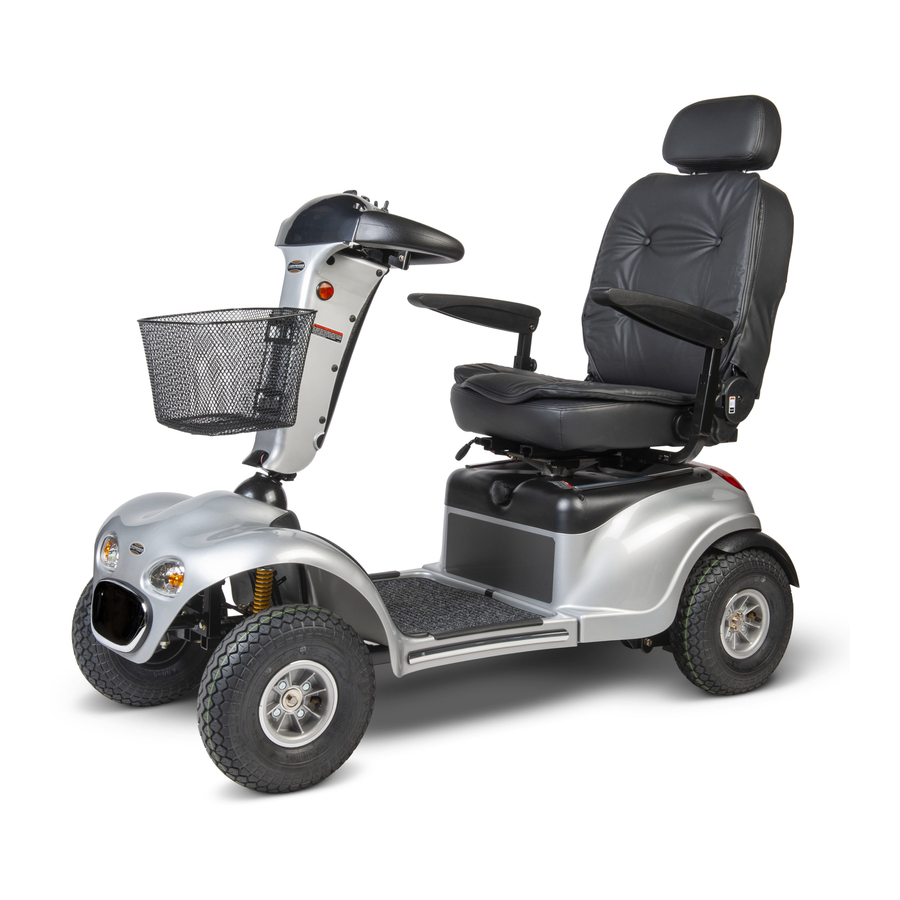

Introduction Congratulations on your purchase of your Shoprider® scooter. This scooter incorporates comfort and style with the latest in technology. The large tyres, powerful motor and full suspension ensure a comfortable ride. It is also complemented with a full light set that includes front and rear lights, indicators and hazard warning lights enabling it to be used on public roads.
Safety Advice Read this manual carefully before using your scooter. Turn the power off when transferring to and from the scooter. Select a slow speed when going down gradients or over uneven ground. Keep your feet inside the scooter whilst driving. ...
Adjustments Tiller Angle Adjustment On the left side of the tiller base is a red lever. Push the lever in to release the pin and select the required angle. Pull the lever back out and ensure the pin is securely located in one of the five adjustment holes.
Continued….. Armrest Width Adjustment The armrest width can be adjusted by loosening the two handknobs at the rear base of the seat, moving the armrest to the required width re-tightening Handknobs handknobs. DO NOT use the scooters with the armrest removed.
Tiller Controls Speed Control: This allows the user to set the maximum speed of the scooter between 1 (minimum) and 10 (maximum). Battery Level Indicator: The number of LED bars lit gives an indication to the amount of charge remaining in the batteries. The amount of charge will only show it’s true level Do not allow the LED bars to go out when the scooter is being driven.
Continued….. Horn: This yellow button operates the scooter’s horn. The horn should only be used to warn others of your presence and not as any form of rebuke. Thumb / Finger Lever Control: The finger / thumb lever controls the motion of the scooter as below:- Push right lever –...
Starting to Drive Getting Started Select a level area with plenty of space. Enter the scooter and adjust the tiller and seat as previously described to the desired driving position. Moving Off Turn the key clockwise to turn on the power. Ensure your batteries are fully charged.
DO NOT drive on public roads until you have the confidence and ability to do so. Technical Specification Your Shoprider® scooter is classified as: Class 1 Medical Device (93/42 EEC) Class 3 Invalid Carriage Overall Size...
Batteries and Battery Charger Batteries The scooter is supplied with two, maintenance free, sealed lead acid AGM batteries. These are fitted under the seat on the scooter. Battery performance can be affected by low temperatures, rough terrain and the weight of the user. Your battery gauge is a guide only on the level of charge remaining in the batteries.
DO NOT put the scooter through an automated car wash or similar. Routine Maintenance We recommend that the following checks be carried out on a periodical basis by a qualified person: Shoprider® Scooters Maintenance and Inspection Check / Charge Batteries ...
Continued….. Product Life Expectancy Your scooter has been designed to provide the user with a long, reliable life provided it is correctly maintained and regularly serviced by an authorised dealer. However, due to inevitable wear and tear and technological improvements it is recommended that the average usable life of this scooter is five years.
Continued….. Check List If you scooter fails to operate, please check the following: The unit is switched on. All plugs and connectors are firmly fixed. Battery level shows full charge. Freewheeling device is in the drive position (lever down). ...
Page 16
Continued….. General Use Take heed of the information given in this manual regarding safety and the maintenance of your scooter. If adhered to, your scooter should give you years of reliable mobility. Your scooter is intended for general year round use. However, DO NOT use the scooter in electrical storms, high winds (if fitted with a canopy) or downpours.
Page 17
Continued….. Sleep Mode Your scooter has a digital battery status indicator, which displays the current charge status of the batteries in your scooter. The circuitry also detects changes in power draw from the batteries. If you scooter is left switched on without use for about five minutes the electronics will go into ‘sleep’...
