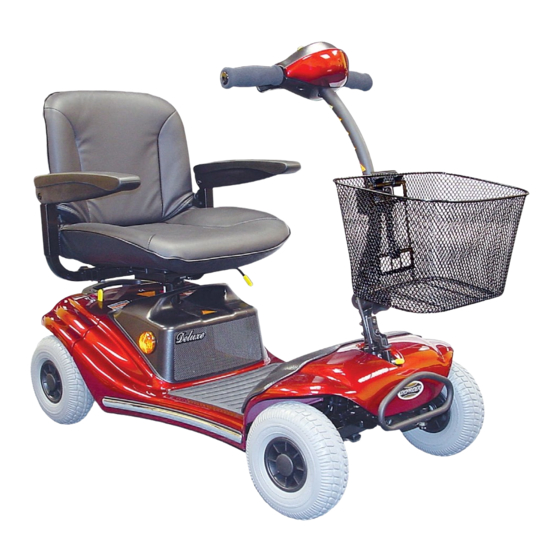

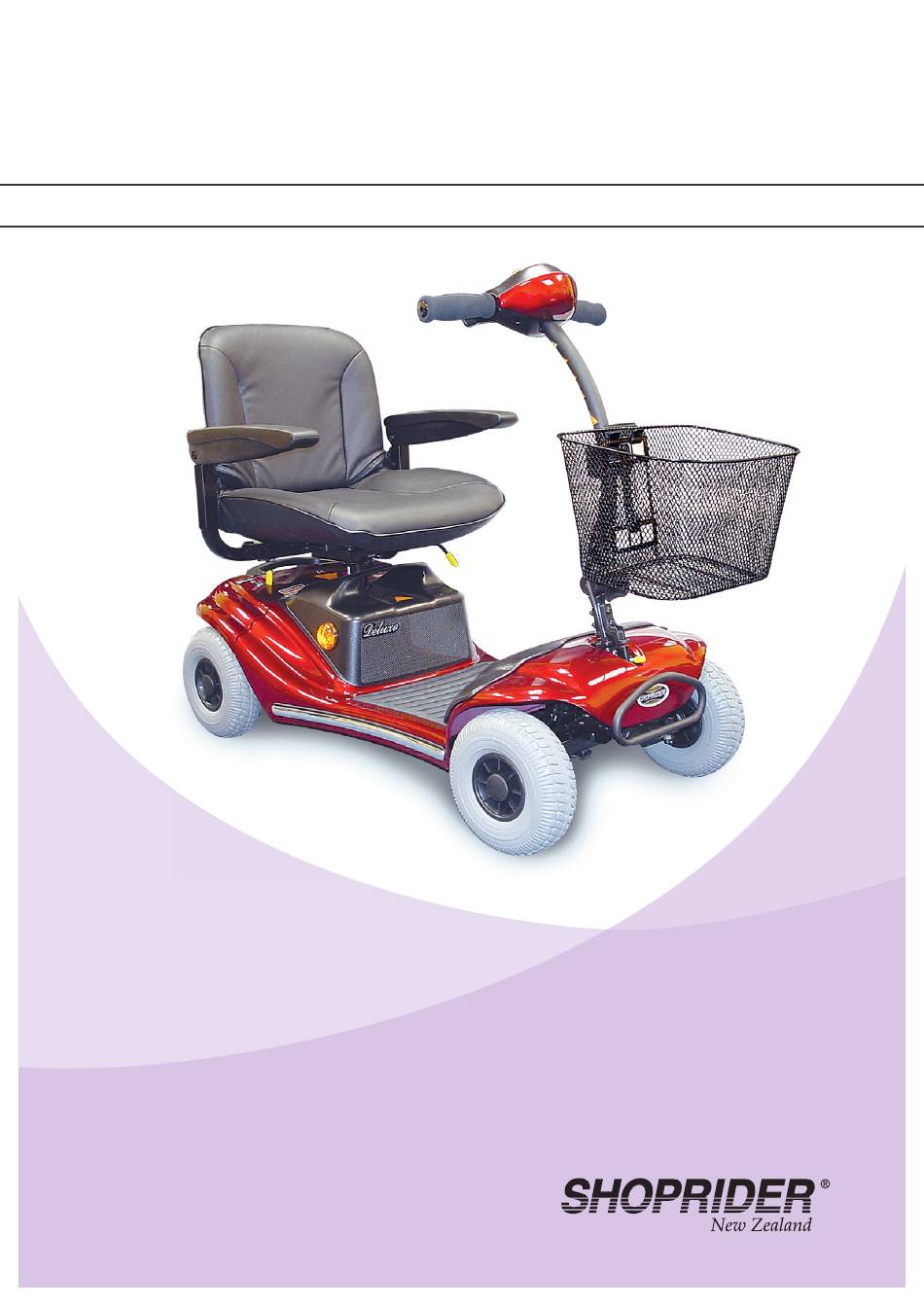

- Page 1 SHOPRIDER NEW ZEALAND MOBILITY SCOOTER USER’S GUIDE TE-GK9 Compact Shoprider Mobility Scooter...
-
Page 2: Table Of Contents
Electromagnetic Brake......... 5 14 Technical Specifications......11 6 Drive/Freewheel Operation...... 5 Anti-tip Wheels........... 6 7 Starting to Drive your Scooter....6 First Time Use..........6 Getting Started..........6 Starting Scooter Movement......6 Steering............6 Reversing............ 6 Dismounting..........6 Shoprider Scooters User Guide... -
Page 3: Introduction
TE-GK9 is the ultimate combination of style, comfort and portability. The TE-GK9 includes several innovative and convenient features. The TE-GK9 goes with you wherever you go and can be assembled or disassembled in just seconds with wireless quick-connect components. The TE-GK9 is light and compact, and can be stored in small areas such as the trunk or back seat of your car. -
Page 4: Safety Precautions
Do not use the scooter in the rain, in the shower, or in any wet environment - direct exposure to wet can cause rust and failure of the electronics Shoprider/Shoprider NZ Ltd are not responsible for any damage or injury caused due to improper or unsafe use of their scooters. -
Page 5: Adjustments
Replace battery pack and seat. Serial Number (Fig 5) Serial number is located on the seat post. It is on a white sticker with a barcode. The serial number is 13 alpha numerical digits beginning with the number 1. Shoprider Scooters User Guide... -
Page 6: Armrest Width Adjustment
The arm rest angle may be adjusted by turning the adjustment screw either clockwise or counterclockwise depending on the desired angle. SCOOTER TILLER CONTROLS (FIG 7) Battery level Key switch Horn Speed control dial Thumb lever controls Fig. 7 Shoprider Scooters User Guide... -
Page 7: Speed Controls
The brake is automatically operated when the thumb control levers are pressed or released. There is a slight delay when the scooter accelerates and decelerates; this allows the scooter to TE-GK9 smoothly and come to a smooth stop. DRIVE/FREEWHEEL OPERATION (FIG 8) -
Page 8: Anti-Tip Wheels
STARTING TO DRIVE YOUR SCOOTER First Time Use Prior to using your TE-GK9 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. Failure to do so may cause permanent damage. -
Page 9: Extra Guidelines In The Control Of Your Scooter
In both these instances the battery should be put on charge over night. **Keeping the batteries charged at all times will extend the life of the batteries** Battery Charger The battery charger is a 3-amp transformer type off board. The TE-GK9 Portable scooter has Shoprider Scooters User Guide... -
Page 10: First Time Use
First Time Use Prior to using your TE-GK9 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. -
Page 11: Maintenance
• Most lubricated components on the TE-GK9 Portable scooter are designed to be maintenance free and are sealed. Therefore lubrication is not required for these components. However, the driving axles and seat post should always have a very light coat of multipurpose grease. -
Page 12: Warranty Information
Misuse of the scooter, operation not in accordance with the owners manual, exceeding the load capacity or performance specification and modifications to the scooter by anyone without approval by Shoprider NZ will void the warranty. Warranty only applies to the original purchaser. Copy the following information from your dealer for future reference: Model No. -
Page 13: Technical Specifications
14. TECHNICAL SPECIFICATIONS UNIT SPECIFICATIONS TE-GK9 Overall Dimensions: L x W x H inches 41.3” x 22” x 35” Front 2 , 9” Number, Size of Tires Rear 2 , 9” Suggested User Weight (on the Level Road) MAX 300... - Page 14 108 Sawyers Arms Rd, Papanui, Christchurch, New Zealand Freephone: 0800-220-110 Fax: +64-3-354-4356 Email: freedom@shoprider.co.nz • • Your Shoprider Dealer...
