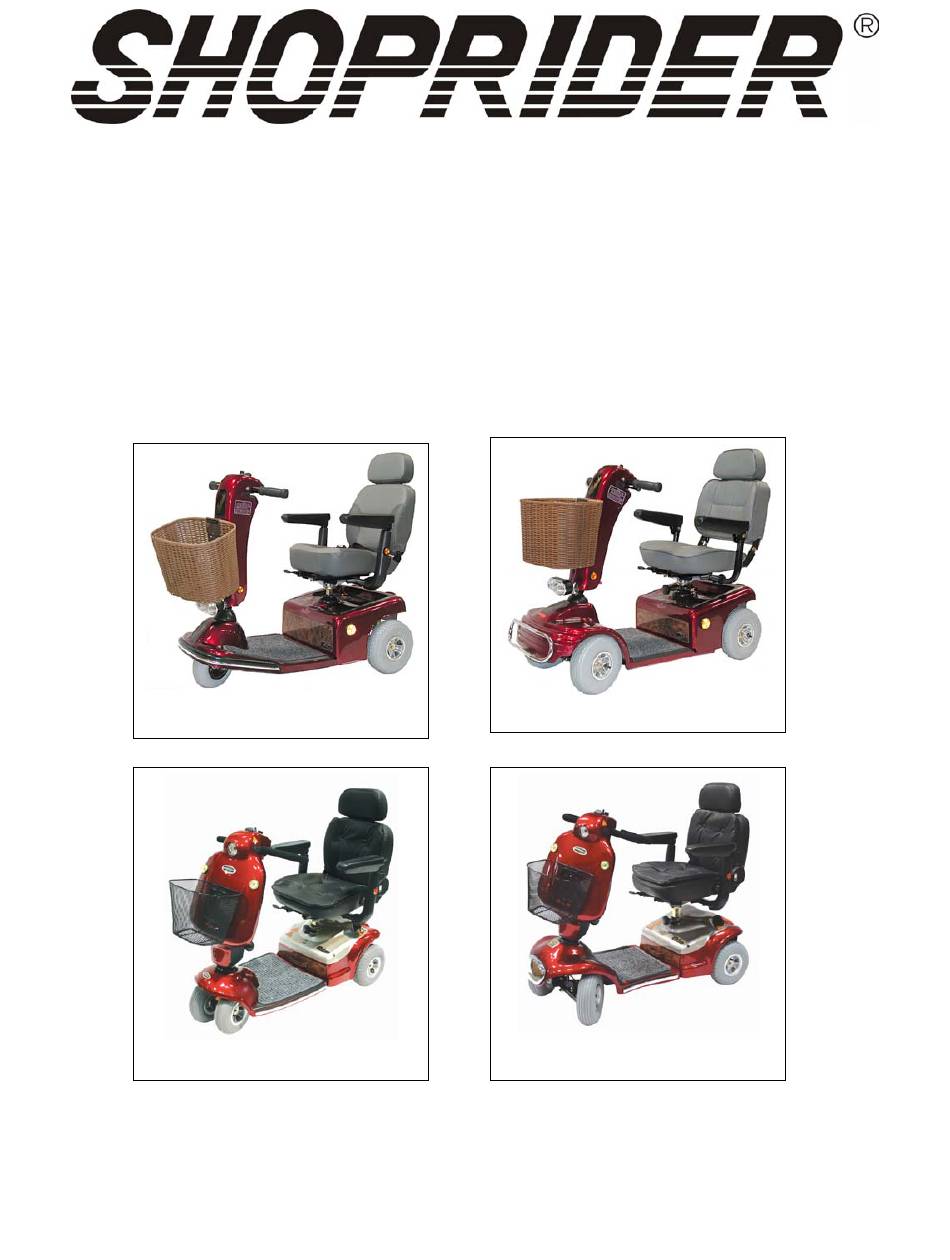

- Page 1 Mid-Size Scooters TE-778NR TE-888NR TE-888L TE-778L User Manual...
-
Page 2: Table Of Contents
Contents INTRODUCTION......................... 3 FEATURE GUIDE (FIG. 1-4) ..................... 3 SAFETY ADVICE ........................5 EMI Warning ..........................6 ADJUSTMENTS........................... 7 Tiller Angle Adjustment (Fig. 5A&B)......................7 Seat Slide & Swivel Adjustment (Fig. 6)....................7 Seat Removal (Fig. 7)............................7 Seat Height Adjustment (Fig. 7)........................7 Armrest Width Adjustments (Fig. -
Page 3: Introduction

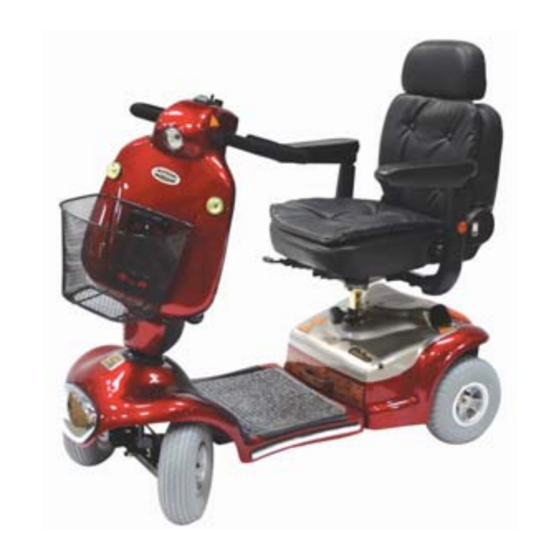

Shoprider® scooter. This scooter can be used in confined spaces both indoors and out. Direct drive transaxles and electromagnetic brakes give a safe and efficient ride. This Shoprider® scooter is designed for persons with limited mobility. - Page 4 TE-778L (Figure 3) 1. Tiller control head 2. Head light 3. Rear lights & indicators 4. Turn signal indicators 5. Adjustable width armrests 6. Swivel seat 7. Seat height adjustment 8. Black leatherette pillow top reclining captain’s seat 9. Foot rest 10.
-
Page 5: Safety Advice
• Make sure the tiller is properly adjusted to the user or damage and injury could result. device, the scooter and personal injury. • Shoprider® Healthcare doesn’t recommend that scooter users be transported in a vehicle • Make sure the tiller is properly adjusted to the user or damage and injury could result. -
Page 6: Emi Warning
EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Shoprider® dealer, and note whether there are sources of EMI nearby. WARNING: PMMC is not responsible for damage or injury incurred due to improper and unsafe use of our scooter. -
Page 7: Adjustments
ADJUSTMENTS Tiller Angle Adjustment (Fig. 5A&B) On the left hand side at the base of the tiller Tiller Angle is a red lever/black knob. Push/pull the Adjustment Knob lever to release the pin and select the required tiller angle. Refit the pin into one of the five location holes. -
Page 8: Armrest Angle Adjustment (Fig. 9)
Armrest Angle Adjustment (Fig. 9) Flip up the armrests to allow access to the adjustment screw and lock nut, unscrew the lock nut and screw the bolt in or out to increase or decrease the angle. Re-tighten the lock-nut. Your scooter is dispatched from the factory with the armrests set parallel to the floor. -
Page 9: Scooter Tiller Controls (Fig. 11A&B)
SCOOTER TILLER CONTROLS (FIG. 11A&B) Speed Controls The speed control allows you to set a speed between 1 (minimum) and 10 (maximum). Battery Level Indicator The number of LED bars lit, shows the amount of charge left in your batteries. The amount of charge will only show at its true level when the scooter is in drive. -
Page 10: Electromagnetic Brake
Electromagnetic Brake The brake is automatically operated when the control levers are released. There is a slight delay when the scooter decelerates; this allows the scooter to come to a smooth stop. FREE WHEEL OPERATION (FIG. 12) The free wheel release lever (red handle) is located inside the right rear wheel (Fig. 12). To disengage the motor, lift up the lever (the scooter can now be pushed). -
Page 11: Steering
• Pull your right hand finger lever, the scooter will move forward slowly. The harder you pull the faster the scooter goes but will only reach the speed level that has been selected. • Release the lever and the scooter will slowly come to a stop and the magnetic brake will be applied. -
Page 12: Transport / Storage
TRANSPORT / STORAGE The scooters are designed to be dismantled into separate sections for transportation and storage. Your scooter can be dismantled into the following sections: TE-778NR (Fig. 13) 1) Basket 2) Deluxe Captain Seat 3) Seat Post & Fasteners... -
Page 13: Batteries And Battery Charger
To charge the batteries connect the plug lead into the battery-charging socket on the scooter/battery pack and the 3-prong plug into the wall socket and switch on. FOR TE-778NR, TE-888NR, TE-778L and TE-888L equipped with an off board charger: the battery charger has two lights. -
Page 14: Wheels And Tires
Wheels and Tires The wheels of your scooter all have split rims. This allows any punctures to be repaired easily. To change the wheels remove the center bolt and slide the wheel off its axle. Ensure that when refitting the wheel the retaining bolt is fitted with a locking washer or the screw threads are treated with lock-tite or a similar adhesive. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS UNIT SPECIFICATIONS TE-778NR TE-888NR TE-778L TE-888L Overall Dimensions: L x W x 45 (1143) x 24 (610) 49 (1245) x 22 () x 48 (1230) x 24 (620) 49 (1250) x 24 (620) in (mm) x 38 (965) -
Page 16: Quarterly Inspection
QUARTERLY INSPECTION For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized dealer. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met. - Page 17 Notes 3/30/2004...
- Page 18 Notes 3/30/2004...
- Page 19 Notes 3/30/2004...
-
Page 20: Disclaimer
It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products.
