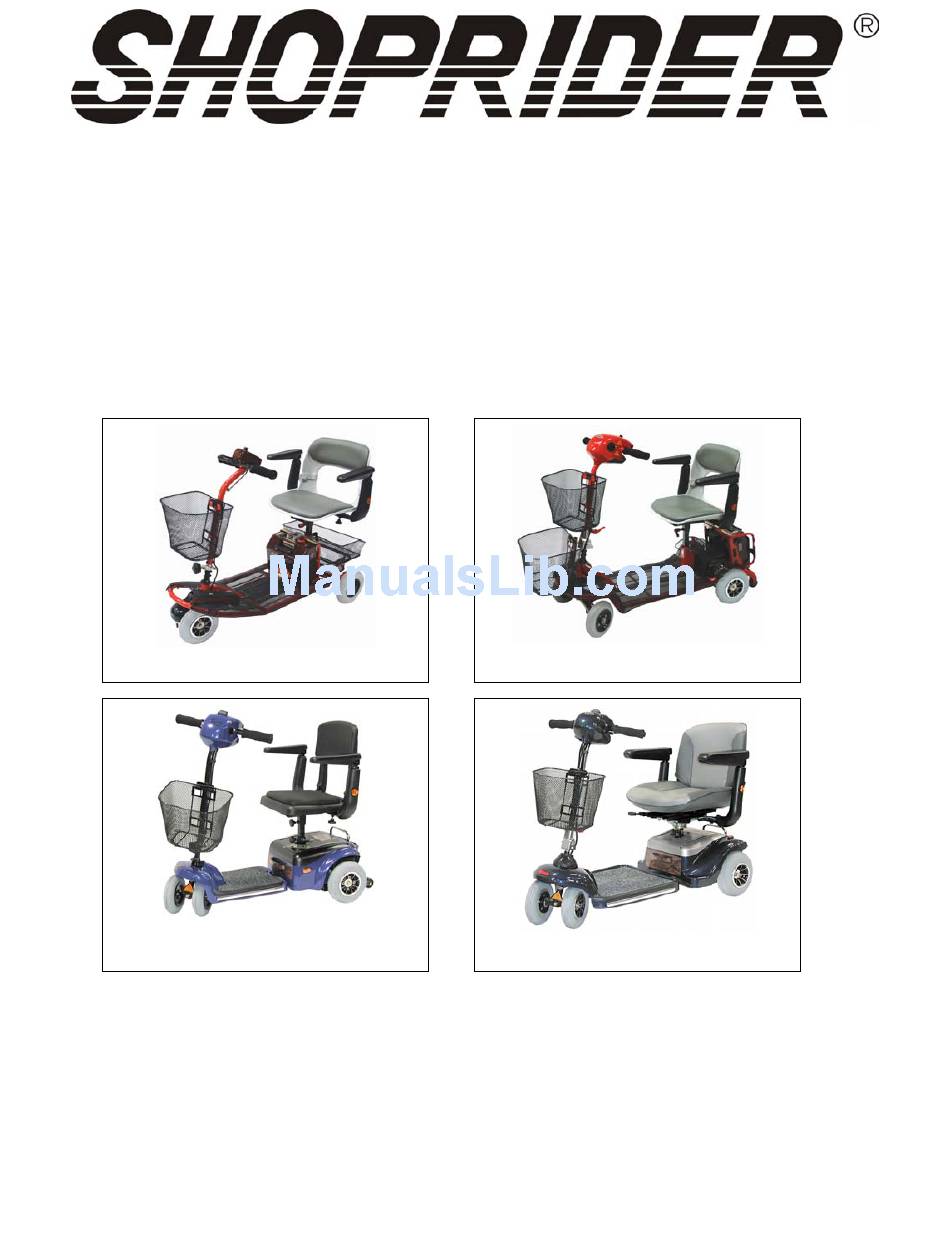

- Page 1 Compact Scooters XtraLite 4 XtraLite 3 (TE-787NA-UL4) (TE-787NA-UL3) Scootie (TE-787NA) Sunrunner S (777-3/4) User Manual...
-
Page 2: Table Of Contents
INTRODUCTION... 3 FEATURE GUIDE (FIG. 1-4) ... 3 SAFETY ADVICE ... 5 EMI Warning ... 6 ADJUSTMENTS... 7 Tiller Angle Adjustment (Fig. 5) ...7 Folding the Tiller (Fig. 6) ...7 Seat Slide & Swivel Adjustment (Fig. 7)...7 Seat Removal (Fig. 8)...7 Seat Height Adjustment (Fig. -
Page 3: Introduction
Shoprider® scooter. This scooter can be used in confined spaces both indoors and out. Direct drive transaxles and electromagnetic brakes give a safe and efficient ride. This Shoprider® scooter is designed for persons with limited mobility. - Page 4 Scootie (Figure 3) 1. Tiller control head 2. Detachable seat with fold down back 3. Detachable basket 4. Detachable cover with integral battery pack 5. Tiller release knob 6. Carrying stay rod 7. Seat height adjustment 8. Anti-Tip wheels 9. Puncture proof tires Sunrunner S (Figure 4) 1.
-
Page 5: Safety Advice
• Do not use parts or accessories that are not authorized by Shoprider® Mobility Products, Inc. • Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure the POWER is off and the scooter can not move under its own power. -
Page 6: Emi Warning
EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Shoprider® dealer, and note whether there are sources of EMI nearby. WARNING: Shoprider® Mobility Products, Inc. is not responsible for damage or injury incurred due to improper and unsafe use of our scooter. -
Page 7: Adjustments
Refit the pin into one of the five location holes. Folding the Tiller (For XtraLite 3 & Scootie ONLY) (Fig. 6) Fold down the tiller by loosening the hand knob located at the base of the tiller stem. Seat Slide & Swivel Adjustment (For Sunrunner S ONLY) (Fig. -
Page 8: Armrest Width Adjustments (Fig. 9)
Re-tighten the lock-nut. Your scooter is dispatched from the factory with the armrests set parallel to the floor. Scooter Length Adjustment (For Scootie & Sunrunner S ) (Fig. 11) The wheel base can be lengthened or shortened depending on its existing settings. -
Page 9: Scooter Tiller Controls (Fig. 13)
Speed Controls The speed control allows you to set a speed between 1 (minimum) and 10 (maximum). Battery Level Indicator/Gauge The number of LED bars lit/where the needle sits, shows the amount of charge left in your batteries. The amount of charge will only show at its true level when the scooter is in drive. Caution –... -
Page 10: Free Wheel Operation (Fig. 14)
The anti-tip wheels are located at the rear of the scooter frame (Fig. 14). The scooter should not be used unless the anti-tipping wheels are in place. Shoprider® Mobility Products, Inc. is not responsible for damage or injury incurred due to Anti-Tip Wheels... -
Page 11: Steering
Steering Steering the scooter is light and easy. Ensure when starting off you give a wide clearance when turning so that the rear wheels clear any obstacle that you are passing. When steering through limited spaces such as a doorway or when turning around, turn the tiller handles where you want to go and apply power gently. -
Page 12: Transport / Storage
1) Small Front Basket 2) Large Front Basket 3) Seat 4) Seat Post & Fasteners 5) Battery Pack 6) Fold Down Frame Scootie (Fig. 17) 1) Basket 2) Seat 3) Seat Post & Fasteners 4) Rear Chassis 5) Front Chassis 6) Rear Shroud Sunrunner S (Fig. -
Page 13: Dismantling
To charge the batteries connect the plug lead into the battery-charging socket on the scooter/battery pack and the 2 or 3-prong plug into the wall socket and switch on. FOR Scootie and Sunrunner S ONLY: the battery charger has two lights. The red light when constant shows the battery charger is connected if the red light flashes;... -
Page 14: Maintenance
Should there be a situation where your scooter stops for no apparent reason, please check that the circuit breaker has not popped. ON THE SCOOTIE AND SUNRUNNER S the circuit breaker can be found under the rear chassis cover accessible through a port hole under the seat and can be reset by pressing the black button. -
Page 15: Technical Specifications
3.75 (6) 10 (6)/17 (10) 11 (18) mile (km) 39 (1000) Type XtraLite 4 Scootie 37-40 (930- 41 (1040) x 20 (510) 1015) x 17 (430) x 35 (890) x 34 (865) 2 , 7” 2 , 7” 2 , 8”... -
Page 16: Quarterly Inspection
For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized dealer. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met. -
Page 17: Warranty
It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products. - Page 18 Notes 9/22/2004...
