  • Page 1 MAX 4 VoIP Gateway. Quick Start Guide Version 0.90 Page 1...

  • Page 2: Table Of Contents

    Connecting the Net2Phone MAX 4 to your LAN ................3 Connecting the MAX 4 to a LAN using DHCP ................3 Querying the MAX 4’s DHCP IP address from a telephone keypad.............3 Connecting the MAX 4 to a LAN with static addresses..............3 Disabling DHCP in the MAX 4....................

  • Page 3: Welcome

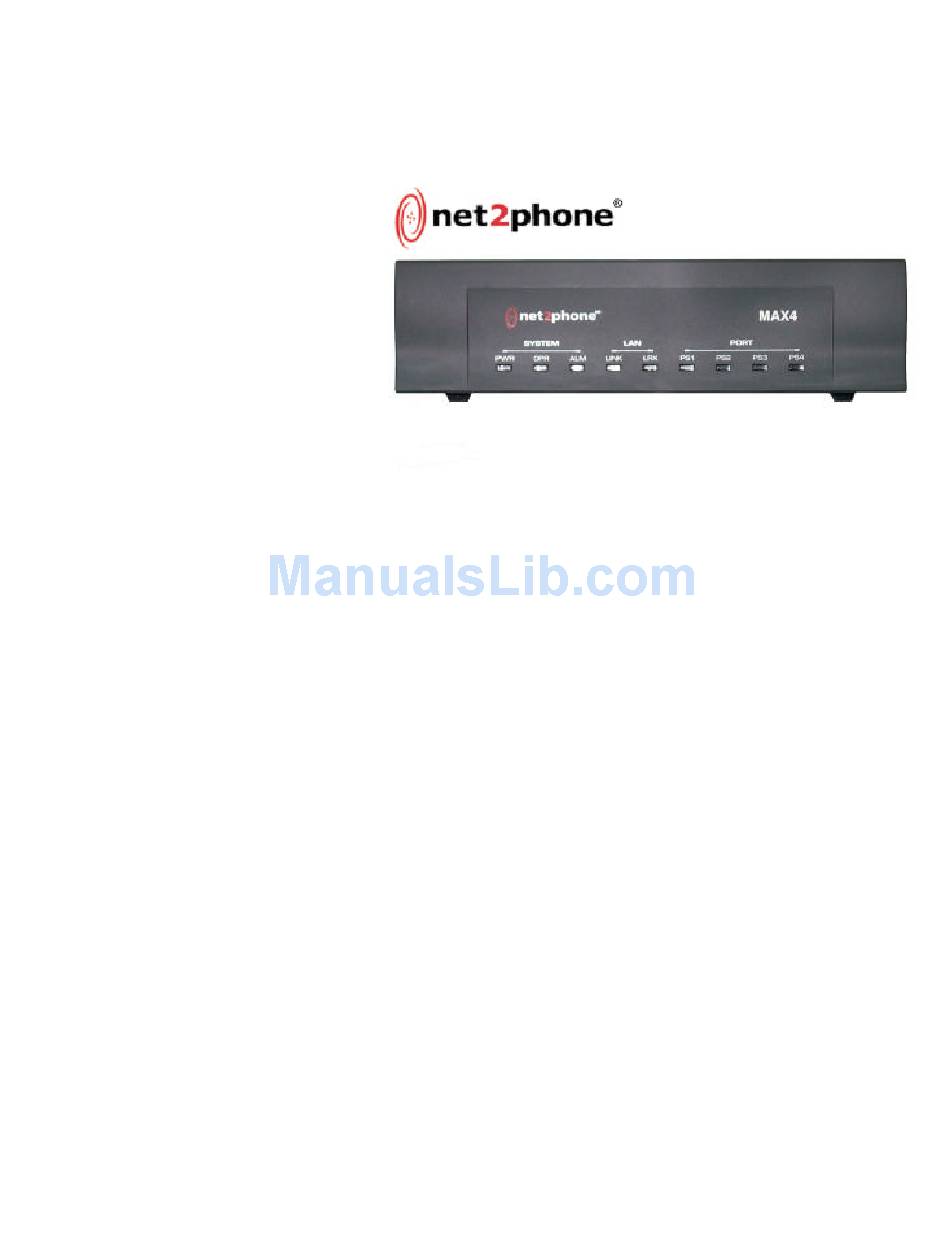

    Congratulations on your purchase of the Net2Phone MAX 4! The Net2Phone MAX 4 is a desktop device that connects directly into the existing LAN through an RJ-45 port. It supports up to four analog telephones, each connected to the unit through an individual FXS port, and is intended for use by mid- to large-sized groups.

  • Page 4: Net2Phone Max 4 Setup

    Plug the RJ-45 jack into the LAN port. Plug the Net2Phone MAX 4 into your power outlet and turn the unit on. The basic MAX 4 hardware setup is now complete. If your installation includes a PBX, connect it as illustrated in Figure 1.

  • Page 5: Connecting The Net2Phone Max 4 To Your Lan

    Querying the MAX 4’s DHCP IP address from a telephone keypad When the Net2Phone MAX 4 is connected to a DHCP network, the current IP address can be queried from a telephone keypad. To use this procedure, you will need a standard analog corded or cordless touch-tone telephone.

  • Page 6: Disabling Dhcp In The Max 4

    MAX Web Manager. Proceed to ”Logging into the MAX Web Manager,” below. Logging in to the MAX Web Manager Now that you know the Net2Phone MAX 4’s IP address, you are ready to log in to the MAX Web Manager through a Web browser as follows: 1.
  • Page 7 The MAX Web Manager door page appears. Figure 2 2. When the door page is displayed, click in the Enter - Open the door area. The Network Password page appears. Figure 3 Page 5...
  • Page 8 3. Enter the user name and password. The default user name is root and the default password is n2p. You are now logged in. The MAX Web Manager Site Map page is displayed. Figure 4 Page 6...

  • Page 9: Completing The Max 4'S Configuration

    For the purposes of this Quick Start Guide, only a few more parameters need to be configured before you can start making calls with the MAX 4. Additional information about configuration can be found in the Net2Phone MAX 4 User Guide.

  • Page 10: Configure Account

    ? ? The default values in the Voice Configuration table should normally be left unchanged. For additional configuration information, refer to the Net2Phone MAX 4 User Guide. Configure Account Click the Account Config link to access the Account Information page, illustrated below.

  • Page 11: Placing A Call

    Placing a call to a destination outside North America Pick up a phone attached to the Net2Phone MAX 4 and dial 011 + the country code + the city code + the number to be dialed, followed by pound (e.g., 011981223456#).

  • Page 12: Troubleshooting Tips

    Troubleshooting Tips Check for proper IP Configuration. (See Connecting the Net2Phone MAX 4 to your LAN, Page 3.) Check for proper Accoun t Set Up. (See Single Account Management, Page 9.) Refer to Appendix A, Troubleshooting in your Net2Phone MAX 4 User’s Guide.
