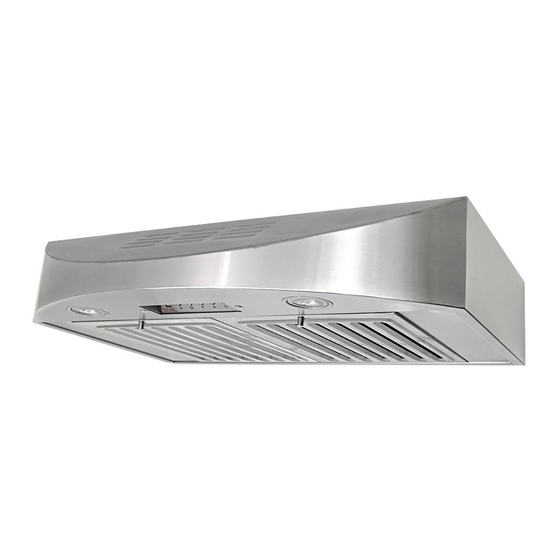

KOBE Brand Range Hood
Model No.
CH3830SQB-1 (30") / CH3836SQB-1 (36")
CH3830SQBD-1 (30") / CH3836SQBD-1 (36")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
www.goedekers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH3830SQB-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE CH3830SQB-1

Summary of Contents for KOBE CH3830SQB-1

  • Page 1 KOBE Brand Range Hood Model No. CH3830SQB-1 (30”) / CH3836SQB-1 (36”) CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL www.goedekers.com...
  • Page 2 1. Carefully check all contents of packages;  2. Thoroughly inspect the unit for any cosmetic damages or  defects;  3. Test the unit before installation;  4. Have a certified contractor/electrician do the installation. IF THERE IS ANY PROBLEM: 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL  PACKAGING MATERIAL.  2. Have your original invoice as proof of purchase and  product serial number ready.  3. Call 1‐877‐BUY‐KOBE (289‐5623); or e‐mail to  info@koberangehoods.com to report the problem.   NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED  2. KNOCK‐OUT HOLES HAVE BEEN PUNCTURED  3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR  PARTS www.goedekers.com...

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1  COMPONENTS OF PACKAGE ....................3  INSTALLATION ..........................5  OPERATING INSTRUCTIONS ....................16  MAINTENANCE .......................... 21  SPECIFICATIONS ........................22  MEASUREMENTS & DIAGRAMS ....................24  PARTS LIST ..........................27  CIRCUIT DIAGRAM ........................

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    {H} Stainless Steel Spacer x 2 (30” hood) 3/16” x 3/8” (6 PCS) 4 x 6mm (4 PCS) 2 PCS * Pre-installed * Pre-installed FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. www.goedekers.com...
  • Page 7 {E} Stainless Steel Spacer x 2 (30” hood) {F} Charcoal Filter set x 2 3/16” x 3/8” (6 PCS) * Pre-installed * Pre-installed 4 x 6mm (4 PCS) 2 PCS FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. www.goedekers.com...

  • Page 8: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top...

  • Page 9: Safety Warning

    NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) UNDER THE CABINET WALL MOUNT For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”)

  • Page 10: Under The Cabinet

    UNDER CABINET INSTALLATION For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
  • Page 11 4. For Rear 3-1/4” x 10” vent installation only: Figure 5 Remove attached 6” exhaust and discard. (Figure 3) Keep 13 screws to install vent covers. Remove duct knockout from back of the hood and discard. (Figure 5) Unscrew 3-1/4” x 10” Vent Cover from rear exhaust (located inside hood);...
  • Page 12 Figure 7 Wiring to Power Supply CAUTION If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.

  • Page 13: Wall Mount

    WALL MOUNT INSTALLATION ***This installation requires purchase of duct cover Model No. CH1120DC-1. For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) Figure 8 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING.
  • Page 14 Figure 12 Align Top Vent Cover {E} and 3-1/4” x 10” Exhaust {D}. (Figure 11) Skip to Step 5 to attach Hood Mounting Bracket {K} and two Duct Cover Support {L} using 14 screws (13 screws taken from 6” exhaust. (Figure 14) 4.
  • Page 15 Figure 16 Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING RANGE. RISK ELECTRICAL SHOCK.
  • Page 16 Figure 18 Install Accessories (For Baffle Filter models) 15. Place baffle filters & spacers underneath the hood. (Figure 18) Final Installation 16. Turn power ON in control panel. Check all lights and fan operation. 17. Make sure to leave this manual for the homeowner.

  • Page 17: Under The Cabinet

    UNDER CABINET INSTALLATION For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) Figure 19 Preparation before Installation Temporarily wire the hood to test for proper operation before installing. If the hood does operate, check circuit breaker or house fuse. If the hood is still working, disconnect power...
  • Page 18 Figure 20 Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.

  • Page 19: Wall Mount

    WALL MOUNT INSTALLATION ***This installation requires purchase of duct cover Model No. CH1120DC-1. For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) Figure 21 Preparation before Installation Temporarily wire the hood to test for proper operation before installing. If the hood does not operate, check the circuit breaker or house fuse.
  • Page 20 Figure 24 Wiring to Power Supply CAUTION : If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING RANGE. RISK ELECTRICAL SHOCK.

  • Page 21: Operating Instructions

    OPERATING INSTRUCTIONS For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function •...
  • Page 22 For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3.
  • Page 23 appear in the LED Display. The icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold control button until icon no longer appears in the LED Display. NOTE: Pressing button while ECO Mode is active will activate the regular fan function and the speed will be displayed in LED Display.

  • Page 24: Maintenance

    MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 25: Specifications

    CONTROLS 3-Speed Mechanical Push Control LIGHTS 3-watt LED light x 2 HOOD DIMENSION (CH3830SQB-1) 29-3/4" x 21-11/16" x 5-7/8" (W x D x H) (CH3836SQB-1) 35-3/4" x 21-11/16" x 5-7/8" OPTIONAL ACCESSORIES 1) Two-Piece Adjustable Duct Cover (W x D x H) (CH1120DC-1) 11-13/16"...
  • Page 26 For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) MODEL / SIZE CH3830SQBD-1 (30”) ; CH3836SQBD-1 (36”) COLOR 18-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 232W / 2.21A NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Twin Vertical Turbine Impeller EXHAUST Ductless...

  • Page 27: Measurements & Diagrams

    ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36" = Knockout Holes "B"...
  • Page 28 For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36" = Knockout Holes "B" - FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) - www.goedekers.com...
  • Page 29 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracke ***Duct Cover Support www.goedekers.com...

  • Page 30: Parts List

    PARTS LIST For Vented Models only. MODEL NO.: CH3830SQB-1 (30”) CH3836SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001-A 6” Exhaust Vent Cover (Top) L1-0241-0001-B L1-0241-0002-A 3-1/4” x 10” Exhaust L1-0241-0002-B 3-1/4” x 10” Vent Cover L1-0505-0002 6” Round Plastic Collar...
  • Page 31 For Vented Models only. MODEL NO.: CH3830SQB-1 (30”) CH3836SQB-1 (36”) www.goedekers.com...
  • Page 32 For Ductless Models only. MODEL NO.: CH3830SQBD-1 (30”) CH3836SQBD-1 (36”) DESCRIPTION MODEL /SIZE PART NO. LED Light (3W) L1-0403-0301 Control Unit L1-0501-6001 Capacitor (1.5uf +2.0uF/ 350V) L1-0401-0120-6 Motor (102B) L1-0301-0120-102B Motor (102A) L1-0301-0120-102A Turbine Impeller (737B) L1-0251-0737-B Turbine Impeller (737A) L1-0251-0737-A Processor Board L1-0404-6001...
  • Page 33 For Ductless Models only. MODEL NO.: CH3830SQBD-1 (30”) CH3836SQBD-1 (36”) www.goedekers.com...

  • Page 34: Circuit Diagram

    CIRCUIT DIAGRAM For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) www.goedekers.com...

  • Page 35: Trouble Shooting

    TROUBLE SHOOTING For Vented Models only: MODEL NO.: CH3830SQB-1 (30”) / CH3836SQB-1 (36”) Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply.
  • Page 36 For Ductless Models only: MODEL NO.: CH3830SQBD-1 (30”) / CH3836SQBD-1 (36”) Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply.

  • Page 37: Warranty

    TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects.
  • Page 38 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...

  • Page 39: Product Registration

    1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com To report a problem, please contact: Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com...
  • Page 40 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
