Summary of Contents for KOBE CHX3630SB-1

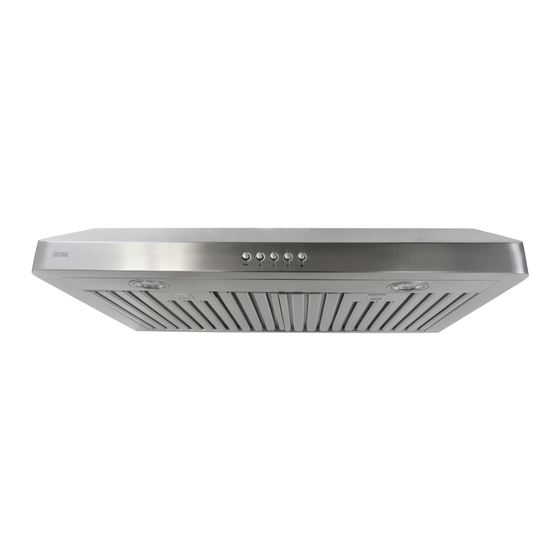

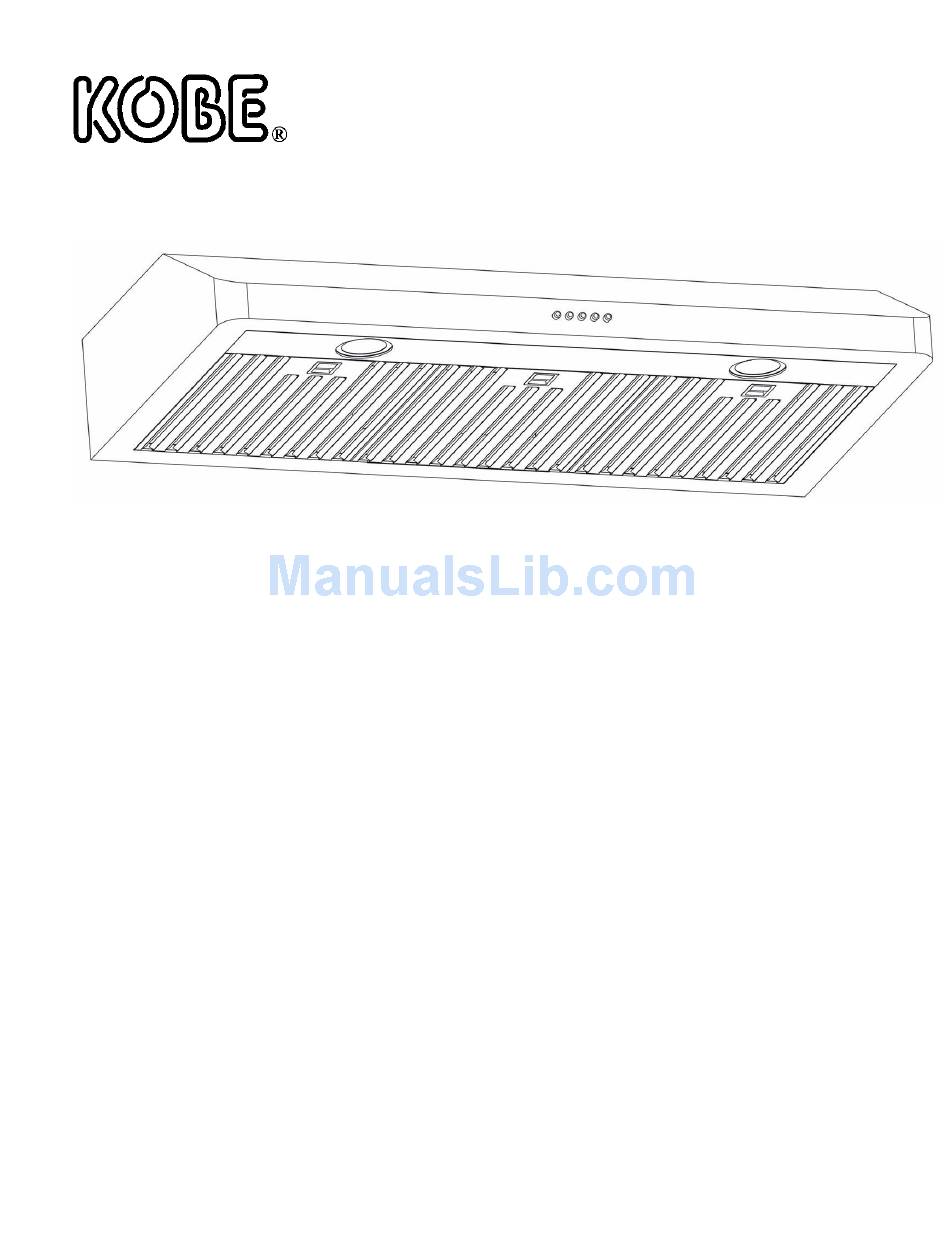

- Page 1 KOBE Range Hoods CHX36 SB-1 Series Model No. Under Cabinet: CHX3630SB-1 (30”) CHX3636SB-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com. NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED 2.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATING INSTRUCTIONS....................6 MAINTENANCE ......................... 7 SPECIFICATIONS ........................8 MEASUREMENTS & DIAGRAMS ....................9 TROUBLE SHOOTING ......................10 WARRANTY ..........................11 WARRANTY INFORMATION FORM ..................13 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{D} 3-1/4” x 10” Rectangular Exhaust/ Vent Adapter {E} 6” Round Vent Adapter (for vertical venting) {F} Baffle Filters x 2 (30” hood) x 3 (36” hood) {G} Screws FOR MORE INFORMATION, PLEASE VISIT OUR W EBS ITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
1. Read any provided document(s). 2. Test the range hood by temporarily connecting to an outlet and turning ON the fan/lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has 3 exhaust options: top 6” round, top 3-1/4” x 10” rectangular, and rear 3- 1/4”... - Page 8 6. It is recommended to use metal/aluminum duct/pipe with a uniform size (ex. 6” round pipe from range hood to the outside). 7. If an elbow is necessary, a minimum of 12” straight run is necessary before the elbow. Clearance 8.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Control Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Button Control = Turns the range hood OFF. = Lowest fan speed (Quiet). = Middle fan speed (Low). -
Page 10: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 11: Specifications
SPECIFICATIONS MODEL / SIZE Under Cabinet Application CHX3630SB-1 (30”) CHX3636SB-1 (36”) MATERIAL 20-Gauge Commercial Grade Stainless Steel 326W / 3A (30” , 36”) CONSUMPTION / AMPERE NUMBER OF BLOWER DESIGN Seamless / Satin Finish BLOWER TYPE Twin Vertical Turbine Impeller... -
Page 12: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. CHX3630SB-1 (30”) MODEL NO.: CHX3636SB-1 (36”) 30” (Includes 2 baffle filters) 36” (Includes 3 baffle filters) -
Page 13: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution Make sure the circuit breaker and the unit’s After The power is not on. Installation, power is ON. Use a voltage meter to check both motors the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 14: Warranty
ONE YEAR LIMITED WARRANTY FOR LABOR AND TWO YEARS LIMTED WARRANTY FOR PARTS: For one year from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 15 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST FOR WARRANTY PARTS OR SERVICE IN US, PLEASE CONTACT KOBE SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 16: Warranty Information Form
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase in US, contact: KOBE Service Center Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com For warranty service or spare parts purchase in Canada, contact: Tel: 1-626-775-8880 Email: customer.service@koberangehoods.com... - Page 17 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
