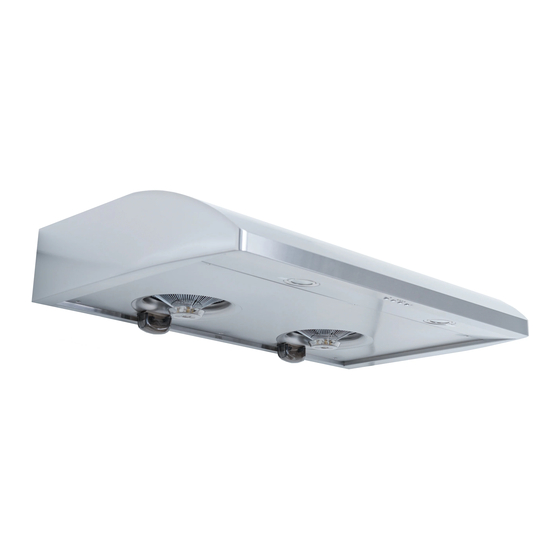

KOBE CH2230SQ Installation Instructions And Operation Manual
Ch-122 series – 6” height
Hide thumbs
Also See for CH2230SQ:
- Installation instructions and operation manual (31 pages) ,
- Installation instructions and operation manual (100 pages) ,
- Installation instructions and operation manual (96 pages)
Subscribe to Our Youtube Channel
Related Manuals for KOBE CH2230SQ
Summary of Contents for KOBE CH2230SQ
- Page 1 KOBE Brand Range Hood Model No. CH2230SQ CH2236SQ CH-122 SERIES – 6” HEIGHT INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions………………………………………………………………. Components of Package…………………………………………………………………… Installation…………………………………………………………………………………… Operating Instructions.…………………………………...………………………………… Maintenance…………………………………………………………………………………. Specifications…………………………………………………….……..…………………… Measurements & Diagrams…………………………………………………………...…… Parts List…………………………………………………………………..…………………. Circuit Diagram………………………………………………………………...……………. Disclaimer……………………………………………………………………………………. Warranty…………………………………………………………………...………………… Product Registration………………………………………………………...……………… - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T B E D O N E B Y A P R O F E S S IO N A L A N D IN A C C O R D A N C E W IT H N AT IO N A L A N D L O C A L E LE C T R IC A L C O D E S . -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE (M u s t k e e p a ll m a te ria l fo r re tu rn s o r re fu n d s ) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Instructions Manual {D} Vent Cover (Top) {E} Oil Containers (Round) -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... - Page 7 S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR.
-
Page 8: Under The Cabinet Installation - Top Vent
UNDER THE CABINET INSTALLATION – TOP VENT Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. - A straight, short venting run will allow the hood to perform more efficiently. - Page 9 Unscrew the six screws on the bottom casing. Remove the bottom casing If necessary, arrange the electrical wires to run through the 1” diameter hole on the top or the rear of the hood. Refer to Figure 5. Using references on Table 1 and measurements on page 21 center the hood in place beneath the cabinet and flush with the front of the cabinet.
-
Page 10: Under The Cabinet Installation - Rear Vent
UNDER THE CABINET INSTALLATION – REAR VENT Preparation before installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Decide the location of the venting pipe from the hood to the outside. Refer to Figure 6. - A straight, short venting run will allow the hood to perform more efficiently. - Page 11 Puncture the knockout holes on the hood as shown in Figure 10. Unscrew and remove the multi duct exhaust. Replace with {D} vent cover (top) on page 3. Refer to Figure 11. Unscrew the six screws on the bottom casing. Remove the bottom casing. If necessary, arrange the electrical wires to run through the 1”...
-
Page 12: Stand Alone Installation - Top Vent
STAND ALONE INSTALLATION – TOP VENT ***This installation only applied with the purchase of a duct cover (Model No. CH1120DC). Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Decide the location of the venting pipe from the hood to the outside. Refer to Figure 13. - A straight, short venting run will allow the hood to perform more efficiently. - Page 13 - If necessary, attach two rubber stands (provided) with two (4x8 mm) screws (provided) to the back of the hood. - Attach the hood-mounting bracket to the back of the hood with nine (3/16” x 3/8”) screws (provided) as shown in Figure 16. Hood Installation CAUTION: If required to move the cooking range to install the hood, turn off the power on an electric range at the main electrical box.
- Page 14 Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure the inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 20. Fasten outer duct cover to multi vent exhaust on the hood with four (4x8 mm) screws (provided).
-
Page 15: Stand Alone Installation - Rear Vent
STAND ALONE INSTALLATION – REAR VENT ***This installation only applied with the purchase of a duct cover (Model No. CH1120DC). Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Decide the location of the venting pipe from the hood to the outside. Refer to Figure 21. - A straight, short venting run will allow the hood to perform more efficiently. - Page 16 - If necessary, attach two rubber stands (provided) with two (4x8 mm) screws (provided) to the back of the hood. - Attach the hood-mounting bracket to the back of the hood with nine (3/16” x 3/8”) screws (provided) as shown in Figure 25. Hood Installation CAUTION: If required to move the cooking range to install the hood, turn OFF the power on an electric range at the main electrical box.
- Page 17 Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure the inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 29. Fasten outer duct cover to multi vent exhaust on the hood with four (4x8 mm) screws (provided).
- Page 18 Wiring to Power Supply S A F E T Y W A R N IN G RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-second delay shutoff, two powerful centrifugal turbine impellers with safety screens, two bright 12-volt 20-watt halogen lights, and four oil containers. The four electronic controls are Light Control, Speed Control A (cycles through Low, Medium, High, QuietMode), Speed Control B (cycles through Low, QuietMode, High, Medium) and the Power Control (On/Off). -
Page 20: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. For the optimal level of operation, clean the range hood surface, safety screens, and oil containers regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. - Page 21 To Replace Light Bulb CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL. 1) Make sure all control switches are off, and range hood is unplugged. 2) Use a flat head screwdriver to pop out the protective covering as shown in Figure 33. 3) Gently pull out the defective light bulb and discard.
-
Page 22: Specifications
Electronic Control (4 Buttons) – 10-Second Standby Startup 30-Second Delay Shutoff 12V 20W x 2 (CH2230SQ) 29-3/4” x 22” x 5-7/8” (CH2236SQ) 35-3/4” x 22” x 5-7/8” 1) Two-Piece Adjustable Duct Cover (CH1120DC) 11-3/4” x 10-1/4” x (20-5/8” ~ 39-3/4”) 2) 30”... -
Page 23: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR UNDER THE CABINET - 30” = Knockout Holes “A” 36” = Knockout Holes “A” & “B” - FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -... - Page 24 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket...
-
Page 25: Parts List
PARTS LIST MODEL NO.: CH2230SQ CH2236SQ DESCRIPTION Multi Duct Exhaust Vent Cover (Top) Vent Cover (Rear) Vent Cover Screw (1/8” x 3/8”) Vent Cover Frame Hood Casing Air Chamber Motor (Right) Motor (Left) Turbine Impeller (Right) Turbine Impeller (Left) Oil Tunnel Seal... - Page 26 MODEL NO.: CH2230SQ CH2236SQ...
-
Page 27: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CH2230SQ CH2236SQ... -
Page 28: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed. -
Page 29: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 30: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods, Inc. 4934 Walnut Grove Avenue Suite 202 San Gabriel, CA 91776 U.S.A... -
Page 31: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
