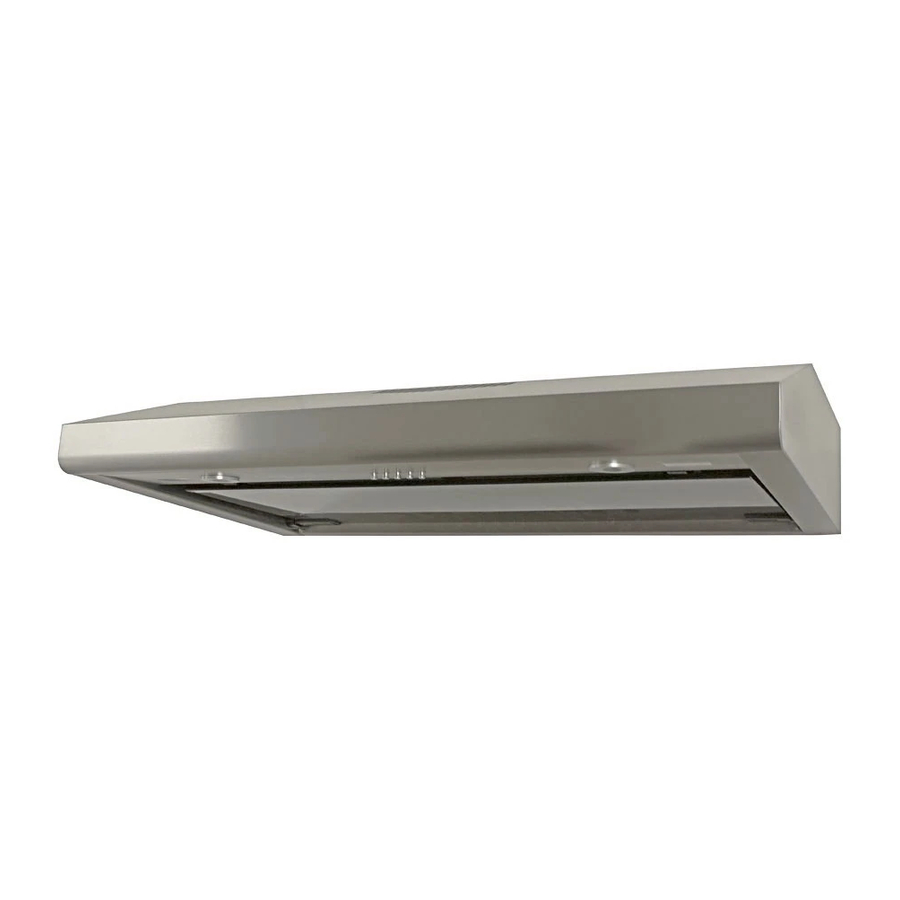

KOBE CHX-30 Series Installation Instructions And Operation Manual
Brillia series 400 cfm with led lights
Hide thumbs
Also See for CHX-30 Series:
- Installation instructions and operation manual (72 pages) ,
- Installation instructions and operation manual (24 pages) ,
- Manual (6 pages)
Related Manuals for KOBE CHX-30 Series
Summary of Contents for KOBE CHX-30 Series
- Page 1 KOBE Range Hoods Brillia Series CHX-30 Series (400 CFM with LED Lights) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL. 2. Have your original proof of purchase and product serial number ready. 3. Call 1-877-BUY-KOBE (289-5623); or e-mail to info@koberangehoods.com to report the problem NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE....................3 INSTALLATION .......................... 4 OPERATION INSTRUCTIONS....................9 MAINTENANCE ........................10 SPECIFICATIONS ........................11 MEASUREMENTS & DIAGRAMS .....................12 PARTS LIST ..........................14 CIRCUIT DIAGRAM ........................17 TROUBLE SHOOTING ......................14 DISCLAIMER ..........................19 WARRANTY ..........................20 PRODUCT REGISTRATION .....................22... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{D} Round Exhaust Plate with damper – 1 {E} Rectangular Exhaust Plate with damper – 1 Light bulb – 2 {G} Parametric Panel – 1 FOR MORE INFORMATION, PLEASE VISIT OUR W EBS ITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 27”... -
Page 8: Figure
Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently. -
Page 9: Screws (Provided). Refer To Figure
Figure 7 Vent option installation 1. Choose the require vent option. NOTE: If the hood is to be installed as ductless application, please do not remove any duct knockout located at the top or the back of the hood. 2. For 7” Round vent installation only: Using a flat-head screwdriver to remove the 7”... -
Page 10: Figure
Figure 12 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST PROPERLY GROUNDED. MAKE SURE THIS IS DONE SPECIALIZED ELECTRICIAN ACCORDANCE WITH APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL Figure 13 AND LOCK SERVICE PANEL TO PREVENT POWER... - Page 11 Figure 14 Final Assembly 7. To install the parametric panel: Align the parametric panel at the back of the unit. Refer to Figure 14. Push the unit upward, and slide the parametric panel forward into the notch to secure the panel. Refer to Figure 15.
-
Page 12: Operation Instructions
OPERATION INSTRUCTIONS For models equipped with Rotary Switch: To operate the fan function Turn the Speed Control clockwise to choose speed. Turn the Speed Control counterclockwise to “OFF”. To operate the light function Turn the Light Control clockwise to turn on the light. -
Page 13: Maintenance
MAINTENANCE SAFETY WARNING NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. Cleaning Hood Surface CAUTION NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE PAPER TOWEL ON STAINLESS STEEL. For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly. *** Regular care will help preserve the appearance of the hood. -
Page 14: Specifications
SPECIFICATIONS Series CHX30 Series (400-CFM) CONSUMPTION / AMPERE 0.82 Ampere VOLTAGE 120V 60Hz NUMBER OF MOTORS DESIGN 20-Gauge Seamless / Satin Finish with Glass Parametric panel or Stainless Steel Parametric panel Top 7” Round with damper EXHAUST Top 3-1/4” x 10” Rectangular with damper Rear 3-1/4”... -
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. - FOR TOP VENTING - - FOR REAR VENTING -... - Page 16 - DIMENSIONS OF THE MODEL-...
-
Page 17: Parts List
PARTS LIST For models equipped with Push Button: HOOD DESCRIPTION MODEL /SIZE PART NO. Motor Mounting Plate K-Y21-2355-P CH3030PD (30”) K-Y20-1248-Q Hood Frame CH3036PD (36”) K-Y20-1219-Q Recirculating Box K-Y36-0228 Light socket K-GF F005-00000 Push Button Control K-Y50-0087 Light Support K-Y20-1273-P CH3030PD (30”) K-Y20-1278-Q Light / Control Panel... - Page 18 For models equipped with Rotary Switch: HOOD DESCRIPTION MODEL /SIZE PART NO. Motor Mounting Plate K-Y21-2355-P CH3030RD (30”) K-Y20-1248-Q Hood Frame CH3036RD (36”) K-Y20-1219-Q Recirculating Box K-Y36-0228 Light socket K-GF F005-00000 Speed Control K-Y50-0085 Light Control K-Y50-0084 Light Support K-Y20-1273-P CH3030RD (30”) K-Y20-1249-P Light / Control Panel...
- Page 19 For models equipped with Slide Switch: HOOD DESCRIPTION MODEL /SIZE PART NO. Motor Mounting Plate K-Y21-2355-P CH3030SD (30”) K-Y20-1248-Q Hood Frame CH3036SD (36”) K-Y20-1219-Q Recirculating Box K-Y36-0228 Light socket K-GF F005-00000 Light Support K-Y20-1273-P CH3030SD (30”) K-Y20-1296-Q Light / Control Panel CH3036SD (36”) K-Y20-1297-Q Light fixture...
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM For models equipped with Push Control: For models equipped with Rotary Switch: For models equipped with Slide Switch:... -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution Make sure the circuit breaker and the unit’s power is After Installation, The power is not on. both motors and ON. Use a voltage meter to check the power supply. lights are not The wire connection is not secure. Check and tighten wire connection. -
Page 22: Disclaimer
2. PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING! We must be notified in writing of any damages and/or missing parts within the allocated days upon your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE for the time limit. -
Page 23: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/ BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 24 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 25: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please... - Page 26 Arcadia, CA 91006 USA www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
