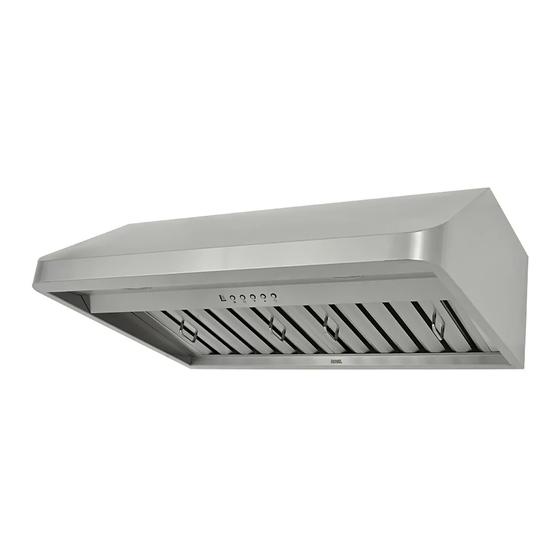

KOBE Brand Range Hood
Model No.
CH9130SQB-1 (30") / CH9136SQB-1 (36")
CH9142SQB-1 (42") / CH9148SQB-1 (48")
CH7730SQB-1 (30") / CH7736SQB-1 (36")
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH9136SQB-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE CH9136SQB-1

Summary of Contents for KOBE CH9136SQB-1

  • Page 1 KOBE Brand Range Hood Model No. CH9130SQB-1 (30”) / CH9136SQB-1 (36”) CH9142SQB-1 (42”) / CH9148SQB-1 (48”) CH7730SQB-1 (30”) / CH7736SQB-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
  • Page 2 2. Have your original invoice as proof of purchase and product serial number ready. 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED ...

  • Page 3: Table Of Contents

    [ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1  COMPONENTS OF PACKAGE ....................3  INSTALLATION ..........................5  OPERATING INSTRUCTIONS ....................14  MAINTENANCE .......................... 16  SPECIFICATIONS ........................17  MEASUREMENTS & DIAGRAMS ....................18  PARTS LIST ..........................21  CIRCUIT DIAGRAM ........................

  • Page 4: Important Safety Instructions

    KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
  • Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

  • Page 6: Components Of Package

    {I} Stainless Steel Spacer x 2 3/16” x 3/8” (6 PCS) 2 PCS 4 x 6mm (4 PCS) Handle is included with baffle filter  FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
  • Page 7 {I} Stainless Steel Spacer x 2 3/16” x 3/8” (6 PCS) 2 PCS 4 x 6mm (4 PCS) Handle is included with baffle filter  FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.

  • Page 8: Installation

    INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to Hood Bottom (Minimum...

  • Page 9: Safety Warning

    SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER THE CABINET WALL MOUNT...

  • Page 10: Under Cabinet Installation

    UNDER CABINET INSTALLATION Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short vent run will allow the hood to perform more efficiently.
  • Page 11 Align and secure Top Vent Cover {E} and 3-1/4” x Figure 5 10” Vent Cover (removed from rear exhaust) using 14 screws (13 screws taken from 6” exhaust. (Figure 5) Attach the 3-1/4” x 10” Exhaust {D} to rear exhaust (located inside hood) using 10 screws taken from rear vent cover.
  • Page 12 Figure 7 Ductwork Installation 10. Use steel pipe to connect the exhaust on the hood to the ductwork. Use duct tape to make all joints secure and air tight. Install Accessories 11. Install the Oil Tunnel {G} into recess support near rear of hood.

  • Page 13: Wall Mount Installation

    WALL MOUNT INSTALLATION ***This installation requires purchase of duct cover Model No. CH1120DC-1. Figure 9 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside.
  • Page 14 4. For Rear 3-1/4” x 10” vent installation only: Figure 13 Remove attached 6” exhaust and discard. (Figure 11) Keep 13 screws to install vent covers. Remove duct knockout from back of the hood and discard. (Figure 13) Unscrew 3-1/4” x 10” Vent Cover from rear exhaust (located inside hood);...
  • Page 15 Wiring to Power Supply Figure 17 CAUTION If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. RISK OF ELECTRICAL SHOCK.
  • Page 16 Figure 19 Install Accessories 15. Install the Oil Tunnel {G} into recess support near rear of hood. Refer to Figure 19. 16. Install Baffle Filters {H} and Stainless Steel Spacers {I}.  Angle baffle filter toward back of hood.  Push the baffle filter up until almost level.

  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.Press button to increase the speed level.
  • Page 18 appear in the LED Display. The icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold button until icon no longer appears in the LED Display. NOTE: Pressing button while ECO Mode is active will activate the regular fan function and the speed will be displayed in LED Display.

  • Page 19: Maintenance

    MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2.

  • Page 20: Specifications

    CH9130SQB-1: 29-3/4” x 22” x 9-1/16” CH7730SQB-1: 29-3/4” x 22” x 10” (W x D x H) CH9136SQB-1: 35-3/4” x 22” x 9-1/16” CH7736SQB-1: 35-3/4” x 22” x 10” CH9142SQB-1: 41-3/4” x 22” x 9-1/16” CH9148SQB-1: 47-3/4” x 22” x 9-1/16”...

  • Page 21: Measurements & Diagrams

    MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: CH9130SQB-1 (30”) CH9136SQB-1 (36”) CH9142SQB-1 (42”) CH9148SQB-1 (48”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A"...
  • Page 22 MODEL NO.: CH7730SQB-1 (30”) CH7736SQB-1 (36”) -FOR UNDER THE CABINET- 30" = Knockout Holes "A" 36" = Knockout Holes "A" & "B" - FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -...
  • Page 23 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket ***Duct Cover Support...

  • Page 24: Parts List

    PARTS LIST   MODEL NO.: CH9130SQB-1 CH9136SQB-1 DESCRIPTION MODEL /SIZE PART NO. 6” Exhaust Plate L1-0241-0001A Vent Cover (Top) L1-0241-0001B L1-0241-0002BH 2-3/4” x9-3/4” Exhaust Plate 3-3/4” x11-1/4” Vent Cover L1-0241-0002A L1-0505-0003 6” Round Plastic Exhaust CH9130SQB-1 10-9130B Hood Casing CH9136SQB-1...
  • Page 25 MODEL NO.: CH9130SQB-1 CH9136SQB-1 DUCT COVER CH9130SQB-1 、CH-9136SQB-1...
  • Page 26 PARTS LIST   MODEL NO.: CH9142SQB-1 CH9148SQB-1 DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001B 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002BH L1-0241-0002A 3-3/4” x11-1/4” Vent Cover 6” Round Plastic Exhaust L1-0505-0003 CH9142SQB-1 10-9142B Hood Casing CH9148SQB-1 10-9148B LED Light (3W) L1-0403-0301...
  • Page 27 MODEL NO.: CH9142SQB-1 CH9148SQB-1 DUCT COVER CH9142SQB-1、CH9148SQB-1...
  • Page 28 PARTS LIST   MODEL NO.: CH7730SQB-1 CH7736SQB-1 DESCRIPTION MODEL /SIZE PART NO. L1-0241-0001A 6” Exhaust Plate Vent Cover (Top) L1-0241-0001B 2-3/4” x9-3/4” Exhaust Plate L1-0241-0002BH L1-0241-0002A 3-3/4” x11-1/4” Vent Cover 6” Round Plastic Exhaust L1-0505-0003 CH7730SQB-1 10-7730B Hood Casing CH7736SQB-1 10-7736B LED Light (3W) L1-0403-0301...
  • Page 29 MODEL NO.: CH7730SQB-1 CH7736SQB-1 DUCT COVER CH7730SQB-1 、 、 、 、 CH7736SQB-1...

  • Page 30: Circuit Diagram

    CIRCUIT DIAGRAM MODEL NO.: CH9130SQB-1 (30”) CH9136SQB-1 (36”) CH7730SQB-1 (30”) CH7736SQB-1 (36”)
  • Page 31 MODEL NO.: CH9142SQB-1 (42”) CH9148SQB-1 (48”)

  • Page 32: Trouble Shooting

    TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection.

  • Page 33: Warranty

    TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM/BRILLIA SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects.
  • Page 34 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)

  • Page 35: Product Registration

    1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please...
  • Page 36 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
