Pro-Form PFIVEL81412.0 User Manual page 7

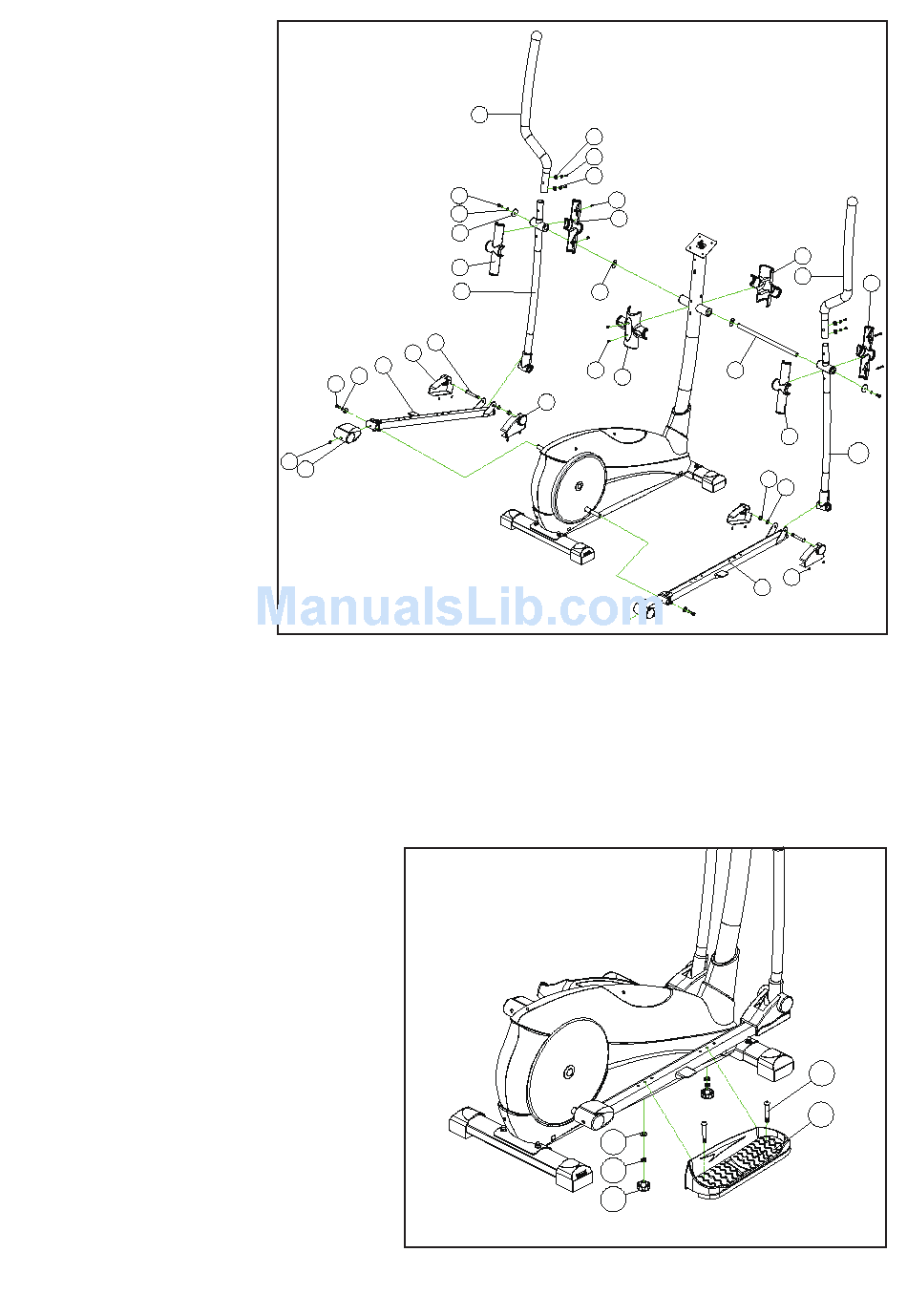

STEP 3
I. Slide the lower swing
bar Left and Right (21) onto
the Center Shaft (27) and
secure using 2 coated Allen
Bolts (17), 2 wave washers
(13), 2 spring pad (15) and
2 black washers (18) tighten
fully.
II. Fit the upper swing
bar Left and Right (12) by
slotting them into the top
of the lower swing bar Left
and Right (21) and secure
in place using 4 Allen bolts
(14) and 4 wave washers
(15) and 4 spring pads (15),
tighten fully. Connect the
Handle pulse cable Left and
Right (4) with Hand Pulse
Plate (2).
III. Fasten footplate sup-
port bars (36R+L) from the
crank (85) with coated Allen
bolts (35), spring washers
(40) and flat washers (15).
Secure the plastic cover (33) onto footplate support bar with screw (34).
IV. Fasten footplate support bars (36R+L) to the lower swing bars (21R+L) with Allen bolts (35) and se-
cure it with washers (40) and nylon lock nuts (76). Then put the plastic cover (33) onto footplate support bar
left and right with 8 screws (34)
STEP 4
Fasten right footplate (43R) with carriage bolts
(42) from the right footplate support bar (36R)
and secure it with washers (78), spring pads
(79) and knobs (80) tightly. Do the same for
the left pedal.
