the switch. Both the front and rear panels are shown,
followed by a description of each panel feature. The indicator
panel is described in detail in the next chapter.

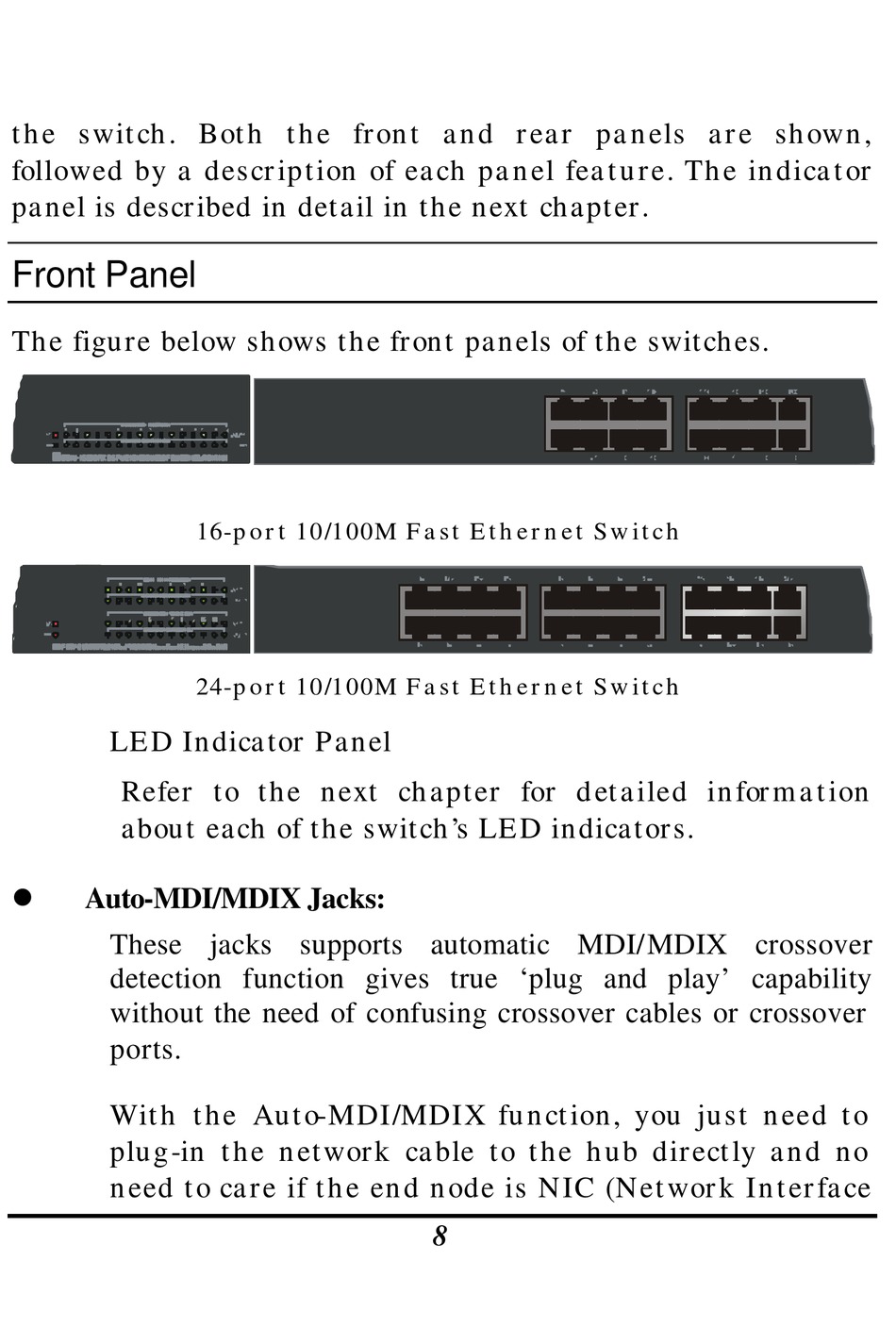

Front Panel

The figure below shows the front panels of the switches.
LED Indicator Panel
Refer to the next chapter for detailed information
about each of the switch's LED indicators.
l
Auto-MDI/MDIX Jacks:
These jacks supports automatic MDI/MDIX crossover
detection function gives true 'plug and play' capability
without the need of confusing crossover cables or crossover
ports.
With the Auto-MDI/MDIX function, you just need to
plug-in the network cable to the hub directly and no
need to care if the end node is NIC (Network Interface
16-port 10/100M Fast Ethernet Switch
24-port 10/100M Fast Ethernet Switch
8
