The standard RJ-45 receptacle/connector

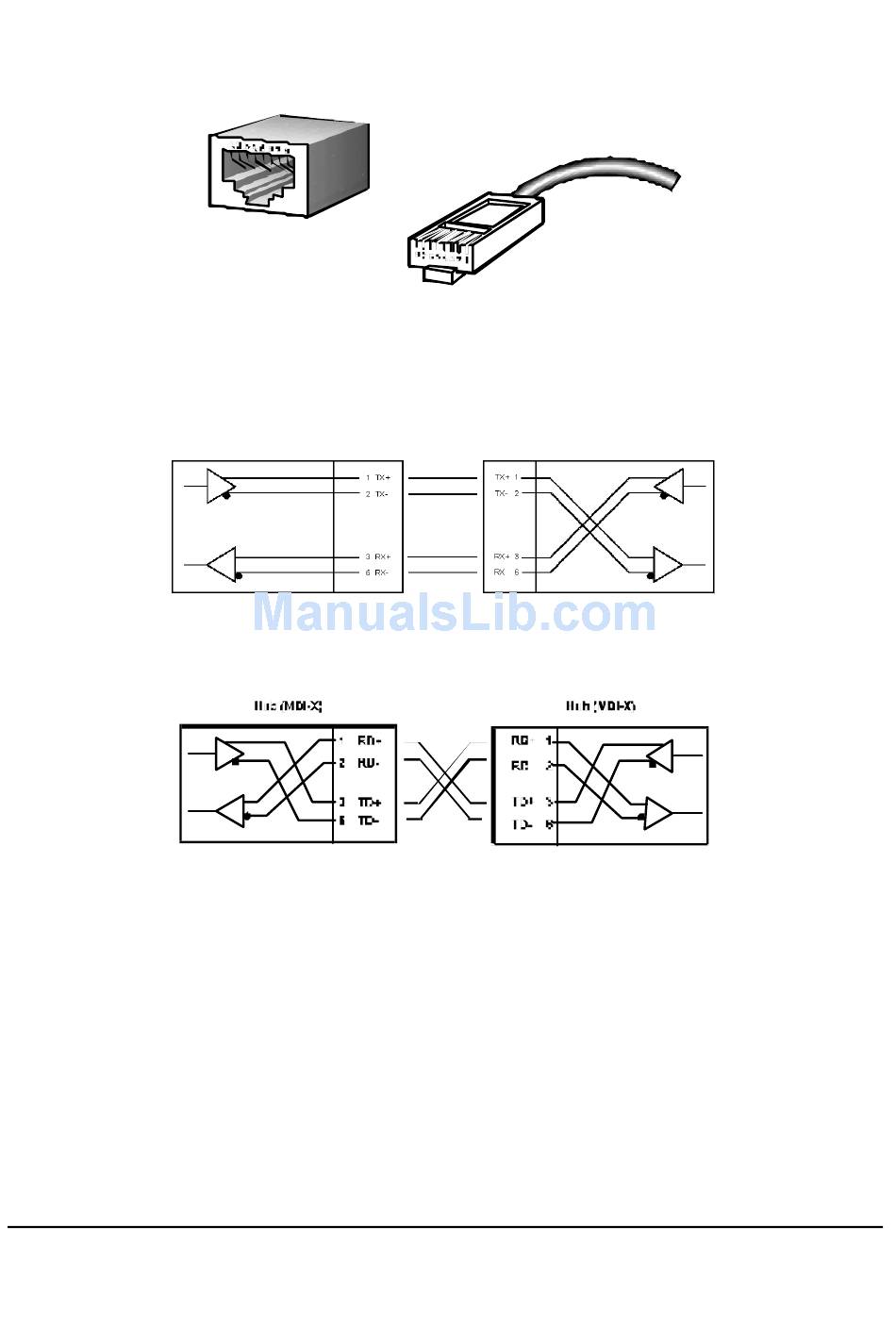

The following shows straight cable and crossover cable

connection:

Straight cable for Switch (uplink MDI-II port) to switch/Hub

or other devices connection

Crossover cable for Switch (MDI-X port) to switch/hub or

other network devices (MDI-X port) connection
