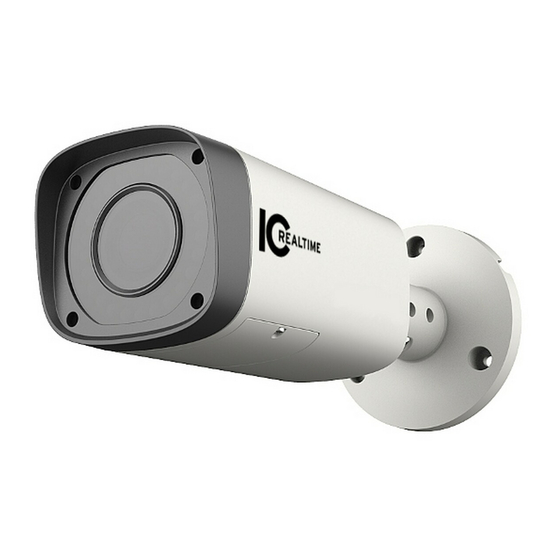

- Page 1 HDAVS IR Motorized Vari-focal Fixed Camera User’s Manual Version 1.0.1...
-
Page 2: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Functions ........................1 Framework and Dimensions ..................... 3 Dimensions ........................3 Structure ........................3 Installation............................ 4 Menu ............................. 6 HDAVS Series DVR Settings ..................6 Note ..........................7 Appendix Toxic or Hazardous Materials or Elements .............. - Page 3 Welcome Thank you for purchasing our HDAVS camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. - Page 5 Please shut down the device and then unplug the power cable before you begin daily maintenance work. Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CMOS component when you do not use the camera.
- Page 6 Applicable model This manual can be applied to following model: AVS-B2218Z...
-
Page 7: General Introduction
1 General Introduction 1.1 Overview This series megapixel HD camera conforms to the HDAVS standard. It supports video signal high-speed long distance transmission without any delay. It can be controlled by the DVR conforming to the HDAVS. 1.2 Features High-performance CMOS image sensor, megapixel definition. - Page 8 Smart IR technology The sensor controls the IR light on/off via the combination work of the hardware and software, which realizes the automatically IR light compensation according to the environment illumination. 3D NR Comparing with the general 2D denoise function, the 3D denoise function can not only denoise the brightness of the video separation signal and saturation signal, it can also denoise the original data from CCD.
-
Page 9: Framework And Dimensions
2 Framework and Dimensions 2.1 Dimensions Please refer to the following figure for dimension information. The unit is mm. See Figure 2-1. Figure 2-1 2.2 Structure Please refer to the following figure for structure information. See Figure 2-2 . Figure 2-2 When the standard definition/high definition switch control cable is short circuit, system outputs standard definition video. -
Page 10: Installation
3 Installation Important Before the installation, please make sure the installation surface can sustain at least 3X weight of the bracket and the camera. Please refer to the Figure 3-1 for the chassis hole site of camera bracket Figure 3-1 Please refer to the steps listed below for installation information, see Figure 3-2 and 3-3. - Page 11 Step 1 Before you install the bracket, please pull the cable through the cable exit of the bracket chassis. Please install the expansion bolt if you want to install in the cement wall (Please make sure the installation holes of the expansion bolts are the same with the bracket.) Then you can install the bracket.
-
Page 12: Menu
4 Menu 4.1 HDAVS Series DVR Settings Note The following operation and interfaces for reference only. Please refer to the HDAVS series DVR user’s manual for detailed information. After connected the camera to the HDAVS series DVR, from Main Menu->Setting->System- >PTZ, you need to set control mode as HDAVS and the protocol as DH-SD1. -
Page 13: Note
Click Iris “-” to realize auto focus. Click up/down button to view all the items on the left pane of the following list. Click left/right button to set the corresponding values on the right pane of the following list. If there is “ ”, click confirm button to go to the 2nd menu. -
Page 14: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device ○ ○ ○ ○ ○ ○ Construction Material ○ ○ ○ ○ ○...
