Summary of Contents for ICRealtime AVS-4MB4012-IR

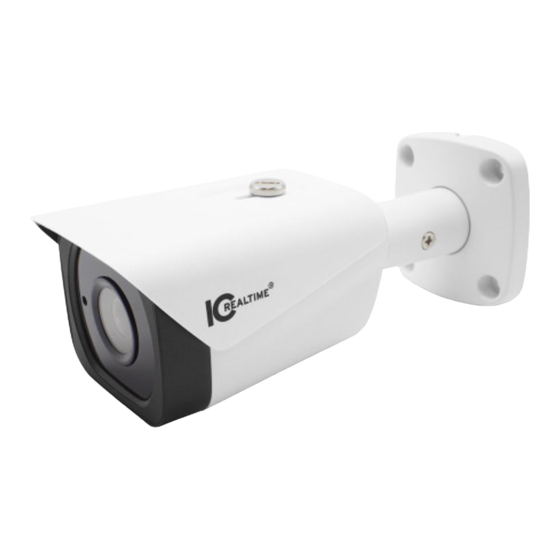

- Page 1 HDAVS Camera User’s Manual Version 1.0.0...
-
Page 2: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Framework and Dimensions ..................... 2 Installation............................ 3 Menu ............................. 5 HAVR Settings ......................5 4.1.1 Control Coaxial Device ..................5 Menu Operation ......................5 Appendix Maintenance ........................7 Welcome Thank you for purchasing our HDAVS camera! This user’s manual is designed to be a reference tool for your system. - Page 3 Please keep this user’s manual well for future reference! Important Safeguards and Warnings Electrical safety • All installation and operation here should conform to your local electrical safety codes. • The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated DC 12V or AC24V in the IEC60950-1.
- Page 4 • The company is not liable for any loss caused by the operation which is not followed by the manual. • Please refer to the company’s final explanation if there is any doubt or dispute.
-
Page 5: General Introduction
General Introduction 1.1 Overview This series megapixel HD camera conforms to the HDAVS standard. It supports video signal high-speed long distance transmission without any delay. It can be controlled by the HAVR conforming to the HDAVS 1.2 Features High-performance CMOS image sensor, megapixel definition. ... -
Page 6: Framework And Dimensions
Framework and Dimensions See Figure 2-1 for the dimension of model A. The unit is mm. Figure 2-1 See Figure 2-2 for the cable. The unit is mm. -
Page 7: Installation
Installation Important Please install the device in time after it is taken apart, which is to avoid the camera module being exposed to damp environment for too long. Before the installation, please make sure the installation surface should be thick enough to sustain at least 3X weight of the camera. - Page 8 Figure 3-2...
-
Page 9: Menu
Menu 4.1 HAVR Settings 4.1.1 Control Coaxial Device This HDAVS camera series can adjust OSD menu via coaxial control. After connected the camera to the HDAVS series HAVR, from Main Menu->Setting->System->PTZ, you need to select the channel number for access and set control mode as HDAVS and the protocol as HD-AVS. - Page 10 Figure 4-3 See Sheet 4-1 for the details of button functions. Button Function Open menu Select menu item 、 Select menu value 、 Adjust lens zoom and auto trigger focus Note: Adjust lens focus Some of the buttons can only be applied for the motorized Auto focus under current vari-focal camera.
-
Page 11: Appendix Maintenance
Appendix Maintenance Attention: Please maintain the device according to the following instructions in order to ensure the image effect and long-term stable operation of the device. Maintenance for lens and mirror surface The lens and mirror surface are covered with antireflection coating, so it may produce hazardous substance and lead to performance reduction or scratch, dimness etc when it is stained with dust, grease, fingerprint and so on, please refer to the following methods to deal with once dirt is found:... - Page 12 Note • This manual is for reference only. Slight difference may be found in the user interface. • All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners.
